36
ASSEMBLY

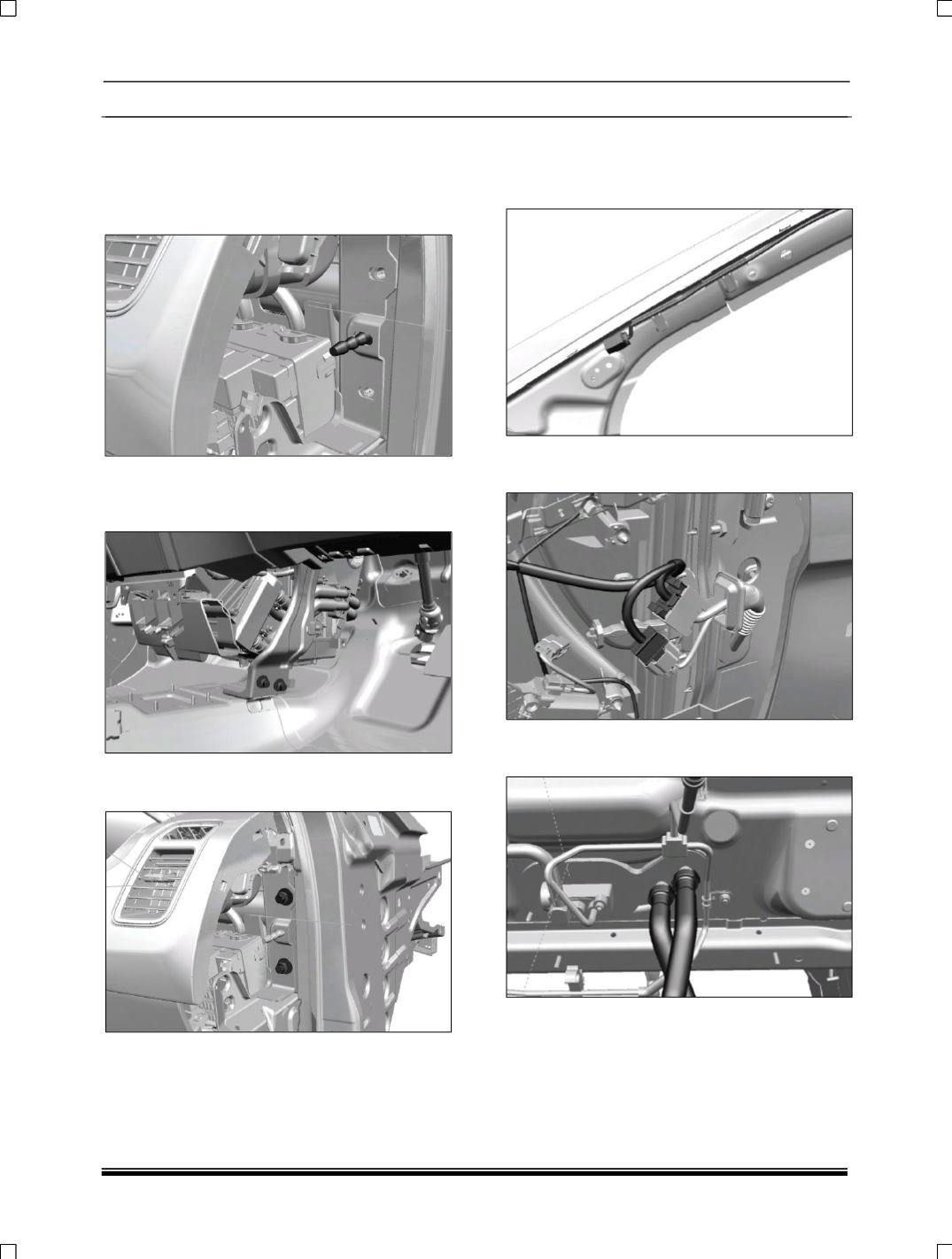

1. Assemble dashboard along with HVAC/FATC
and steering.
2. Assembly place on the two locaters on LH
and RH as shown in fig.
3. Connect all wiring harness and earthing
connections.
4. Tighten trailing link bottom fixing screw.
5. By using battery tool tighten the fasteners on
LH and RH side as shown in fig.
6. Connect steering column.
7. Connect roof lamp connection.
8. Press fit the end cover RH and LH.
9.9.15 WIRE HARNESS SERVICING
REMOVAL
1. Remove wire harness connection on a pillar.
2. Remove door and main wire harness
connections on both sides
3. Remove the heater tube connections, drain
tube connections.
