9.8.7 REMOVEL AND REFITMANT OF FRONT
WIPER
1. Lift the bonnet and fix it in the stay rod
2. Remove the Windshield side trim LH and RH.
3. Remove trim clip of plenum windscreen trim.
4. Unscrew the wiper blade mounting fastener
as shown in fig and remove.
5. Insert the screw driver in the slot provided on
snaps fit and then remove the snaps and the
wiper cover (plenum windscreen trim).

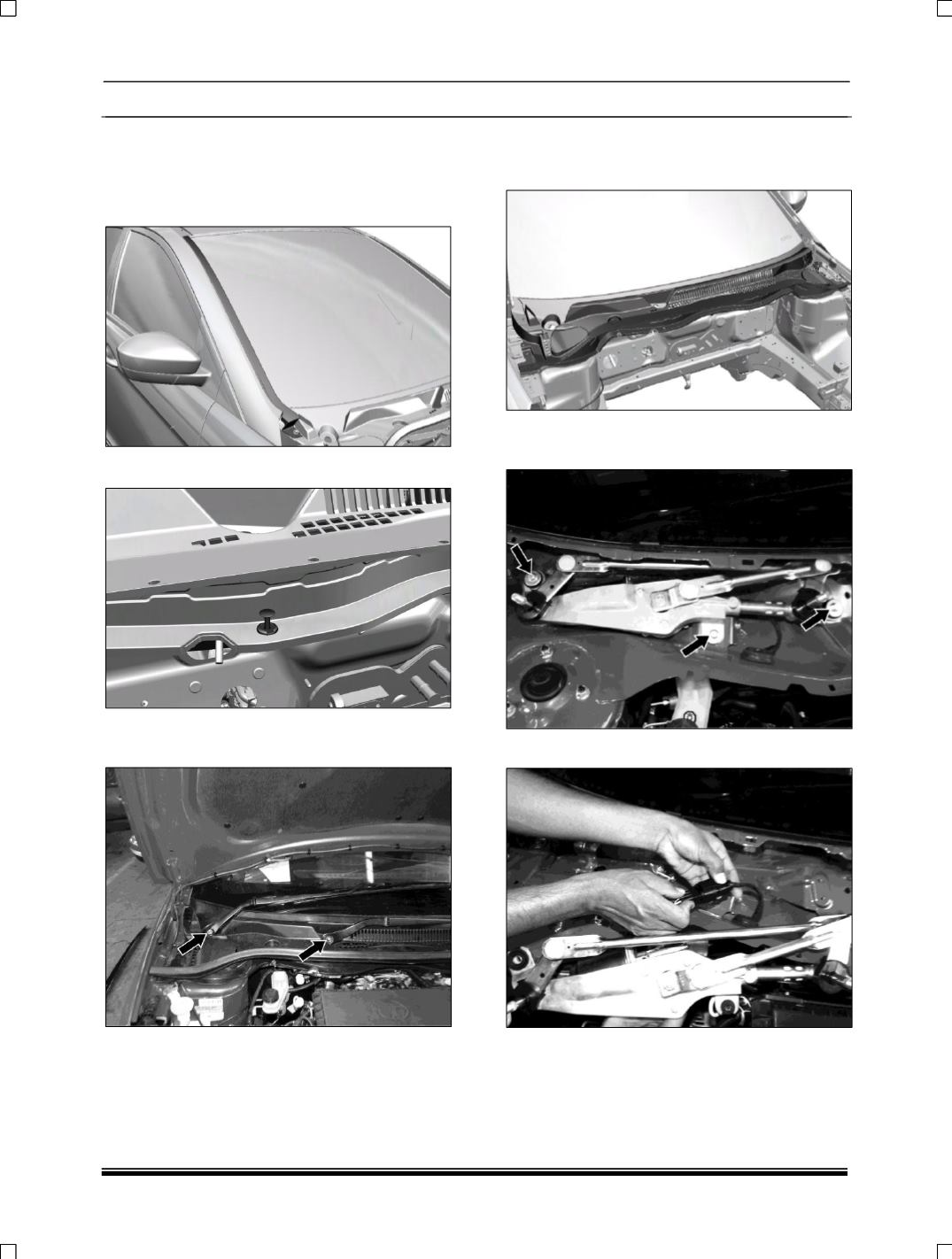

6. Unscrew the three mountings of wiper motor
linkage as shown in fig
7. Remove the wire harness connection.
8. Remove motion assembly.
