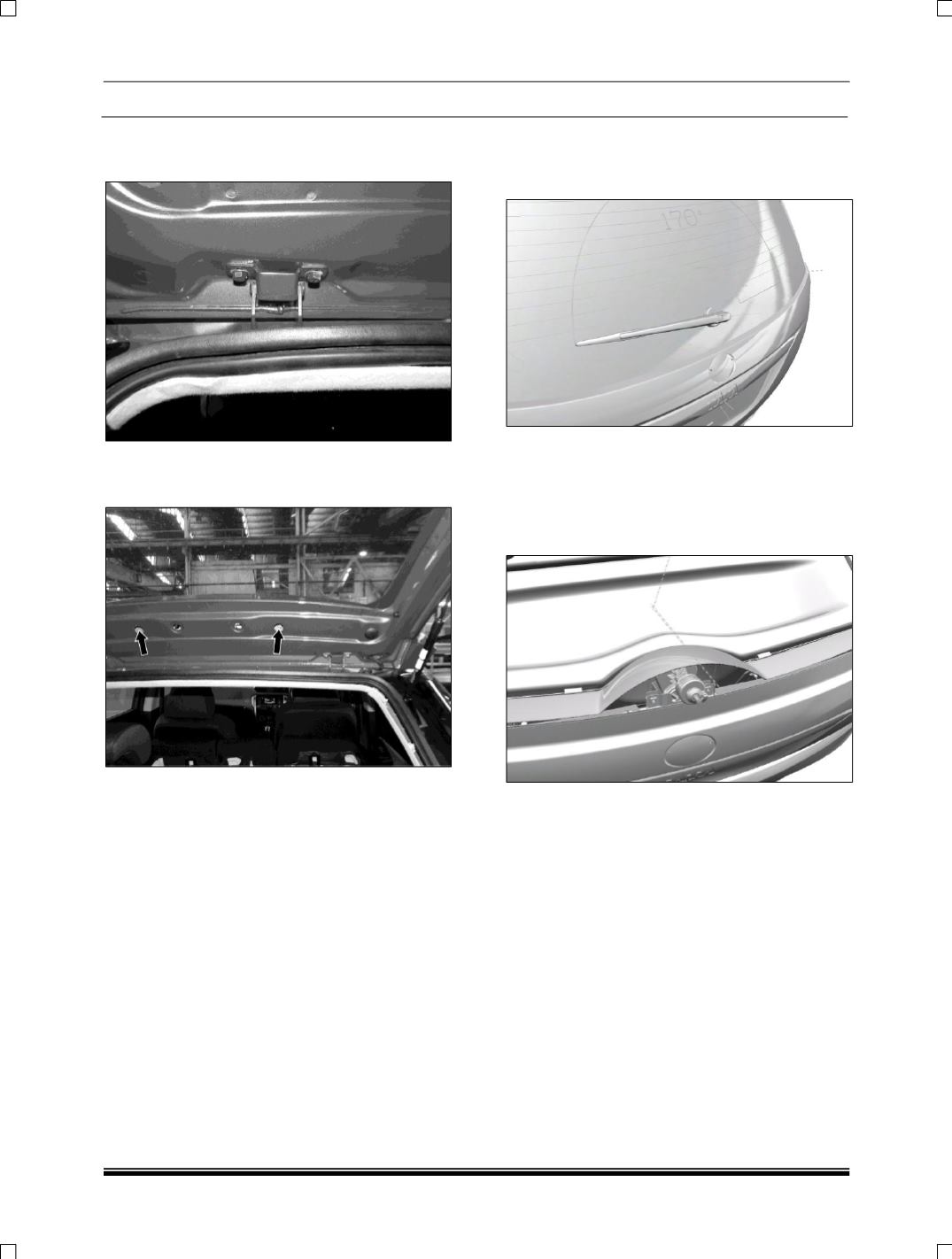

9.8.5 REMOVAL OF SPOILER:
1. Remove bolt from tailgate hinge.
2. Remove all electric connections.
3. Remove two nut of spoiler.
4. Remove the high mounted lamp if required.
REFITMENT OF SPOILER:
Follow reverse procedure to refit the spoiler.
9.8.6 REMOVAL OF REAR WIPER MOTOR:
1. Loosen rear wiper blade fastener and
remove rear wiper blade.
2. Remove tail gate trim. Refer “R+R Tailgate
Trim”
3. Disconnect wiper motor connector.
4. Loosen wiper motor fastener to remove wiper
motor.
REFITMENT OF REAR WIPER MOTOR:
1. Reconnect wiper motor connector.
2. Refit wiper motor by tightening its fasteners.
3. Refit wiper motor blade
