Revotron 1.2T
111

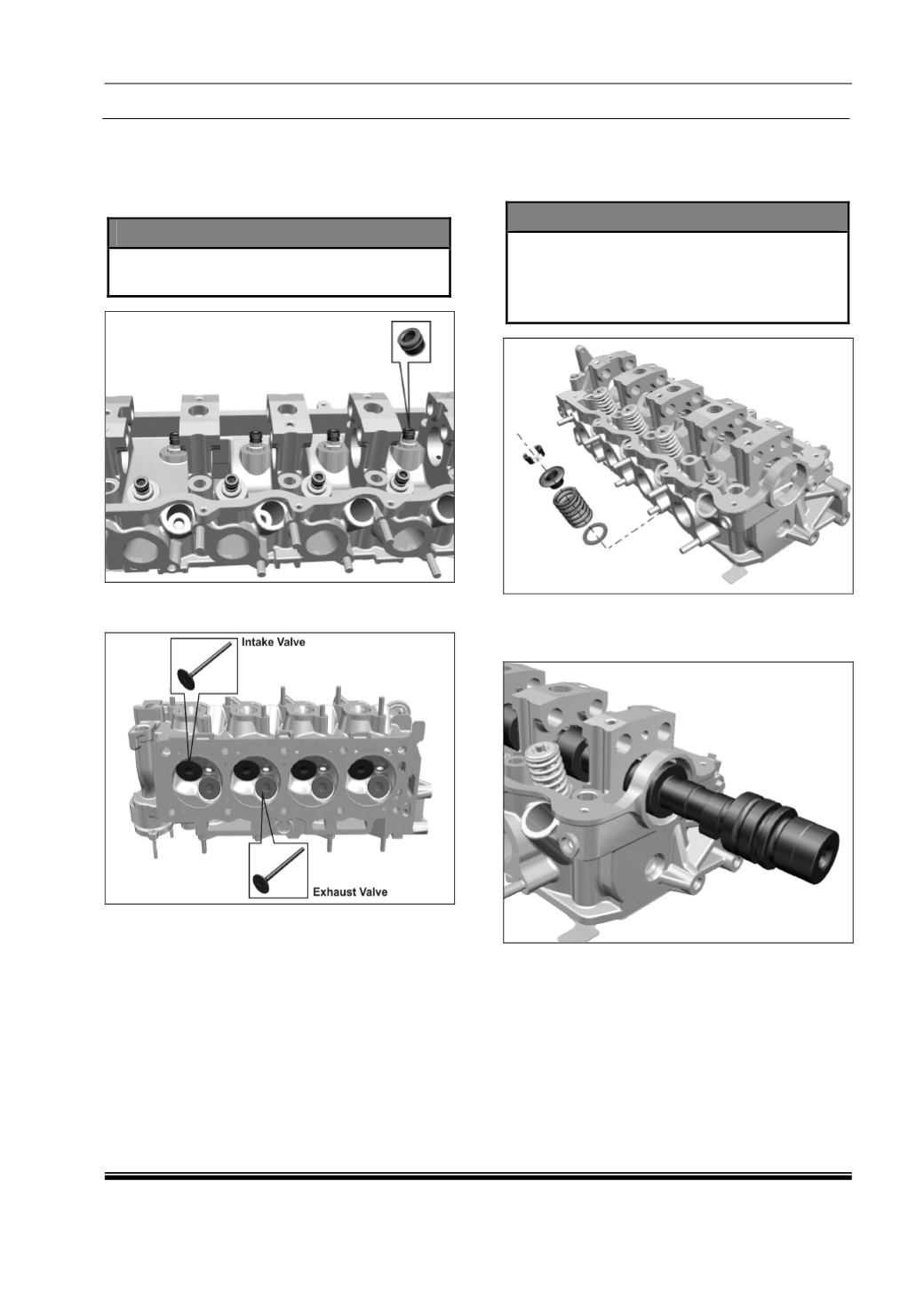

B. Engine Assembly :
i. Fitment of Cylinder Head Sub-Assemblies
1. Fit the valve guide seal with the help of special
tool.
SPECIAL TOOL
•
Valve Guide Seal Fitment -
2702 5890 06 17
2. Fit inlet and exhaust valve from bottom side.
3. Lubricate the valve stem and guide.
4. Fit the valve seats, valve retainers and using
special tool compress the valve springs and
place the spring lock halves.
5. The lock halves hold the spring retainer in
place when relieving pressure applied by the
spring compressor.
6. Repeat the same procedure for all valves.
SPECIAL TOOL
•
Valve Spring Compression Tool -
2702 5890 06 15
•
Valve Spring Compressor Support Rail -
2702 5890 06 16
7. Lubricate the camshaft journals.
8. Carefully install the camshaft into the cylinder
head.
