Revotron 1.2T
105

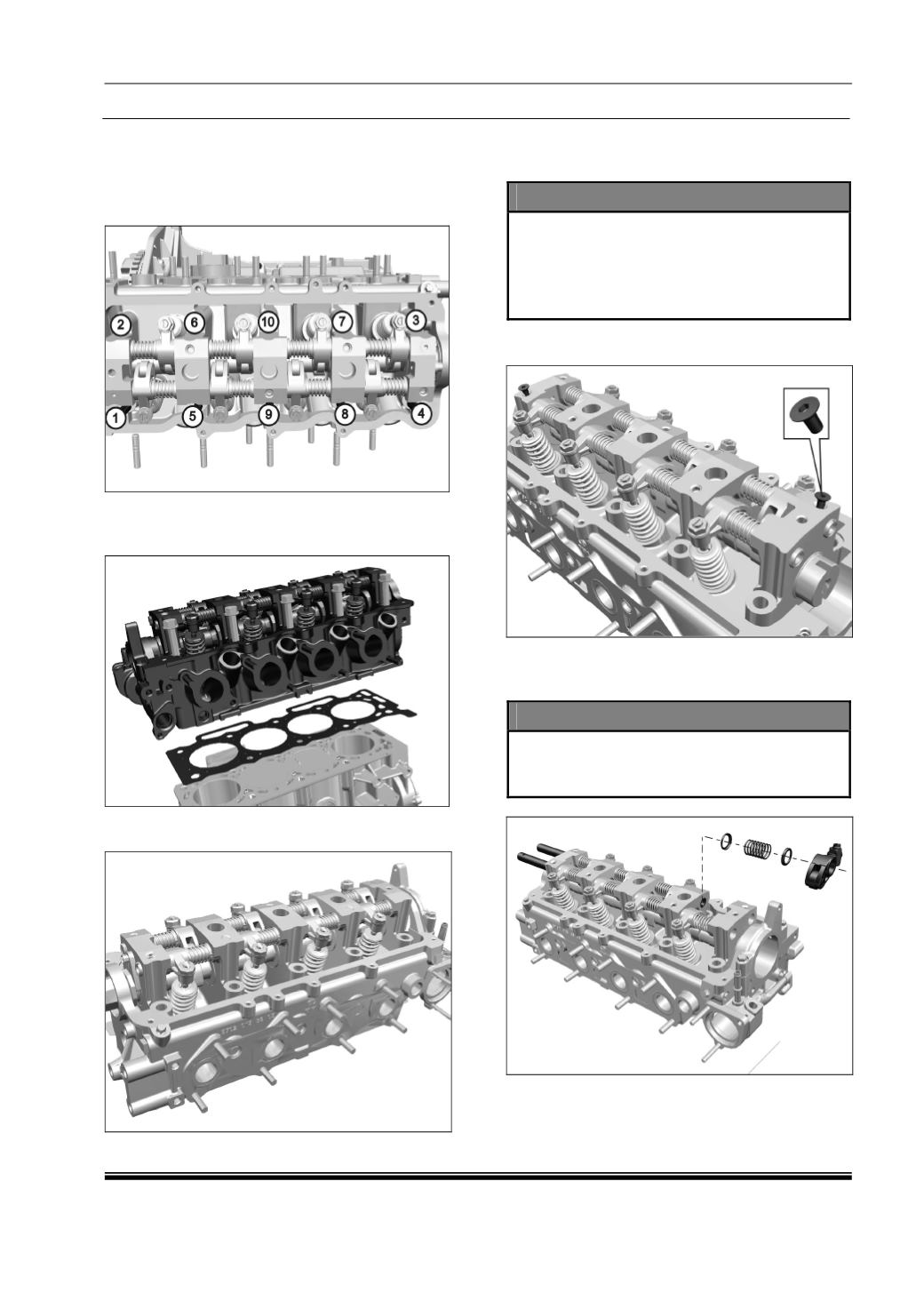

3. Remove the Cylinder Head attaching bolts
along with the washers, starting from the ends
of the cylinder head and working inwards to
the center. (Refer the loosening sequence)
4. To dislocate cylinder head, use a soft mallet
or dead-blow hammer to break the head free
from the block, if necessary.
5. Place the cylinder head on the dismantling
table.
vii. Removal of Cylinder Head Sub-
Assemblies
NOTE
•
Gently unscrew the tappet setting screw to
relieve the spring load, before dismantling
the rocker shaft.
•
To avoid damage to valve tips, do not
rotate the camshaft.
1. Remove the Rocker Shaft Holder Screw, from
the camshaft bearing block.
2. Carefully drive the rocker shafts out of the
cylinder head using a suitable hammer and
drift.
NOTE
•
When removing the rocker shafts, collect
the rocker arms, springs, and seats, noting
the specific location of each component.
