Revotron 1.2T
119

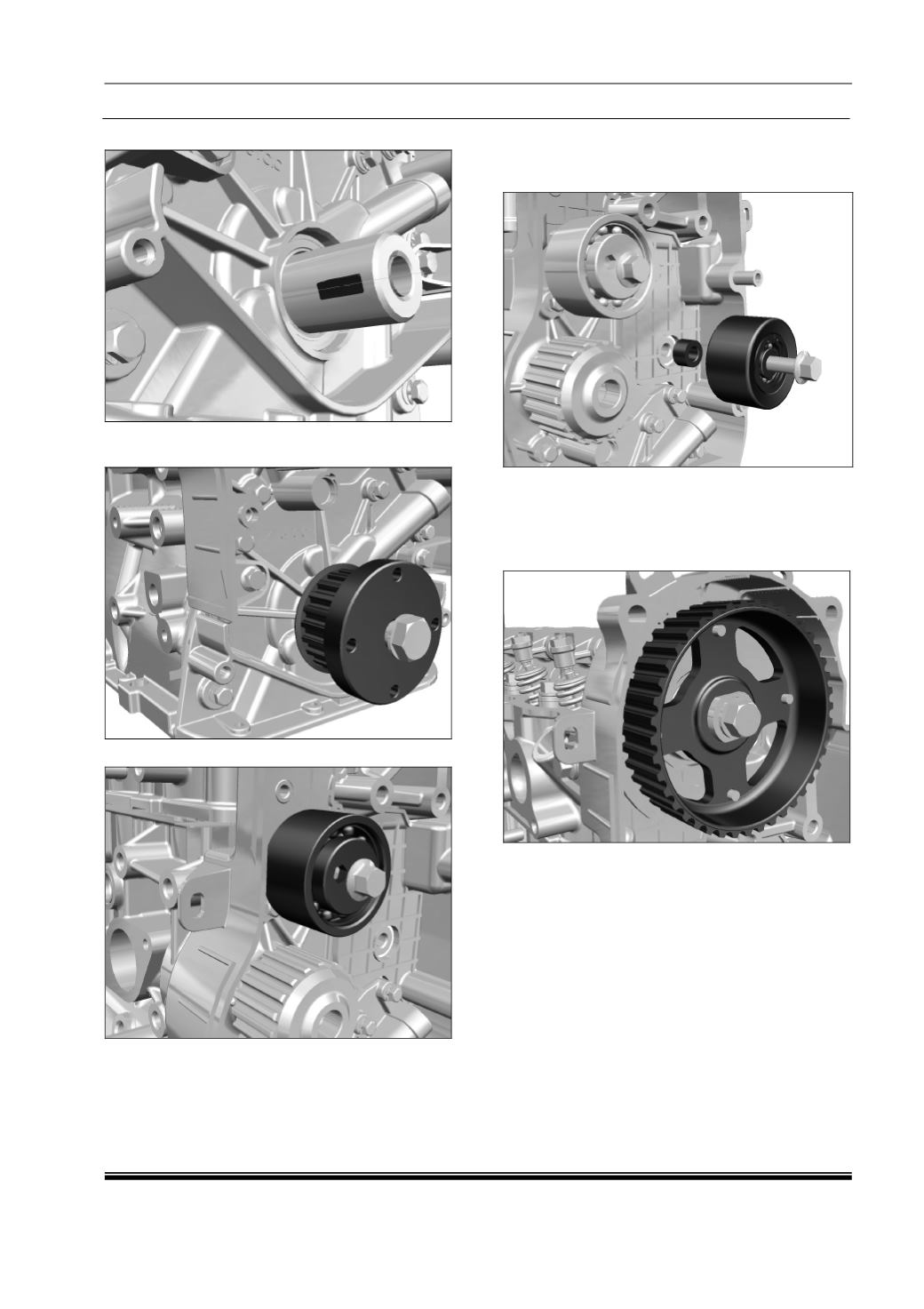

11. Place woodruff key.
12. Fit crankshaft gear with the spacer and torque
the bolt at specified torque.
13. Fit belt tensioner to the engine block.
14. Fit the Idler & spacer from the gear train
assembly and torque the bolt to specified
torque.
15. Fit Camshaft Gear along with Camshaft Gear
Sensor Plate.
16. Securing the cam gear bolt is hand tight and
cam gear rotates on the camshaft with some
resistance.
17. Loosen the adjusters on the rocker arm so the
bottom of the adjusting screw is just riding on
the tips of the valves. Tighten the screw
adjuster lock nuts.
