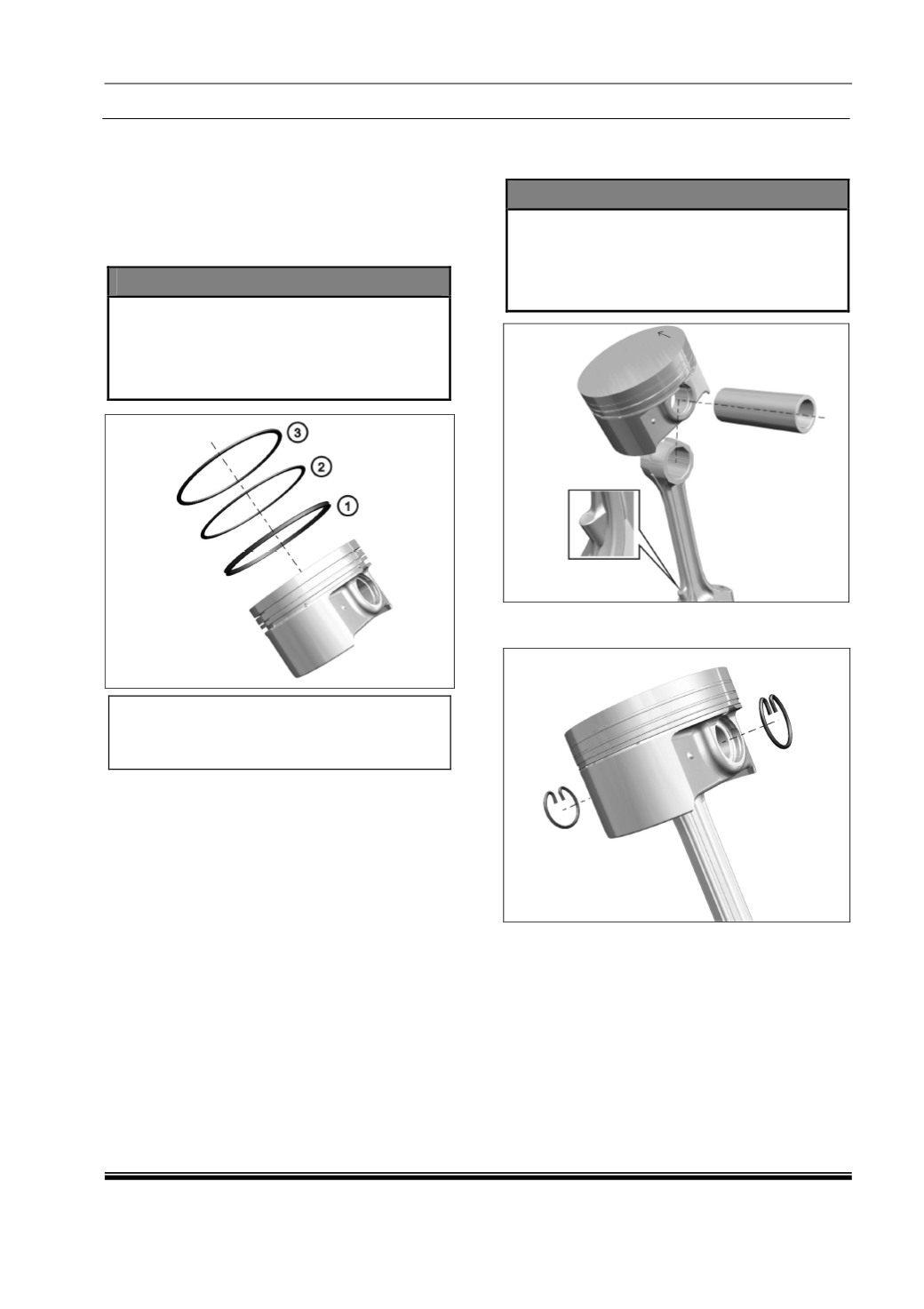

ii. Fitment of Piston and Connecting rod Sub-
Assemblies
1. Starting with oil rings, install the taper faced
rings and top rings using ring expander as per
illustrated in fig.
2. Ensure the top mark on the top ring should be
on top facing piston crown.
CAUTION
The piston ring gap should not be inline
with each other while assembling on
piston.
Place the piston rings on the piston, such
that the ring gaps are 120
0
apart.
1. Oil Ring.
2. Taper Faced Ring.
3. Top Ring.
3. Place the bearing shells of connecting rod
assembly.
4. Lubricate the gudgeon pin and small end
before assembly.
5. Place the gudgeon pin to the small end of
connecting rod to assemble connecting rod in
piston assembly.
NOTE
Ensure that the arrow mark on the piston
crown is facing the left of technician and
connecting rod notch is on the opposite
side of arrow mark while assembling the
piston connecting rod assembly.
6. Using suitable pliers, place piston pin round
wire circlip.
7. Ensure the connecting rod are properly placed
after assembly matching with connecting rod
caps separately.
