Revotron 1.2T
121

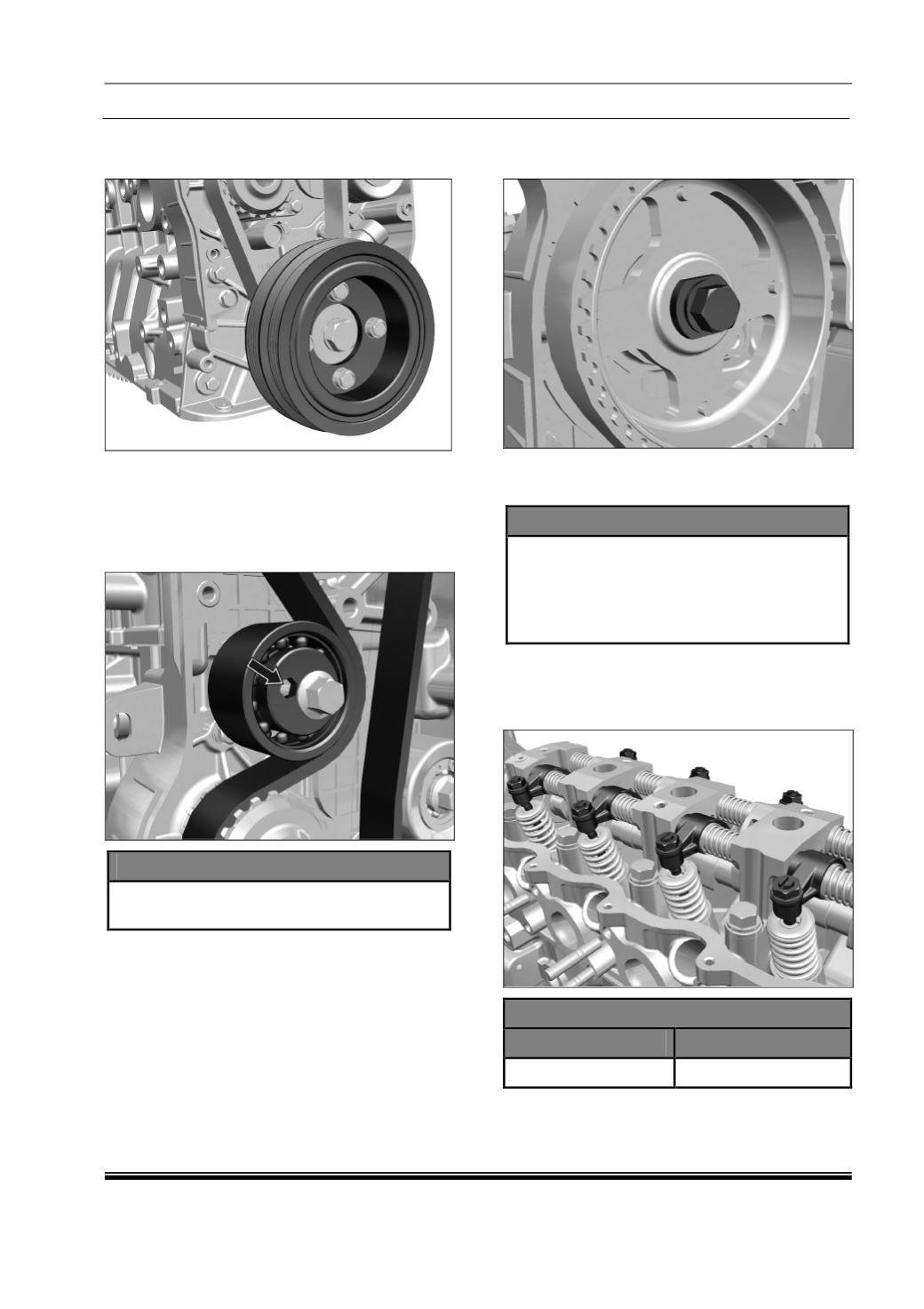

24. Fit vibration damper pulley and tighten the
bolts at specified torque.
25. Adjust the timing belt tension by using a Allen
key, rotate the timing belt tensioner clockwise
to apply tension to the belt.
26. While maintaining the belt tensioner position,
tighten the bolt securing the belt tensioner to
the engine block.
NOTE
•
Do not allow the tensioner to over-rotate
and place too much tension on the belt.
27. Torque the bolt, securing the camshaft gear to
camshaft.
28. Measure the tension of the belt by using
Clavis Meter.
NOTE
•
Tension of the bolt should be within the
specified limit.
•
If tension of the belt is not within the
specified limit then repeat the procedure
from Step-23 to Step-26
29. Set the valve tappet clearance on the inlet
valve rocker arms for cylinder 1 and 2 and
exhaust valves rocker arms for cylinder
1 and 3.
VALVE CLEARANCE SETTINGS
INTAKE
EXHAUST
0.20 mm
0.30 mm
30. Remove camshaft and flywheel locking pins.
