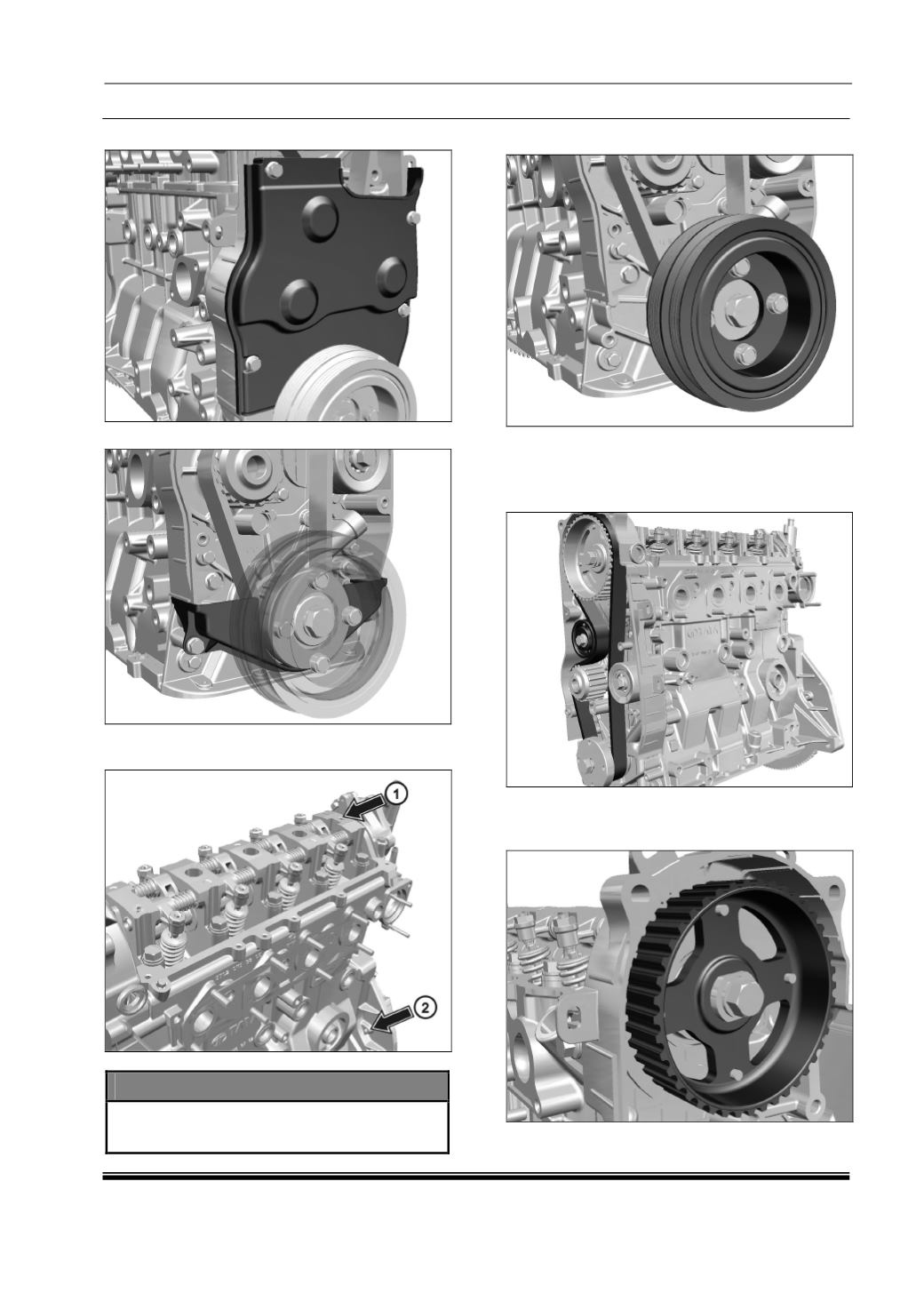

4. Remove Timing Cover Front.
5. Remove Timing Cover Front Lower.
6. Now lock the Flywheel & Camshaft with the
help of the Locking Pins.
SPECIAL TOOL
1. Camshaft Locking Pin - 2702 5890 06 04.
2. Flywheel Locking Pin - 2702 5890 06 05.
7. Remove Vibration Damper Pulley.
8. Release tension of Timing belt by loosening
tension of mounting bolt.
9. Remove the Timing belt from the gear train
assembly.
10. Ensuring Camshaft in lock condition, remove
Camshaft Gear along with Camshaft Gear
Sensor Plate.
