Revotron 1.2T
115

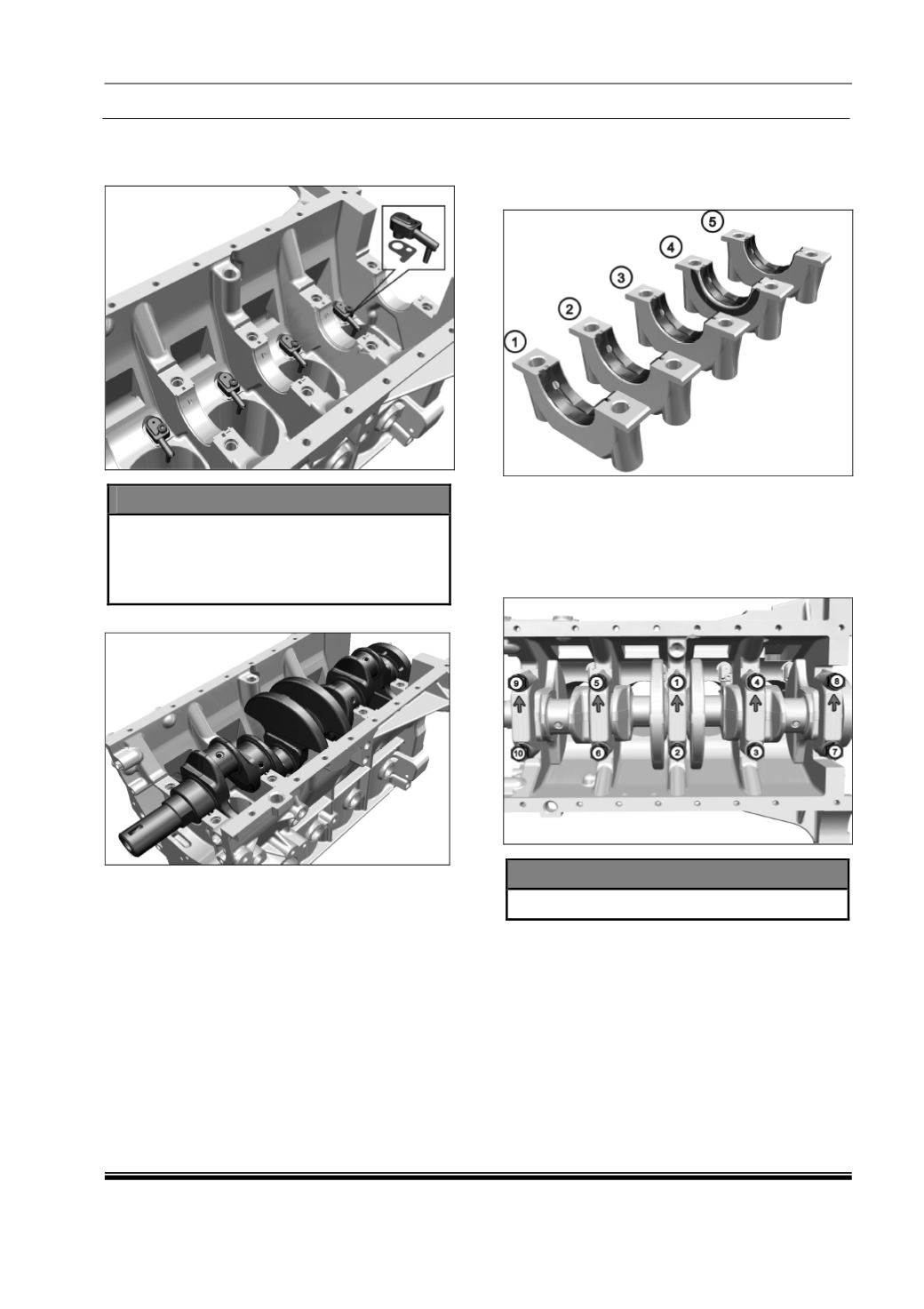

7. Place piston cooling nozzles with gasket to the
cylinder block and tighten the cap screw to
specific torque.
NOTE
•
Apply light coat of engine oil to all main
bearing shells and crankshaft journals.
•
Ensure crankshaft holes are properly
cleaned and free from any blockages.
8. Place the crankshaft.
9. Install the main bearing shells to the main
bearing caps.
10. Fix the thrust washers on fourth bearing cap.
11. Install 3
rd
, 5
th
, 2
nd
and 1
st
Main bearing caps
with shell in their respective position on
crankcase with arrow mark facing towards oil
filter on block.
12. Install main bearing caps in their respective
positions. (Arrow mark pointing towards oil
filter side.)
13. Tighten main bearing cap mounting bolts
evenly in order 3-4-2-5-1 to the specified
torque.
NOTE
•
Ensure the crankshaft is free in rotation.
14. Fix the dial gauge and check crankshaft axial
play. It should be within specified limit.
15. Measure free rotational torque. It should be
within specified limit.
16. Apply the sealant on outer surface of the oil
seal.
