Revotron 1.2T
96

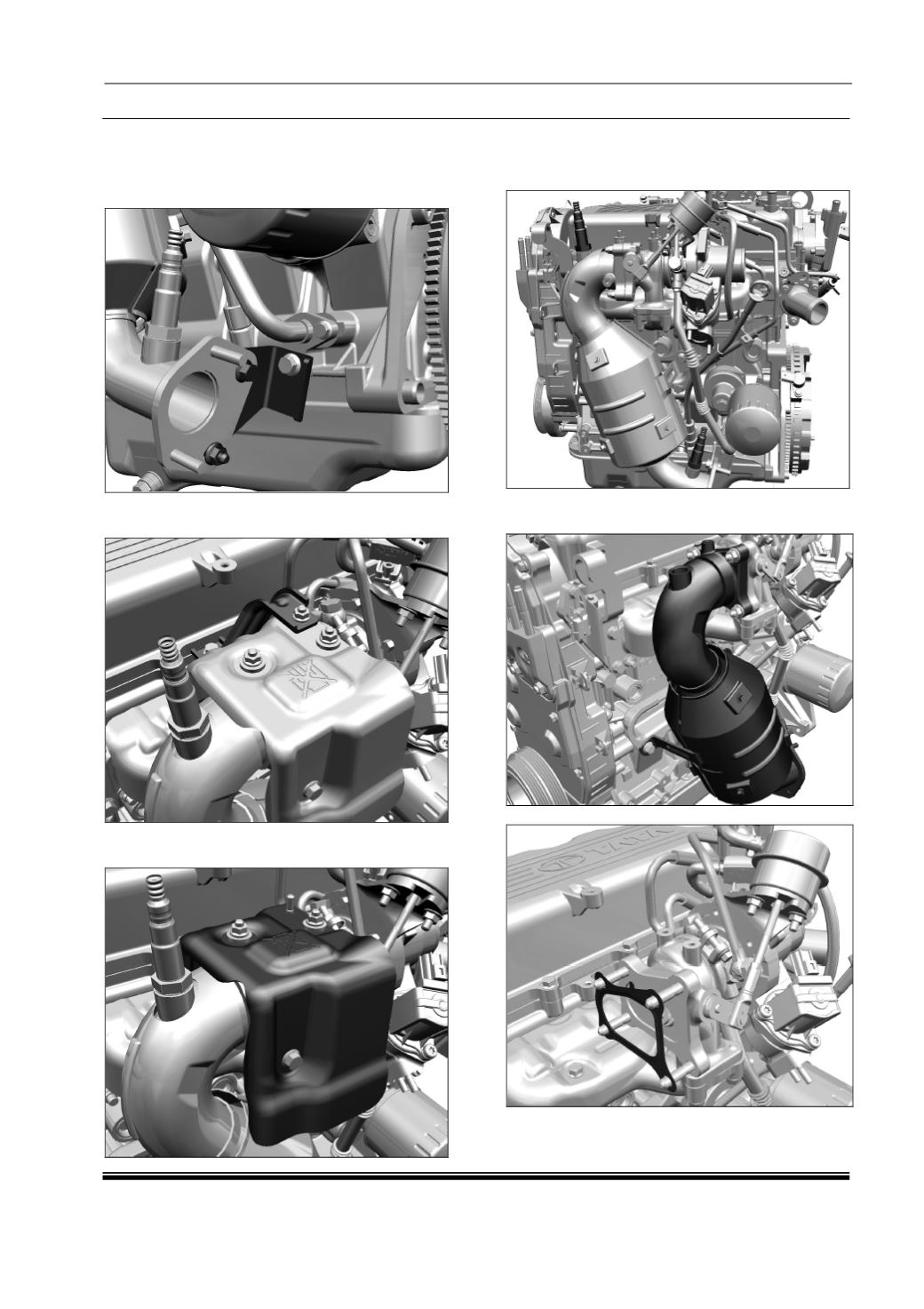

ii. Removal of Exhaust Manifold
1. Remove the Rear Support Bracket for the
Closed Coupled Catalytic Convertor (CCC)
near oil sump.
2. Remove the CCC support bracket near the
Cylinder Head cover.
3. Remove the Turbo Heat Shield mounted on
support bracket.
4. Remove the Lambda Sensor Upper and
Lower from CCC.
5. Remove Closed Coupled Catalytic Convertor
and Gasket.
