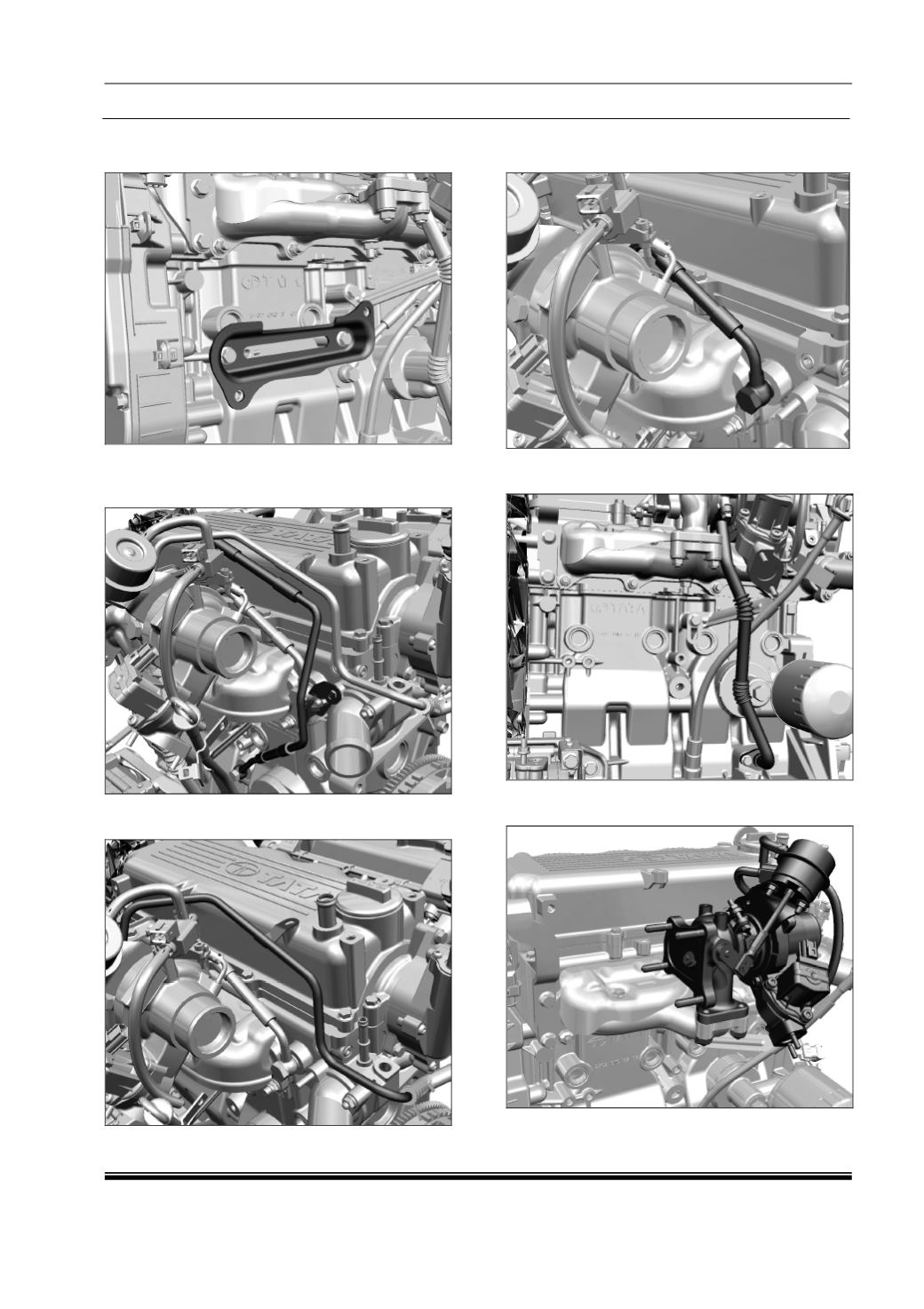

6. Remove the CCC Support bracket from the
engine block.
7. Remove Tube assembly (Turbocharger Oil
Inlet) which connects engine block and
turbocharger.
8. Remove Tube assembly (Water Outlet) from
turbocharger.
9. Remove Tube assembly (Turbocharger
Coolant Inlet)
10. Remove Tube assembly (Turbocharger Oil
Return).
11. Remove the Turbocharger from the Exhaust
Manifold along with Gasket.
