FATC
16
PIN
DESCRIPTION
25
Not Connected
26
Interface BBM PWM
27
BBM Diagnostic Feedback
28
Not connected
PIN
DESCRIPTION
29
Not connected
30
Not Connected
31
Not Connected
32
Not Connected

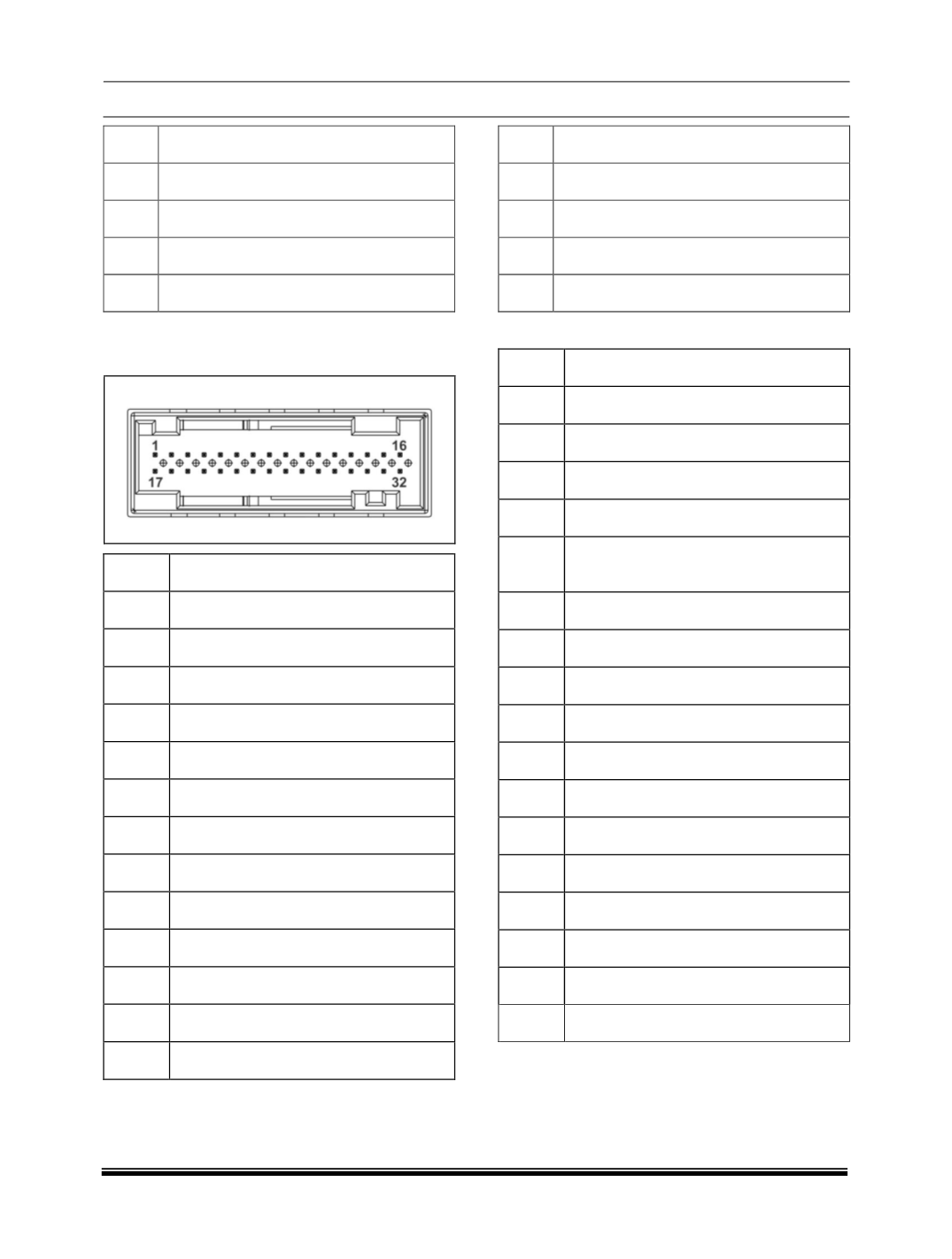

CONNECTOR C2 (GREEN CONNECTOR)
PINOUT DETAILS
PIN
DESCRIPTION
1, 2
Terminal 31 (Battery GND)
3
Not connected
4
Outside Sensor Temperature Gnd
5
Humidity Sensor Gnd
6
Not connected
7
Not connected
8
Not connected
9
Not Connected
10
Not Connected
11
Terminal 15 (ignition)
12
Not Connected
13
Not Connected
14
Not Connected
PIN
DESCRIPTION
15, 16 Power terminal 30 battery
17
Not Connected
18
Humidity Sensor Vcc
19
Solar Sensor GND
20
Heater Rear Window (Package
Protected)
21
Not connected
22
CAN L
23
Not connected
24
CAN H
25
Solar Sensor Signal
26
Not connected
27
AC Output Signal
28
Not connected
29
Not connected
30
Not connected
31
Not connected
32
Not connected
