NEXON EV SERVICE MANUAL

FATC

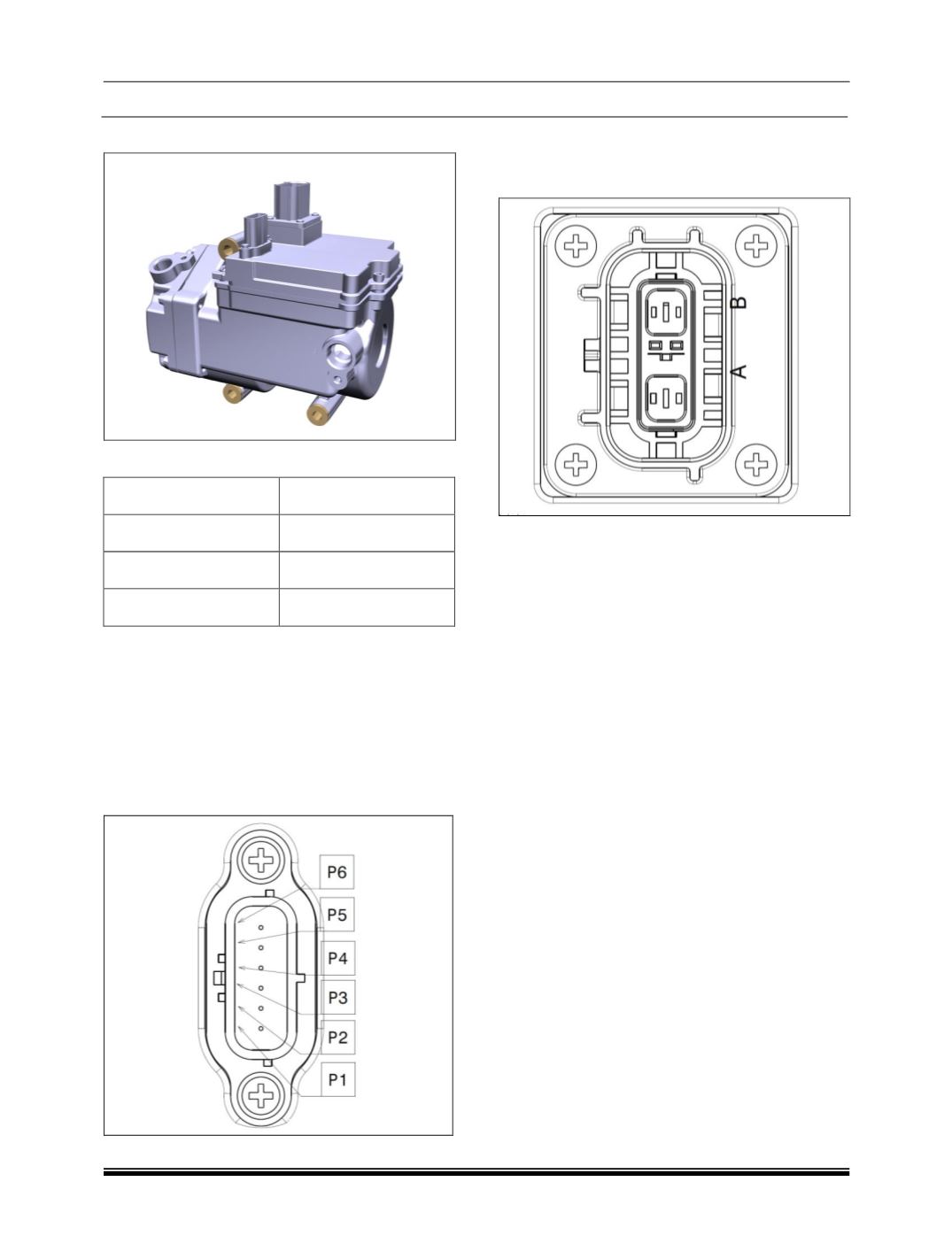

8. COMPRESSOR

SPECIFICATION

MODEL

E26T

DISPLACEMENT VOL.

LUBRICANT

POE oil and RL68H

QUANTITY

120 ± 20 cm

E26T compressor is electrically operated invertor

type scroll compressor. Compressor speed changes

based on cooling requirement.

In case of cabin cooling, request goes from FATC

panel to VCU to start compressor. VCU operates

compressor and maintain its speed.

Compressor electrical connections

Low voltage (LV) connections

6 pin connectors on compressor is for low voltage

connection.

High voltage (HV) connections

Two pole connector is provided for high voltage con-

nections.
