5. COMPONENTS OF FULLY AUTOMATIC
CONTROL PANEL (FATC)
The removal and installation of all components are
covered in “On Vehicle Repairs” in this section

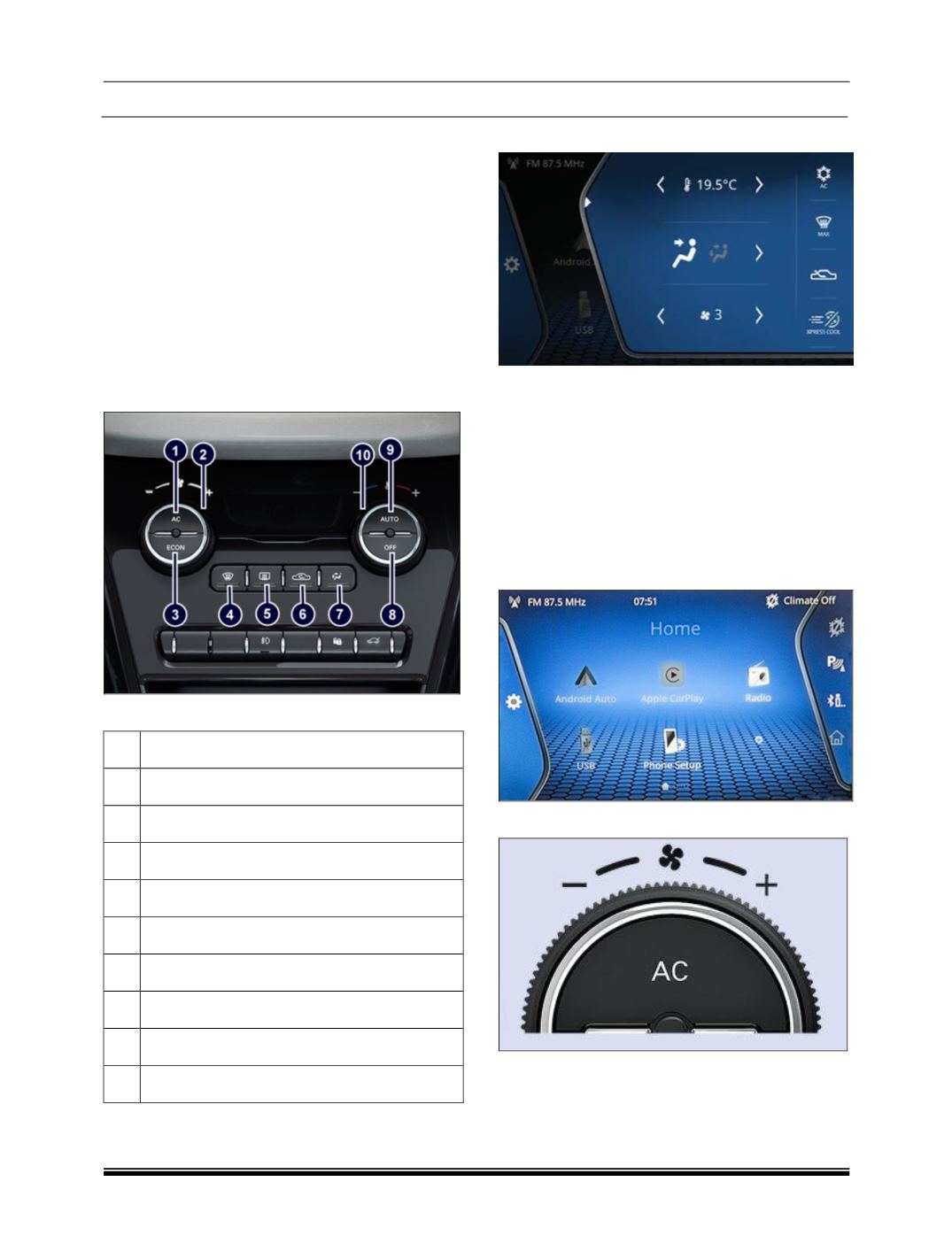

FATC CONTROL PANEL
FATC is an electronic control unit known as the con-
trol panel having a built in algorithm to maintain the
climate control system in the vehicle. It is capable of
controlling the temperature, FAN speed, air distribu-
tion settings in the passenger compartment and with
the Auto button, the user can select all the above
settings to be controlled automatically by the climate
control algorithm. The layout of the knobs and
pushbuttons on the control panel are as below.
FATC Controls
1
AC Compressor ON/OFF Button
2
Blower Speed Control Knob
3
Econ (economy mode) button
4
MAX DEFROST Button
5
Rear Window Demister Button
6
Fresh Air / Recirculation Button
7
Air Distribution (MODE) Button
8
OFF Button.
9
Auto ON selection Button
10 Temperature control knob
DISPLAY UNIT
FATC display is shown on main display screen.
FATC functions can be controlled using both the
FATC control panel and the touch screen display.
Whenever the user tap the FATC drawer, its expand
& display different climate control setting options like
Temperature, blower speed etc. and so used for
managing the climate control
Also, when the display is not in climate mode then
climate information will be displayed on the all-time
display provide on the top bar.
i. AC COMPRESSOR ON / OFF BUTTON
Press the AC compressor ON/OFF button to turn the
air conditioning ON or OFF. The AC icon activated
on the dis-play when the AC is ON.
