FATC
15

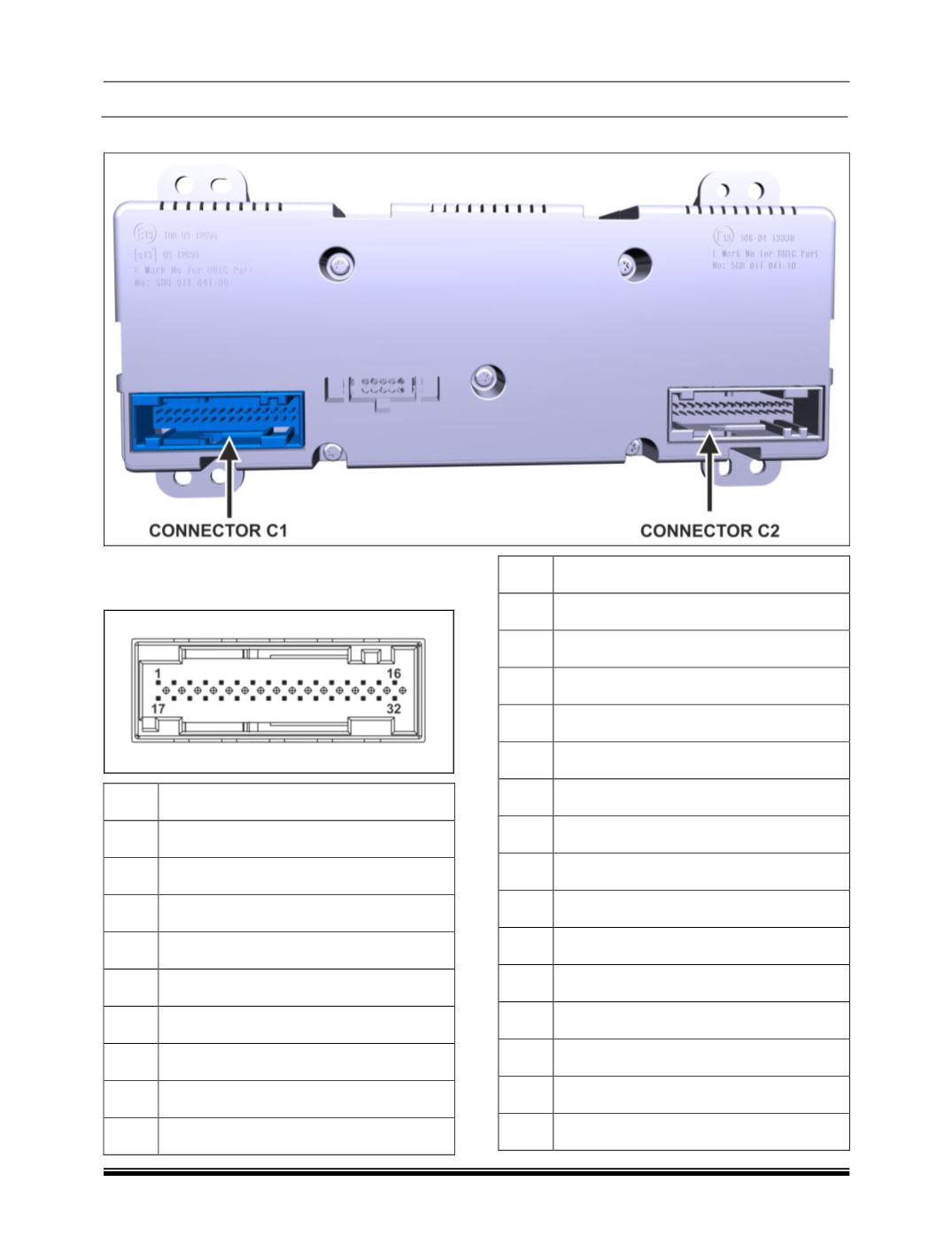

6. CONTROL PANEL CONNECTOR DETAILS
CONNECTOR C1 (BLUE CONNECTOR)
PINOUT DETAILS
PIN
DESCRIPTION
1
Air Inlet Motor Pot1 Supply
2
Air Temperature Pot1 Supply
3
Air Distribution Pot1 Supply
4
Air Temperature Pot1 Signal
5
Not Connected
6
Not Connected
7
Not Connected
8
Sensor Temperature Evaporator Signal
9
Air Distribution Pot1 Signal
PIN
DESCRIPTION
10
Air Inlet Motor Pot1 Signal
11
Air Temperature Motor B
12
Air Inlet Motor A
13
Air Inlet Motor B
14
Air Distribution Motor A
15
Air Distribution Motor B
16
Air Temperature Motor A
17
Air Inlet Motor Pot1 GND
18
Air Temperature Pot1 GND
19
Air Distribution Pot1 GND
20
Sensor Temperature Evaporator GND
21
Sensor AQS GND
22
Engine Coolant Sensor GND
23
Not Connected
24
Face/Foot Outlet Temp Sensor GND
