NEXON EV SERVICE MANUAL

FATC

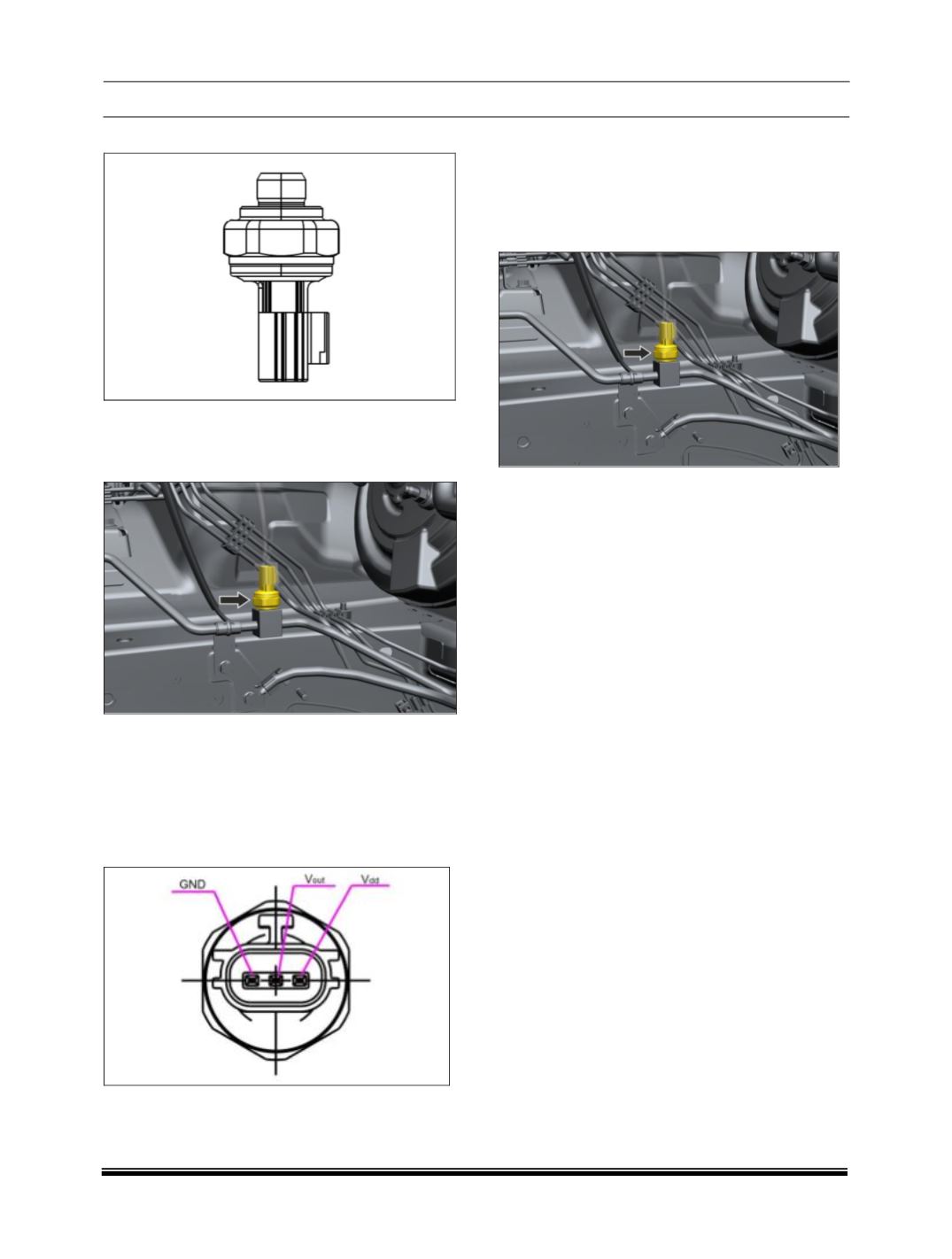

C. LINEAR PRESSURE SENSOR (LPS)

Location:

Linear Pressure Sensor is located on high pressure

liquid tube, beside the brake booster.

Trinary pressure switch is provided on the high pres-

sure tube liquid line of the refrigerant and it is

functionally connected to Vehicle Electronic control

Unit (VCU) to control the AC compressor and radia-

tor/ condenser fan. It also gives a feedback to the

Control panel in case of its intervention.

PIN OUT:

REMOVAL

1. Discharge the refrigerant using standard recover-

ing equipment.

2. Disconnect electrical connector on LPS.

3. Remove pressure sensor from AC pipe

FITMENT

Follow the reverse procedure of removal.
