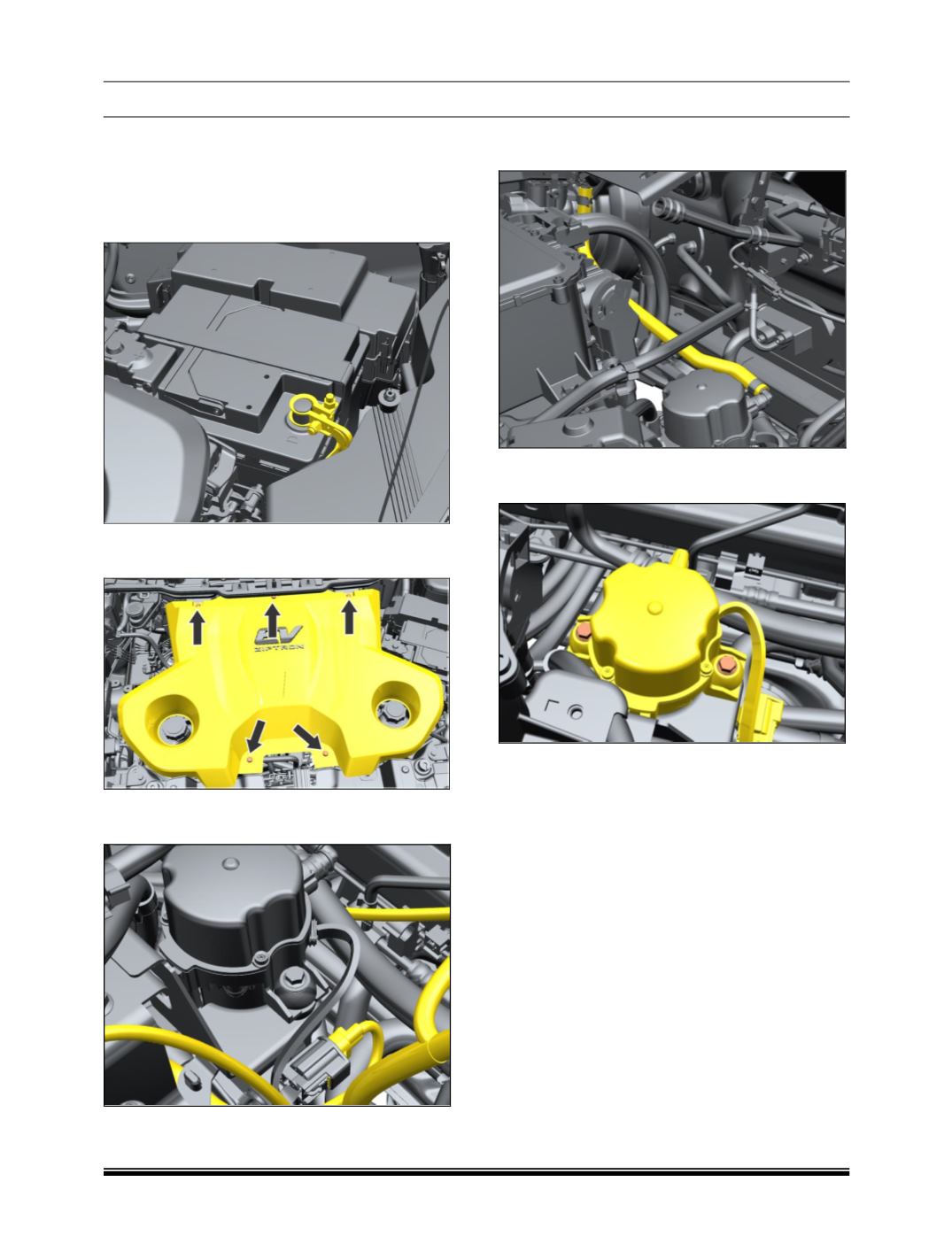

D. VACUUM PUMP REMOVAL
1.
Open the bonnet of the vehicle.
2.
Remove Aux Battery negative terminal and Put
masking tape on Aux Battery negative terminal
& cable.
3.
Loosen and Remove the mounting screw and
take out the motor cover.
4.
Disconnect the electrical connection of vacuum
pump.
5.
Remove the mounting hose of vacuum pump &
drain the oil
(Refer maintenance section.)
6.
Loosen and Remove the mounting screw and
take out the vacuum pump.
Fitment
Follow reverse procedure for assembly.
