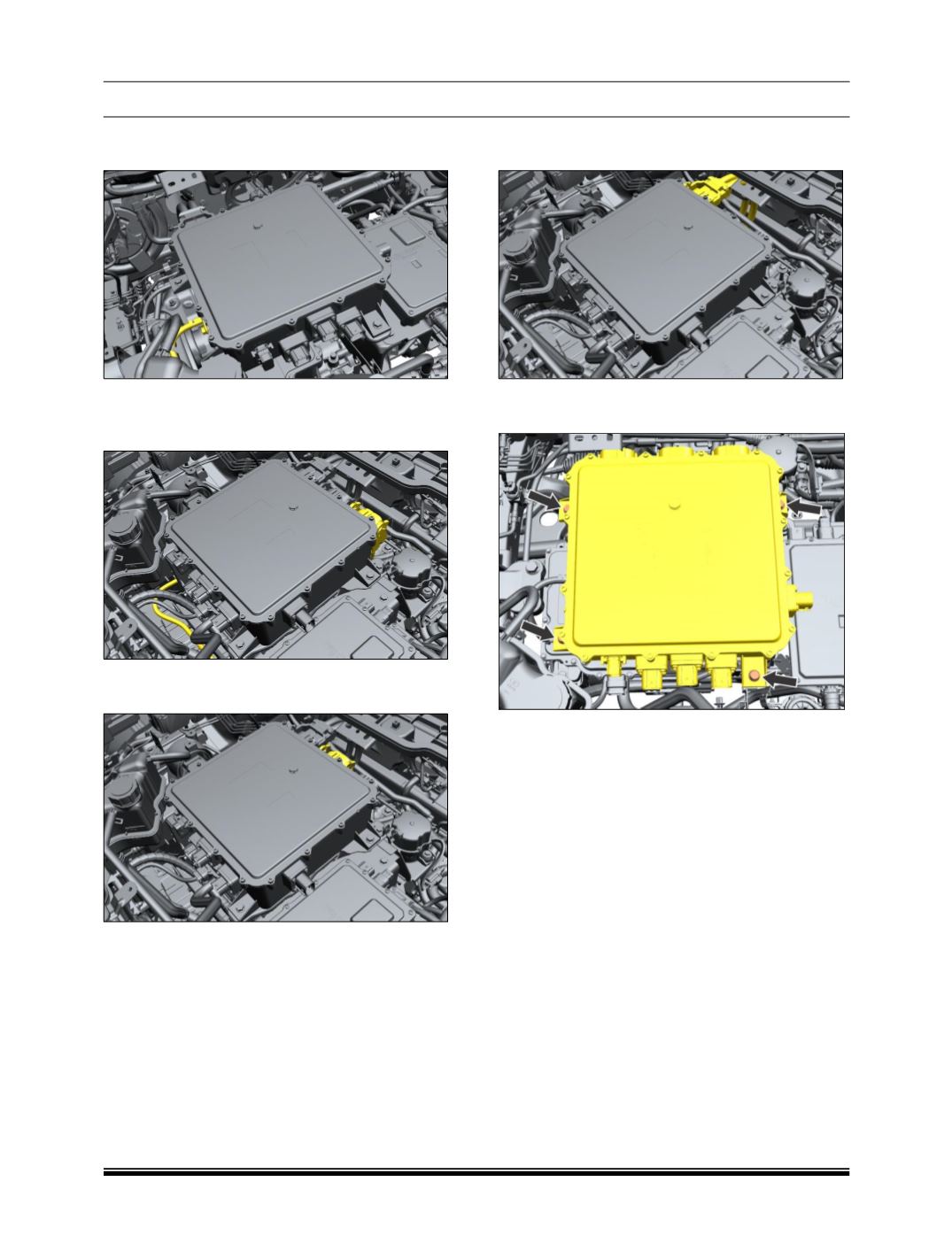

8. Loosen and Remove the ground terminal cable
screw to PDU.
9. Remove the connector and cable of HV
charger to vehicle inlet connection connected
to PDU.
10. Remove the connector and cable of battery
connected to PDU.
11. Remove the connector and cable of motor
controller connected to PDU.
12. Remove the four screws mounted on the
bracket and safely remove the PDU.
Fitment
Follow reverse procedure for assembly.
