HV ELECTRICAL SYSTEM
26

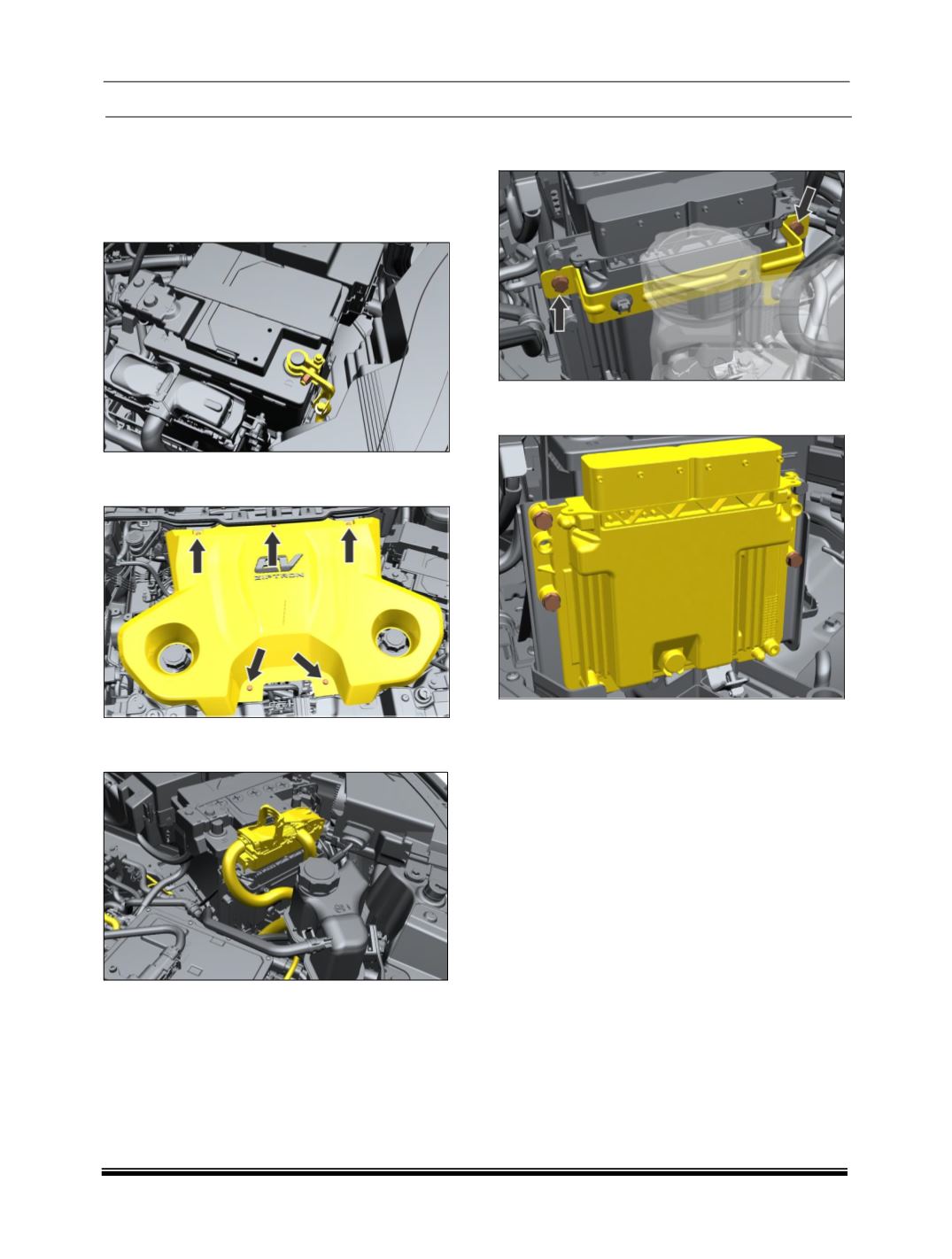

B. VEHICLE CONTROL UNIT REMOVAL
1. Open the bonnet of vehicle.
2. Remove Aux Battery negative terminal and Put
masking tape on Aux Battery negative terminal
& cable.
1. Loosen and Remove the mounting screw and
take out the motor cover.
2. Disconnect the connectors and wiring harness
connected to the controller.
3. Loosen and Remove the screws of supporting
bracket.
4. Loosen and Remove the screws mounted on
the bracket and safely take out the controller.
Fitment
Follow reverse procedure for assembly.
