HV ELECTRICAL SYSTEM
24

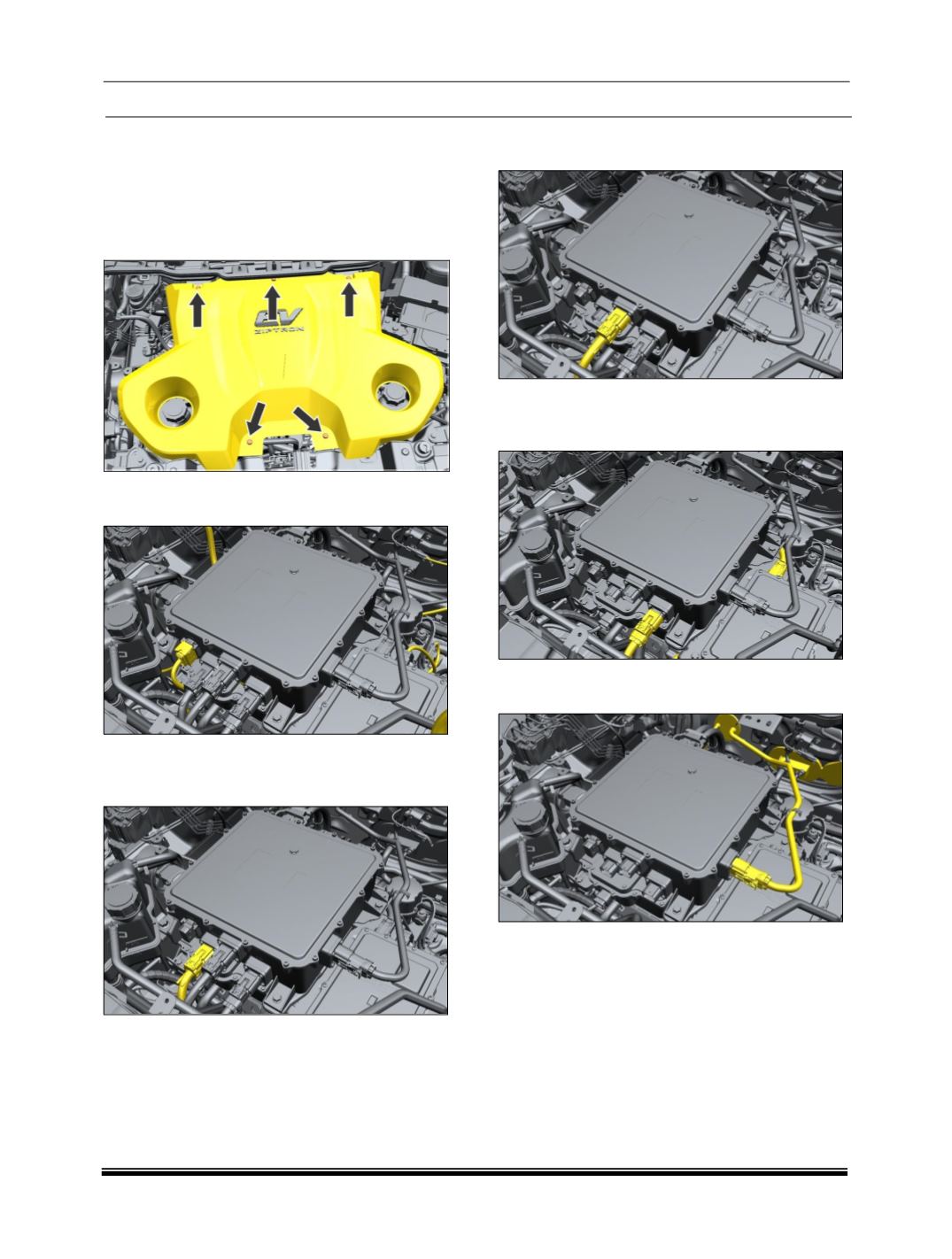

A. POWER DISTRIBUTION UNIT (PDU)
REMOVAL
1. Refer Instructions for working on HV
Components mention before starting work.
2. Loosen and Remove the mounting screw and
take out the motor cover.
3. Remove the LV wiring harness cable and
connector connected to PDU.
4. Remove the connector and cable of HV
junction box to AC compressor connected to
PDU.
5. Remove the connector and cable of charger
connected to PDU.
6. Remove the connector and cable of HV DC-
DC convertor to HV junction box connected to
PDU.
7. Remove the connector and cable of AC unit
assembly connected to PDU.
