HV ELECTRICAL SYSTEM
27

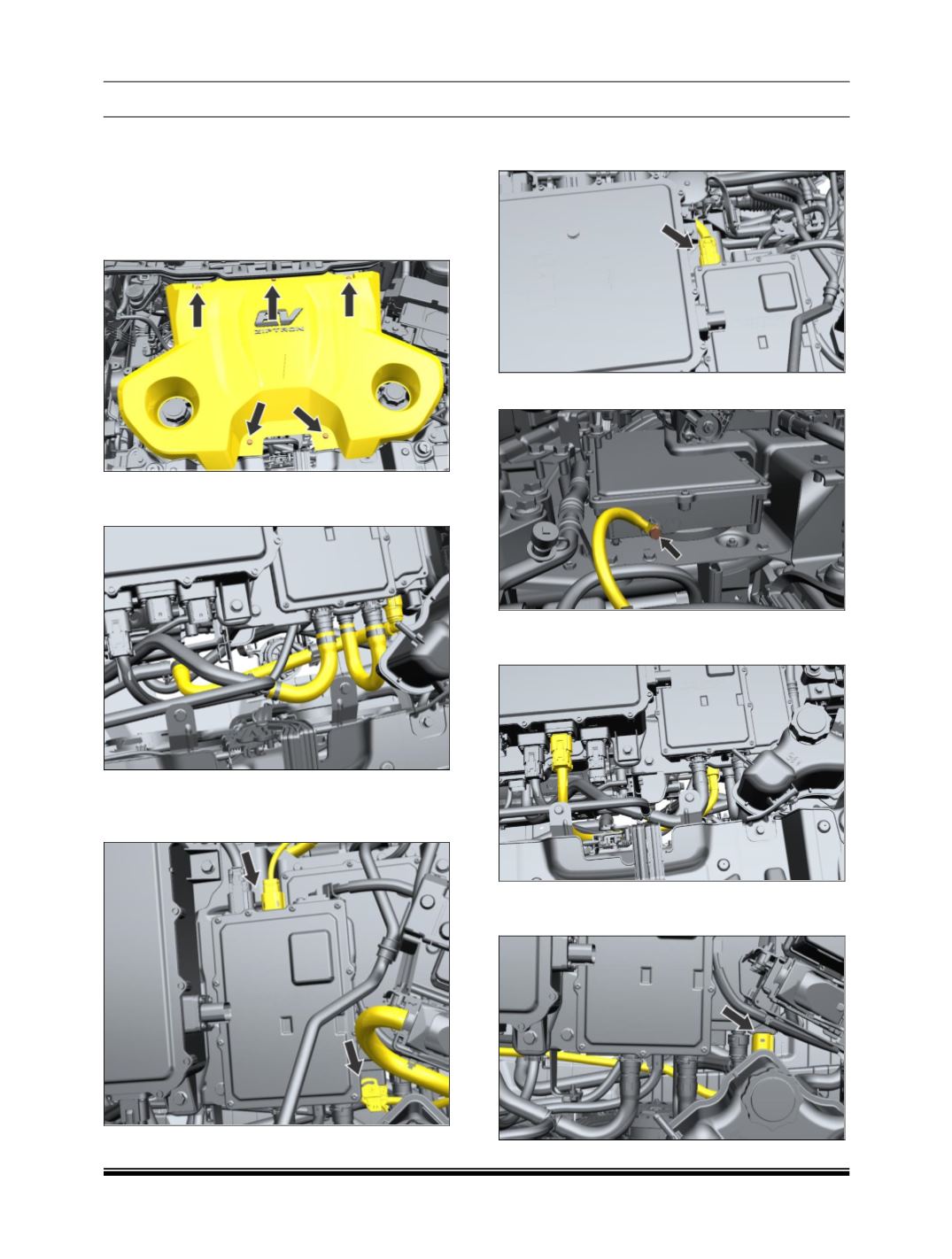

C. DC - DC CONVERTOR & ON - BOARD
CHARGER REMOVAL
1. Refer Instructions for working on HV
Components mention before starting work.
2. Loosen and Remove the mounting screw and
take out the motor cover.
3. Remove the connector hose and Drain the
coolant.(Refer Coolant draining procedure).
4. Disconnect the connectors and LV wiring
harness connected to the DC - DC Convertor
and Charger.
5. Disconnect the connectors and wiring harness
connected to the DC - DC Convertor to PDU.
6. Remove Ground connection of OBC.
7. Disconnect the connectors and wiring harness
connected to the charger to PDU.
8. Disconnect the cable connectors connected to
the charger to vehicle inlet connection.
