HV ELECTRICAL SYSTEM
35

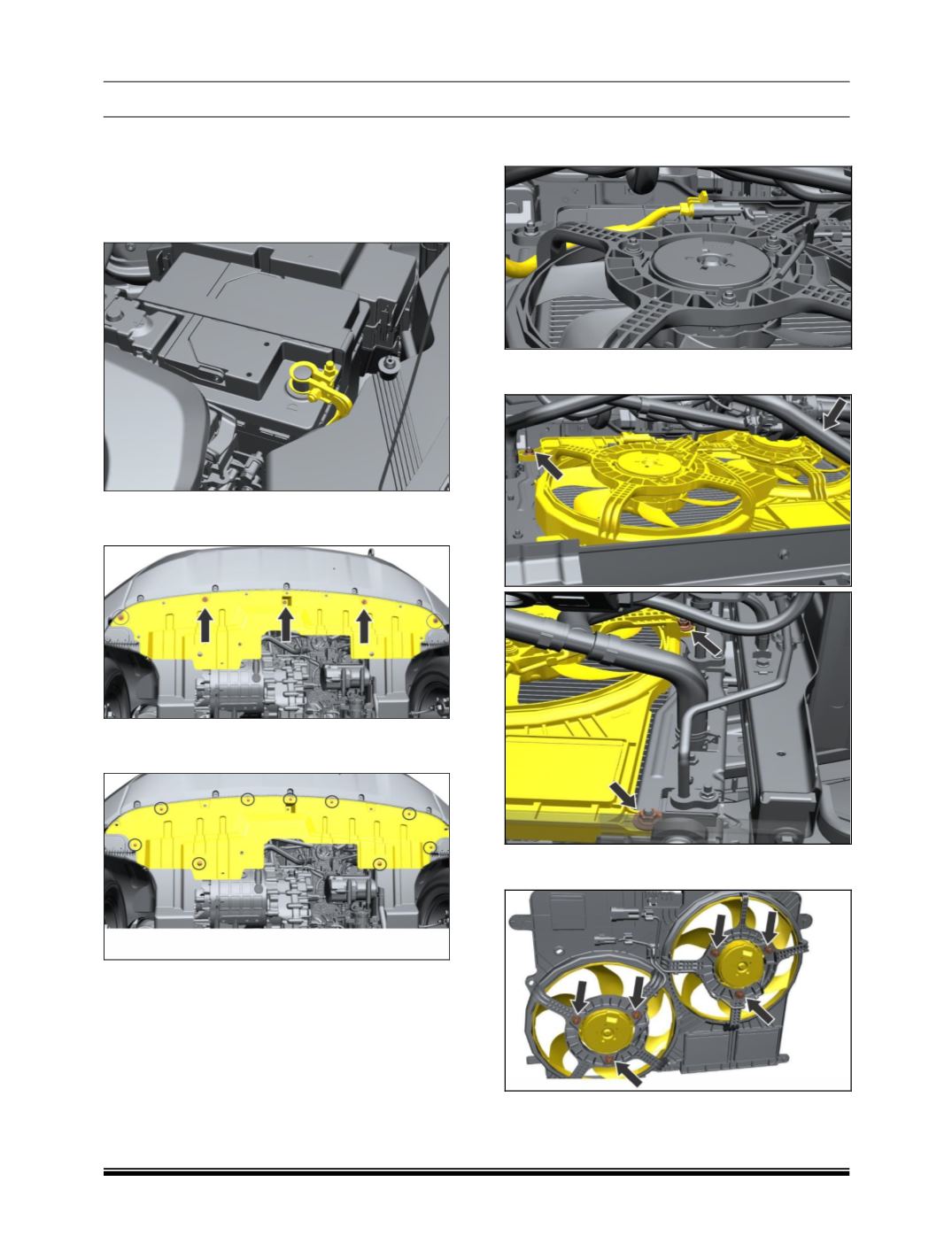

E. RADIATOR / RADIATOR FAN REMOVAL
1. Open the bonnet of vehicle.
2. Remove Aux Battery negative terminal and
Put masking tape on Aux Battery negative
terminal & cable.
3. Loosen and Remove the mounting screws &
nut of splashguard.
4. Loosen and Remove the mounting screws &
nut of splashguard.
5. Discharge the refrigerant using standard
recovering equipment.
(Refer maintenance
section.)
6. Remove front bumper assembly (For
procedure
(refer front bumper removal
procedure in body section)
7. Remove electrical connection of Radiator fan
assy.
8. Loosen and remove the mounting nut of
radiator fan assy both side safety take it out.
9. Loosen and remove the mounting nut of fan
and take it out.
Fitment.
Follow reverse procedure for assembly.
