HV ELECTRICAL SYSTEM
28

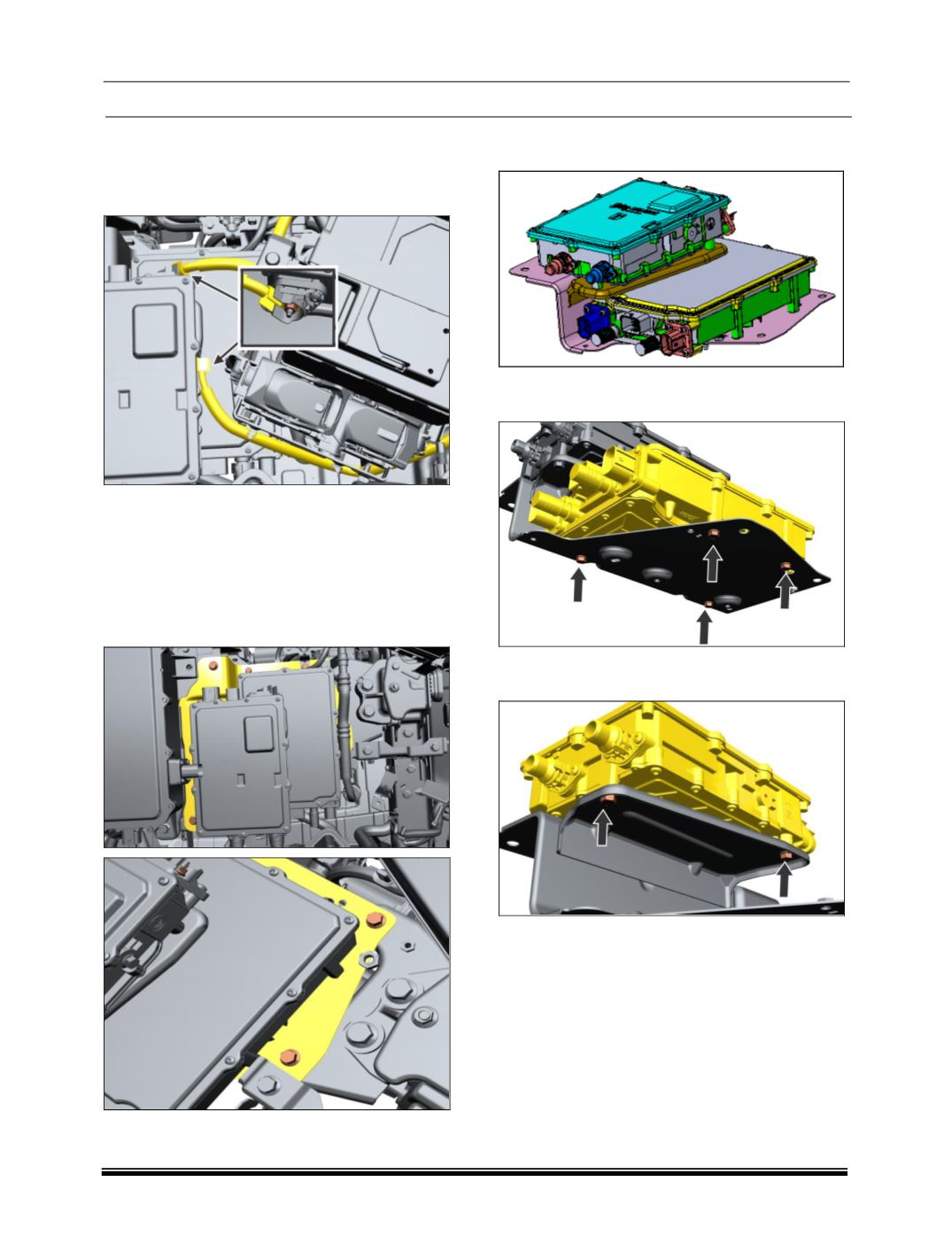

9. Remove the +ve terminal of “DCDC converter
to Aux. battery harness” on DCDC converter.
10. Remove the DCDC converter ground cable on
DCDC converter.
11. Remove battery and battery tray. (Refer
“Removal & refitment of from battery Section).
12. Remove Vehicle Control Unit. (Refer “Removal
& refitment of from Vehicle Controller Unit
Section.)
13. Loosen and remove the mounting screw on
bracket take out.
14. Take out the bracket along with DC – DC
converter and OBC.
15. Loosen and remove the mounting screw of
charger and take out.
16. Loosen and remove the mounting screw of DC
- DC converter and take out.
Fitment
Follow reverse procedure for assembly.
