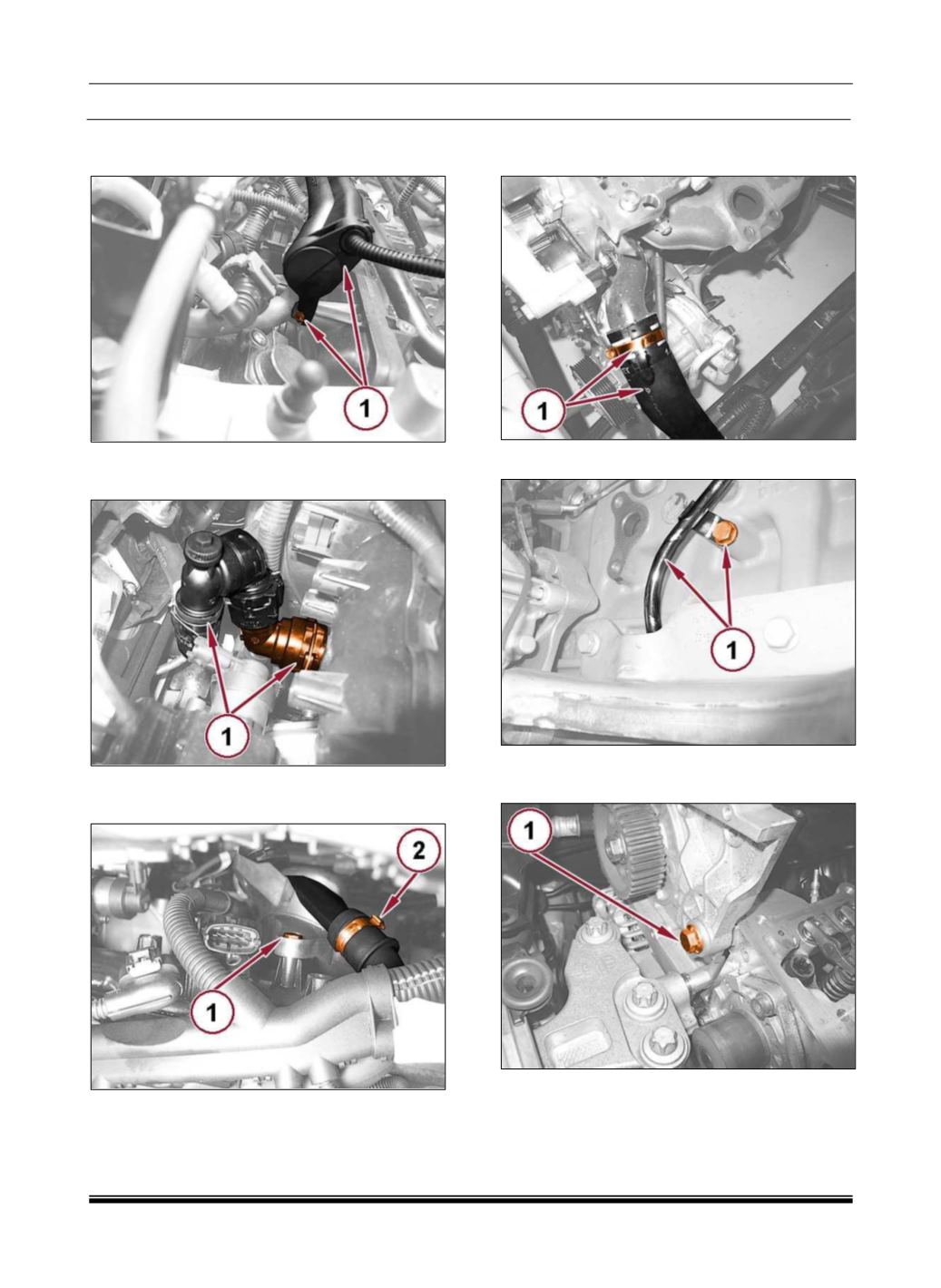

7. Remove the front screw (1) and the wire harness
(1).
8. Disconnect the coolant return manifold quick
connect coupling.
9. Remove the upper bolt (1) securing the oil vapor
separator.
10. Loosen the clamp (2) and remove the hose
from the oil vapor separator.
11. Loosen the clamp (1) and remove the radiator
hose (1).
12. Remove the bolt (1) and the dipstick tube (1).
13. Remove the bolt (1) securing the fuel injection
pump support to the cylinder head.
