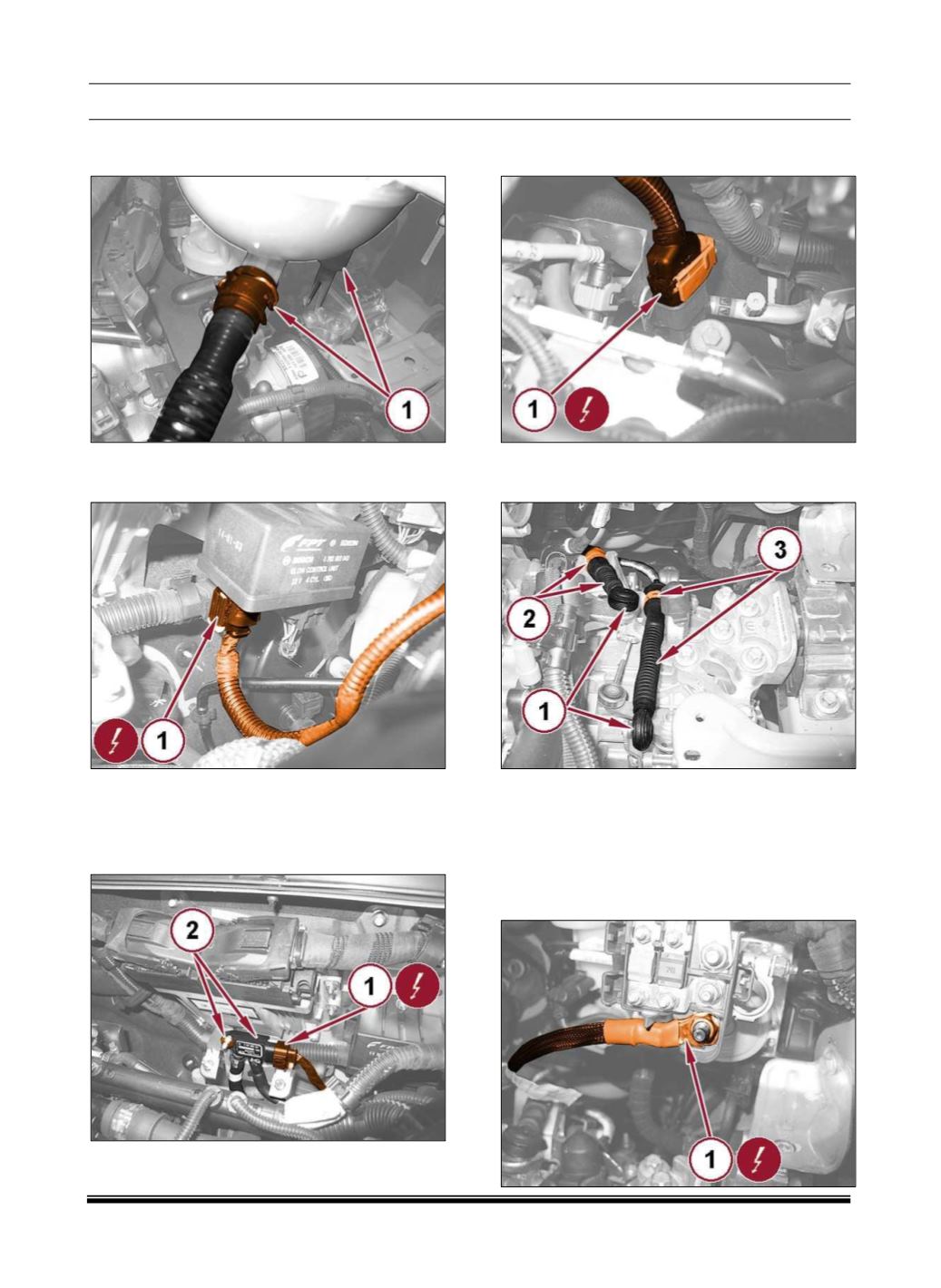

40. Disconnect the quick coupling (1) and remove
the pressurized coolant bottle.
41. Disconnect the glow plug control unit wire
harness connector (1).
42. Disconnect the DPF differential pressure
sensor wire harness connector (1).
43. Unscrew the nut (2) and reposition the DPF
differential pressure sensor onto the engine.
44. Disconnect the power transfer unit actuator
wire harness connector (1).
45. Open the retaining clips and disengage the
gear selector cables (1).
46. Pull back the lock slider (2) and disengage the
gear selector cable from the bracket.
47. Pull back the lock slider (3) and disengage the
gear selector cable from the bracket.
48. Remove the nut (1) and disconnect the starter
cable from the positive battery terminal.
