KRYOTEC ENGINE
89

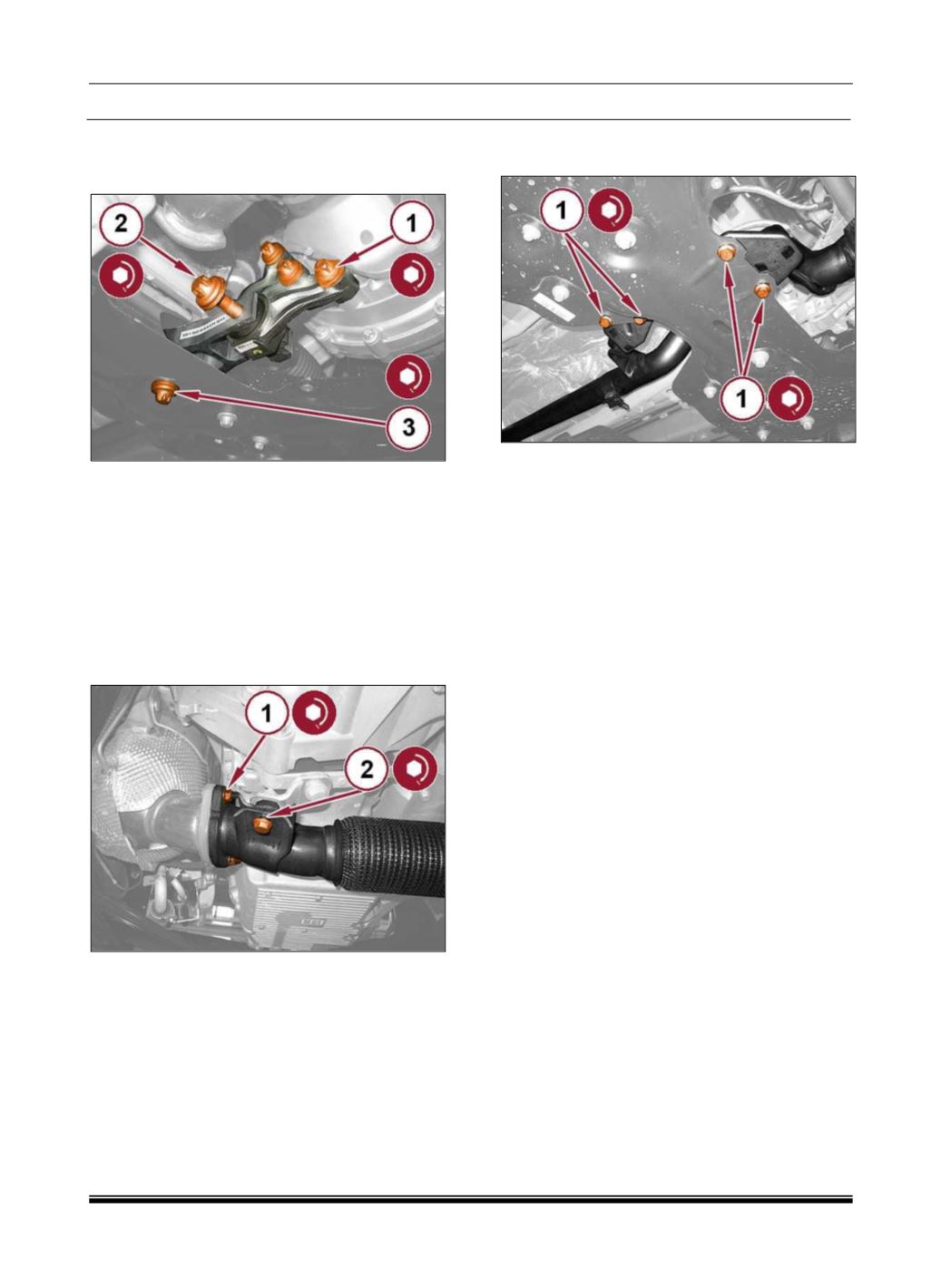

28. Install the rear engine mount isolator bracket
(1) with the bolts tightened to the proper (Torque
Specifications).
29. Install the rear engine mount isolator (2) with
the bolt tightened to the proper (Torque
Specifications).
30. Install the rear engine mount isolator to front
cross member bolt (3) and tighten to the proper
(Torque Specifications).
31. Install a new flange gasket and connect the
exhaust pipe to the Diesel Particulate Filter (DPF)
with new nuts (1) tightened to the proper (Torque
Specifications).
32. Install the exhaust pipe support bracket bolt (2)
and tighten to the proper (Torque Specifications).
33. Install the exhaust pipe hanger bolts (1) and
tighten to the proper (Torque Specifications).
34. Install the right front head lamp (Refer to 08 -
Electrical/Lamps/Lighting - Exterior/UNIT, Front
Lamp/Removal and Installation).
35. Install the left front head lamp (Refer to 08 -
Electrical/Lamps/Lighting - Exterior/UNIT, Front
Lamp/Removal and Installation).
36. Install the air intake pipe to the turbocharger
with the clamp tightened to the proper (Torque
Specifications).
37. Connect the engine oil vapor hose to the tube
side with the clamp tightened to the proper (Torque
Specifications).
38. Install the MAF sensor to the turbocharger air
inlet pipe with the clamp tightened to the proper
(Torque Specifications).
39. Connect the Mass Air Flow (MAF) sensor wire
harness connector.
40. Install the fuel filter (Refer to 14 - Fuel
System/Fuel Delivery/FILTER, Fuel/Removal and
Installation).
41. Install the air cleaner body (Refer to 09 -
Engine/Air
Intake
System/BODY,
Air
Cleaner/Removal and Installation).
42. Install the engine cover (Refer to 09 -
Engine/COVER, Engine/Removal and Installation).
43. Install the right and left lower load beam (Refer
to 13 - Frame and Bumpers/Frame/LOAD BEAM,
Lower/ Removal and Installation).
44. Install the front bumper reinforcement and
tighten the bolts to the proper (Refer to 13 - Frame
and Bumpers/ Technical Specifications).
45. Install the battery tray (Refer to 08 -
Electrical/Battery System/TRAY, Battery/Removal
and Installation).
