KRYOTEC ENGINE
83
7. ENGINE ON VEHICLE SERVICE
PROCEDURE
A. ENGINE REMOVAL
1. Raise and support the vehicle (Refer to 04 -
Vehicle Quick Reference/Hoisting/Standard
Procedure).
2. Remove the battery (Refer to 08 -
Electrical/Battery System/BATTERY/Removal and
Installation).
3. Remove the battery tray (Refer to 08 -
Electrical/Battery System/TRAY, Battery/Removal
and Installation).
4. Remove the front wheels (Refer to 22 - Tires
and Wheels/Removal and Installation).
5. Remove the front belly pan (Refer to 13 -
Frame and Bumpers/Under Body
Protection/BELLY PAN/Removal and Installation).
6. Remove the front wheel splash shields (Refer
to 23 - Body/Exterior/SHIELD, Splash/Removal
and Installation).
7. Remove the front fascia (Refer to 13 - Frame
and Bumpers/Bumpers/FASCIA, Front/Removal
and Installation).
8. Remove the bolts and the front bumper
reinforcement.
9. Remove the right and left lower load beam
(Refer to 13 - Frame and Bumpers/Frame/LOAD
BEAM, Lower/ Removal and Installation).
10. Remove the engine cover (Refer to 09 -
Engine/COVER, Engine/Removal and
Installation).
11. Remove the air cleaner body (Refer to 09 -
Engine/Air Intake System/BODY, Air
Cleaner/Removal and Installation).
12. Remove the fuel filter (Refer to 14 - Fuel
System/Fuel Delivery/FILTER, Fuel/Removal and
Installation).

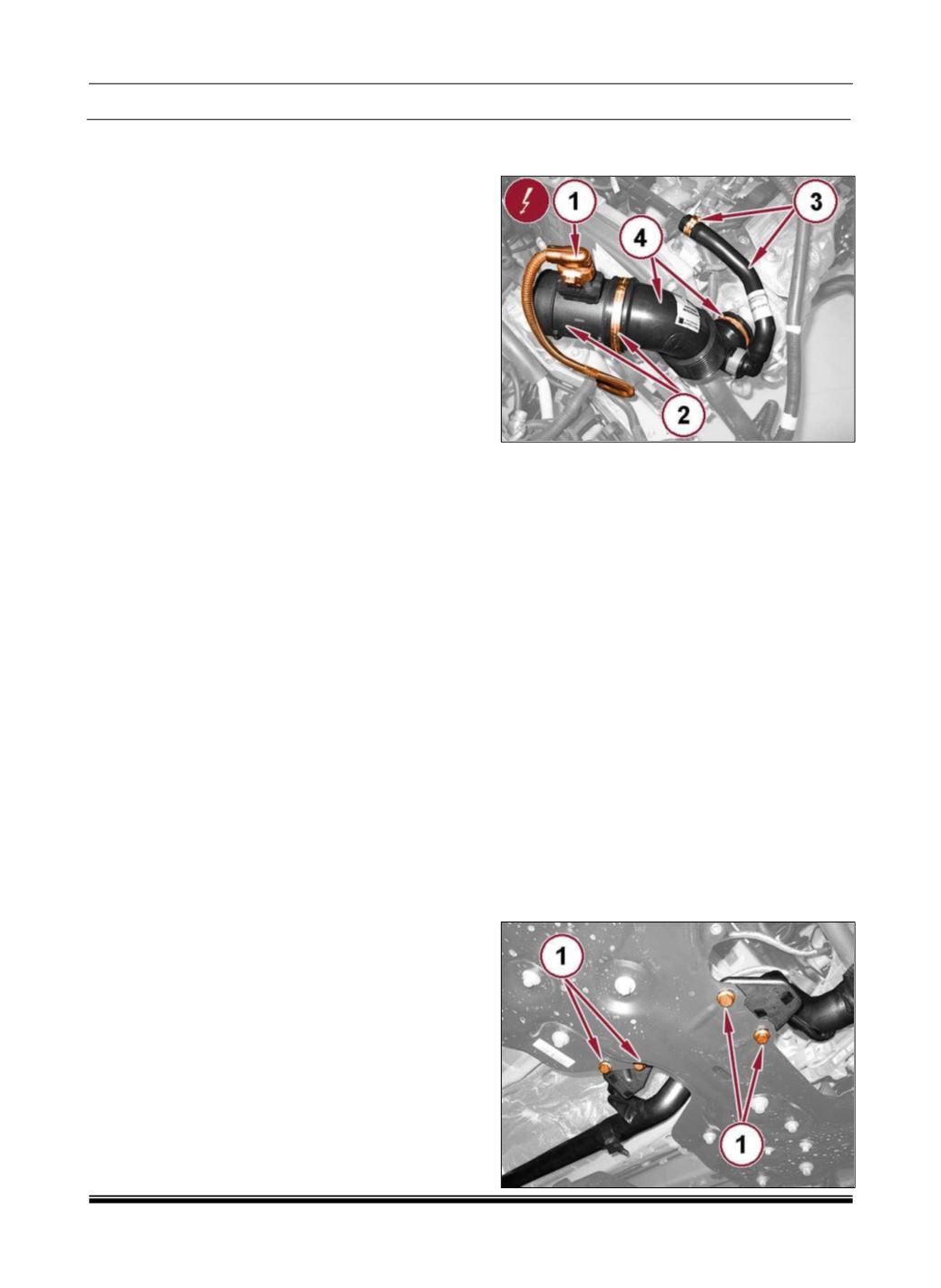

13 Disconnect the Mass Air Flow (MAF) sensor
wire harness connector (1).
14. Loosen the clamp (2) and remove the MAF
sensor from the turbocharger air inlet pipe (4).
15. Loosen the clamp (3) and disconnect the
engine oil vapor hose from the tube side.
16. Loosen the clamp (4) and remove the air
intake pipe from the turbocharger.
17. Drain the transmission fluid (Refer to 21 -
Transmission and Transfer
Case/Manual/FLUID/Standard Procedure).
18. Drain the cooling system (Refer to 07 -
Cooling - Standard Procedure).
19. Recover the refrigerant from the refrigerant
system (Refer to 24 - Heating and Air
Conditioning/Plumbing - Standard Procedure).
20. Remove the left front head lamp (Refer to 08 -
Electrical/Lamps/Lighting - Exterior/UNIT, Front
Lamp/Removal and Installation).
21. Remove the right front head lamp (Refer to 08
- Electrical/Lamps/Lighting - Exterior/UNIT, Front
Lamp/Removal and Installation).
22. Remove the exhaust pipe hanger bolts (1).
