KRYOTEC ENGINE
115

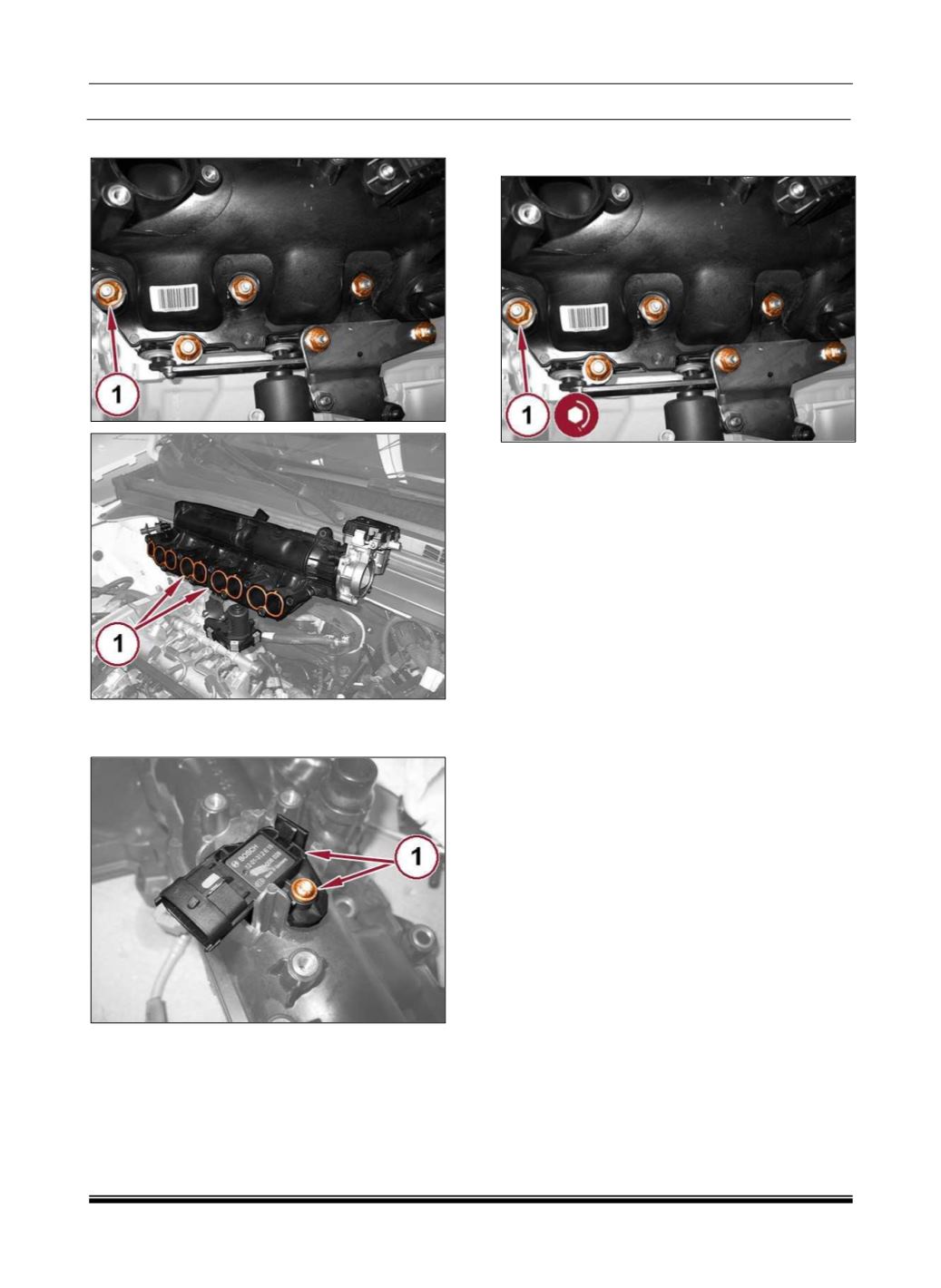

30. Remove the intake manifold with gasket (1).
31. If necessary, remove the screw (1) and the
pressure sensor.
FITMENT
1. Using a NEW gasket, install the intake manifold
and pressure sensor.
2. Tighten the nuts (1) to the proper (Torque
Specifications).
3. Install the bottom mounting stud (1) securing the
fuel injection pump and securely tighten.
4. Install the support bracket securing the intake
manifold and securely tighten.
5. Install the bolt securing the wire harness to the
intake manifold.
6. Install the oil vapor pipe and securely tighten the
bolt.
7. Connect the pressure sensor wire harness
connector.
8. Install the wire harness assembly the intake
manifold and securely tighten bolt.
9. Connect the fuel pressure sensor wire harness
connector.
10. Connect the glow plug wire harness connector
to each glow plug.
11. Using a NEW O-ring seal, install vapor
separator assembly.
12.
Install the bolt (1) securing the oil recovery
pipe to the oil pan and securely tighten.
13. Connect the swirl valve actuator wire harness
connector.
14. Install the lower bolt (1) securing the engine oil
vapor recovery pipe to the engine block and
securely tighten.
15. Install the bolt (2) securing the oil vapor
separator to the intake manifold and securely
tighten.
16.
Install the oil vapor pipe and tighten the
clamp.
NOTE
170 CV
