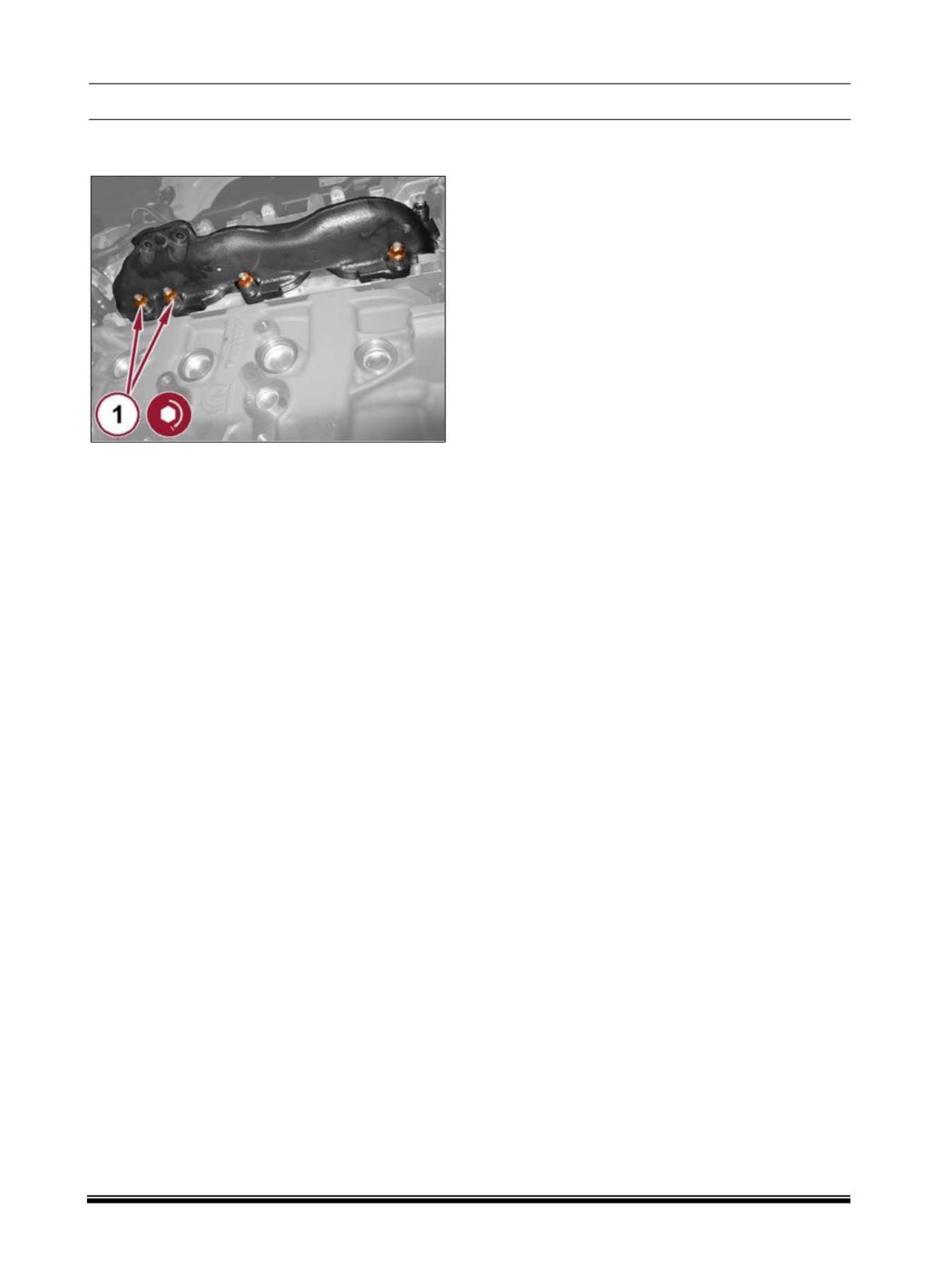

2. Install NEW lower exhaust manifold nuts (1) and
tighten to the proper (Torque Specifications).
3. Install the oil indicator tube and securely tighten
the bolt.
4. Install the oil indicator tube upper bolt and
securely tighten.
5. Install the upstream exhaust temperature sensor
into the Diesel Particulate Filter (DPF) (Refer to 11
-
Exhaust
System/SENSOR,
Exhaust
Temperature/Removal and Installation).
6. Install the right front wheelhouse splash shield
(Refer
to
23
-
Body/Exterior/SHIELD,
Splash/Removal and Installation).
7. Install the right front tire and wheel assembly
(Refer to 22 - Tires and Wheels/Removal and
Installation) .
8. Install the engine cover (Refer to 09 -
Engine/COVER, Engine/Removal and Installation).
9. Connect the negative battery cable.
O. INTAKE MANIFOLD
REMOVAL
1. Remove the battery (Refer to 08 -
Electrical/Battery System/BATTERY/Removal and
Installation).
2. Remove the battery tray (Refer to 08 -
Electrical/Battery System/TRAY, Battery/Removal
and Installation).
3. Remove the engine cover (Refer to 09 -
Engine/COVER, Engine/Removal and Installation).
4. Remove the belly pan (Refer to 13 - Frame and
Bumpers/Under
Body
Protection/BELLY
PAN/Removal and Installation).
5. Remove the starter (Refer to 08 -
Electrical/Starting/STARTER/Removal
and
Installation).
6. Drain the cooling system (Refer to 07 - Cooling -
Standard Procedure).
7. Remove the right front tire and wheel assembly
(Refer to 22 - Tires and Wheels/Removal and
Installation).
8. Remove the right front wheelhouse splash shield
(Refer
to
23
-
Body/Exterior/SHIELD,
Splash/Removal and Installation).
9.
Remove the air cleaner body
(Refer to 09 - Engine/Air Intake System/BODY, Air
Cleaner/Removal and Installation).
10. Remove the fuel filter/water separator
assembly (Refer to 14 - Fuel System/Fuel
Delivery/FILTER, Fuel/ Removal and Installation).
11. Remove the fuel injection pump (Refer to 14 -
Fuel
System/Fuel
Delivery/PUMP,
Fuel
Injection/Removal and Installation).
12. Remove the turbocharger (Refer to 09 -
Engine/Turbocharger
System/TURBOCHARGER/Removal
and
Installation).
NOTE
120/140 CV
13. Remove the EGR cooler and manifold (Refer to
25 - Emissions Control/Exhaust Gas Recirculation,
Diesel/ COOLER, Exhaust Gas Recirculation
(EGR)/Removal and Installation).
NOTE
170 CV
