KRYOTEC ENGINE
110
M. OIL PRESSURE REGULATOR
REMOVAL
1. Disconnect and isolate the negative battery
cable.
2. Remove the support and lower the vehicle (Refer
to 04 - Vehicle Quick Reference/Hoisting/Standard
Procedure).
3. Remove the right front tire and wheel assembly
(Refer to 22 - Tires and Wheels/Removal and
Installation).
4. Remove the right wheel house splash shield
(Refer
to
23
-
Body/Exterior/SHIELD,
Splash/Removal and Installation).
5. Remove the serpentine belt (Refer to 07 -
Cooling/Accessory
Drive/BELT,
Serpentine/Removal and Installation).
6. Remove the vibration damper (Refer to 09 -
Engine/Engine
Block/DAMPER,
Vibration/Removal and Installation).

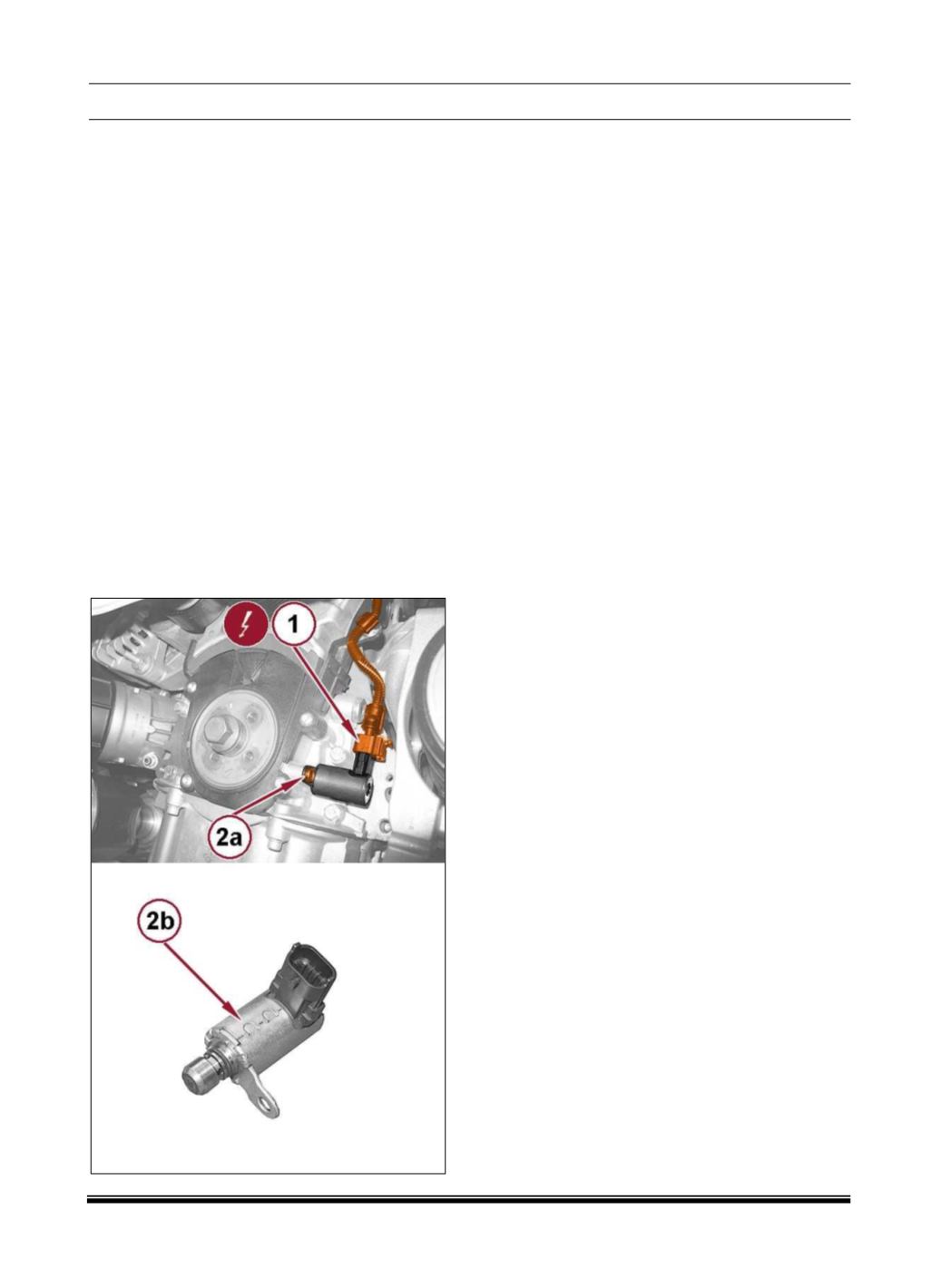

7. Disconnect the oil pressure regulator wire
harness connector (1).
8. Remove the bolt (2a) and oil pressure regulator
(2b).
FITMENT
1. Replace the oil pressure regulator (1) and clean
and inspect the inlet screen (3).
2. Using a NEW O-ring seal, Install oil pressure
regulator and tighten the bolt to the proper (Torque
Specifications).
3. Connect oil pressure regulator wire harness
connector.
4. Install the vibration damper (Refer to 09 -
Engine/Engine
Block/DAMPER,
Vibration/Removal and Installation).
5. Install the serpentine belt (Refer to 07 -
Cooling/Accessory
Drive/BELT,
Serpentine/Removal and Installation).
6. Install the right wheel house splash shield (Refer
to 23 - Body/Exterior/SHIELD, Splash/Removal
and Installation).
7. Install the right front wheel and tire (Refer to 22
-Tires and Wheels/Removal and Installation).
8. Remove the support and lower the vehicle.
9. Connect the negative battery cable.
