KRYOTEC ENGINE
107

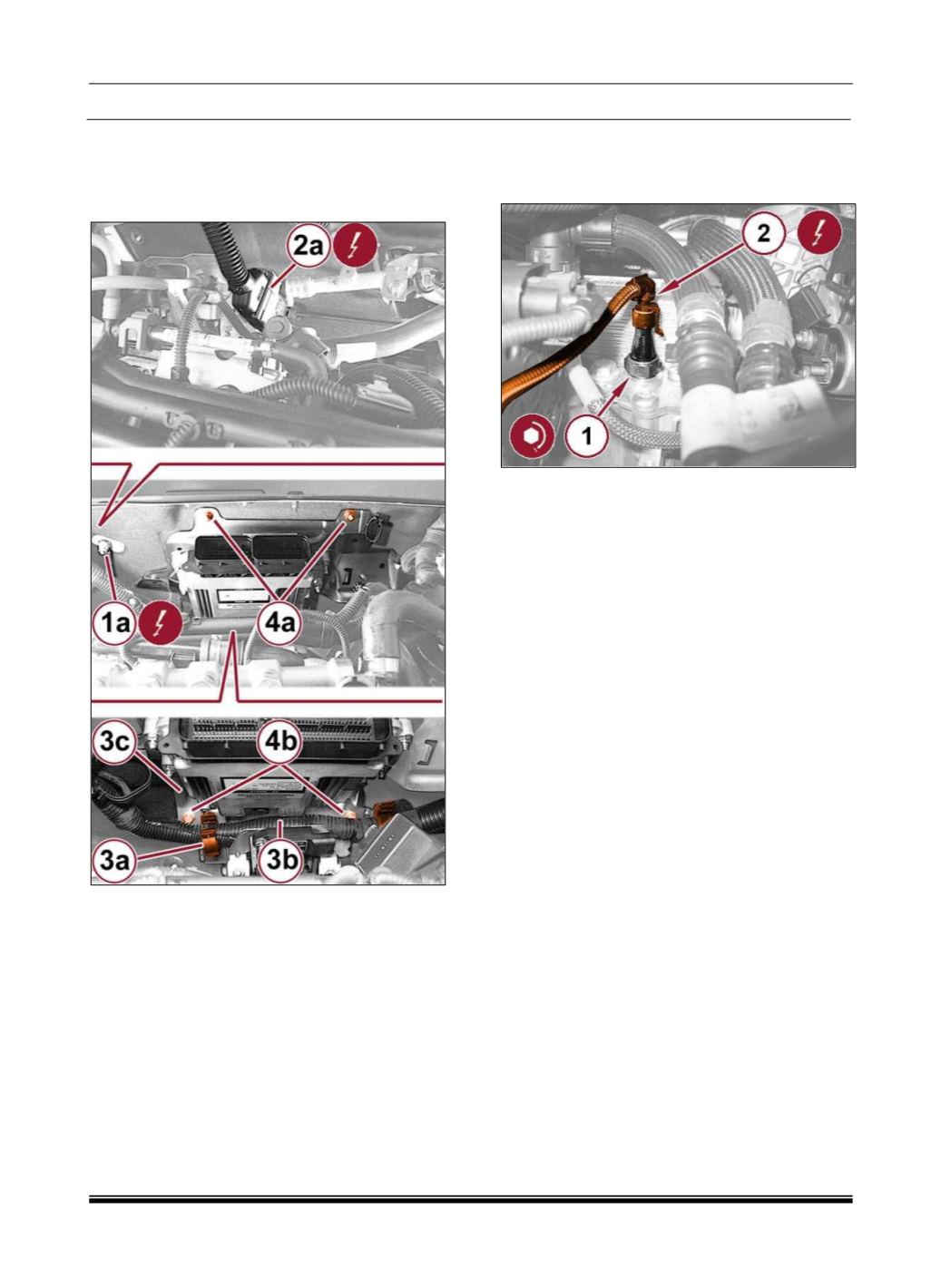

5. Remove the nuts (3a) and position aside the
Differential Pressure Sensor (DPS) (3b) with
bracket.
6. Remove the nut (1a) and the ground wire.
7. Disengage from the holder and disconnecting
the Power Transfer Unit (PTU) wire harness
connector (2a).
8. Open the clamps (3a) and unhook the
Powertrain Control Module (PCM) wire harness
(3b) from the PCM mounting bracket (3c).
9. Remove the nuts (4a) and the bolts (4b) and the
PCM with mounting bracket (3c).
10. Disconnect oil pressure sensor wire harness
connector (1a).
11. Remove oil pressure sensor (1b).
FITMENT
1. Install the oil pressure sensor (2) and tighten to
the proper (Torque Specifications).
2. Connect oil pressure sensor wire harness
connector (1).
3. Install the PCM with mounting bracket and
securely tighten the nuts and bolts.
4. Install the PCM wire harness into the PCM
mounting bracket wire harness retainer and close
the clamp.
5. Connecting the PTU wire harness connector and
attach to holder.
6. Install the ground wire and securely tighten the
nut.
7. Connect the PCM wire harness connectors.
8. Install the DPS with bracket and securely tighten
the nut.
9. Install the glow plug module and securely tighten
the nut.
10. Install the engine cover (Refer to 09 -
Engine/COVER, Engine/Removal and Installation).
11. Connect the negative battery cable.
