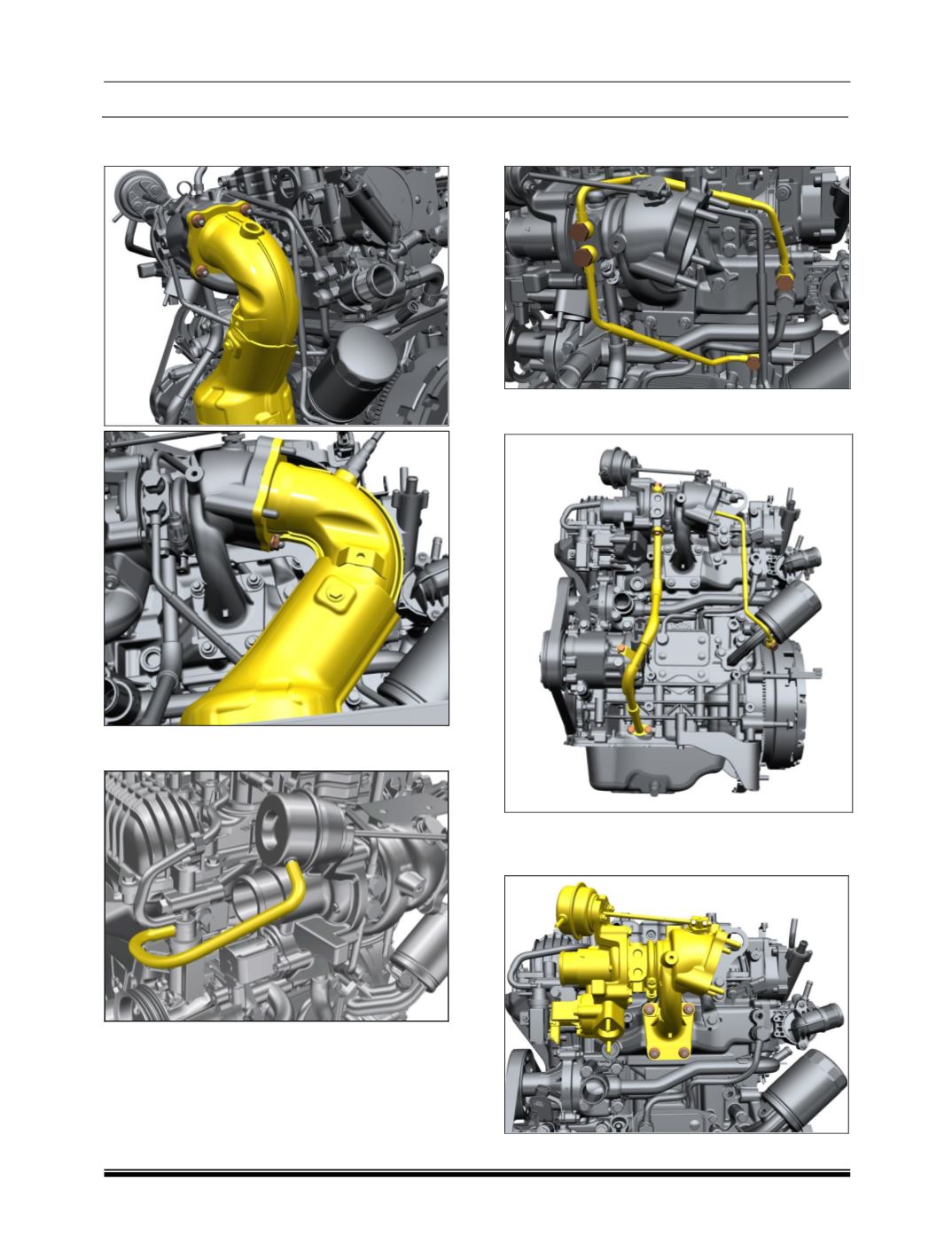

5. Remove the upper mounting nuts of the CCC
and take out the assembly.
6. Remove the hose connecting turbocharger to
EVRV.
7. Remove the turbocharger coolant intake and
return lines.
8. Remove the turbocharger oil intake and return
lines.
9. Remove the four mounting fasteners and take
out the turbocharger assembly along with the
inner side heat shield.
