1.2L REVOTRON ENGINE

120

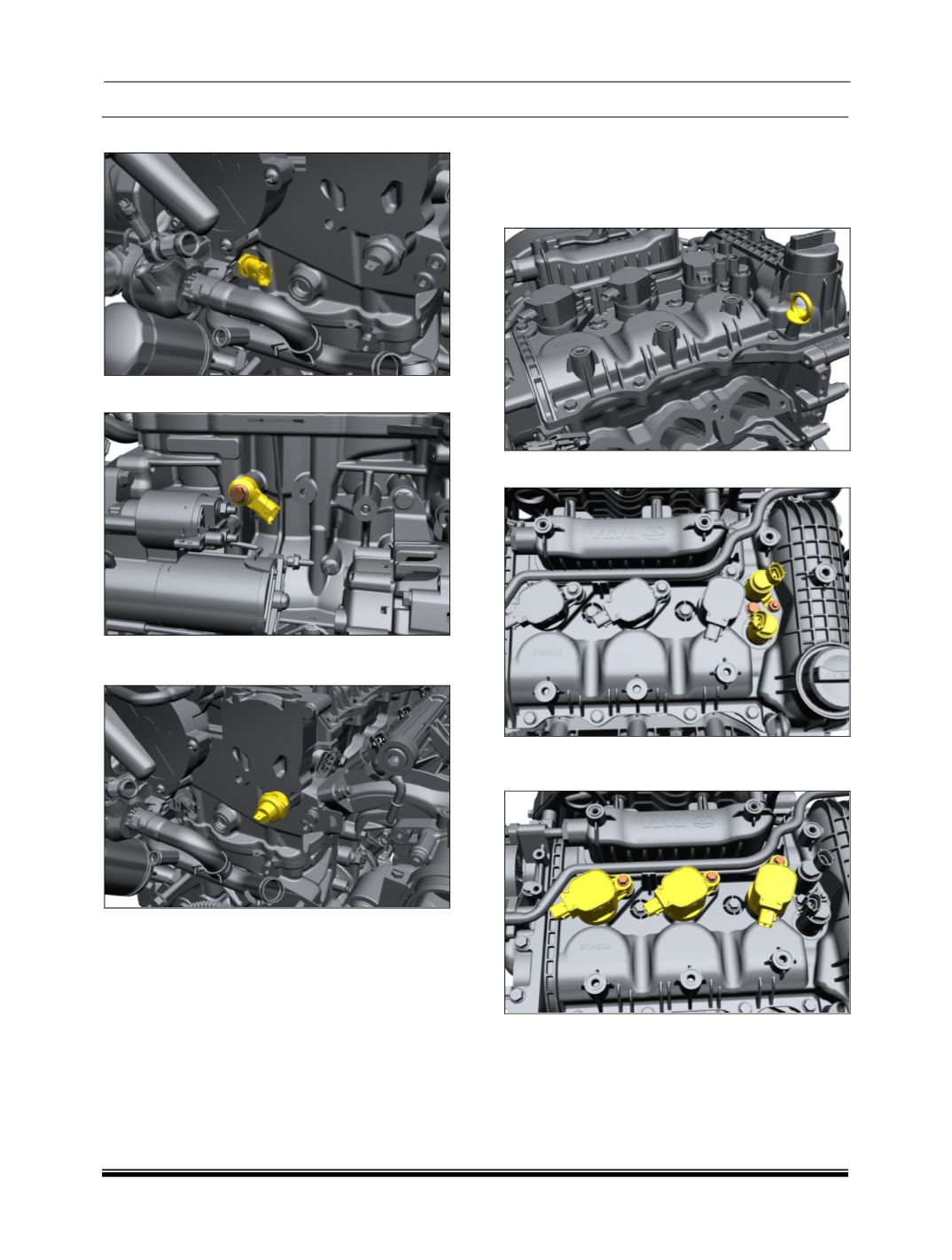

3. Remove Coolant Temperature Sensor.

4. Remove Knock Sensor from Engine Block.

5. Remove Oil Pressure Switch Sensor from

Engine Block.

V.

Removal of Accessories

1. Keep the piston at top dead center by rotating

crankshaft.

2. Remove dipstick from head cover.

3. Remove both the solenoid valve of VCT.

4. Remove ignition coil from head cover by

removing fasteners.
