1.2L REVOTRON ENGINE
121

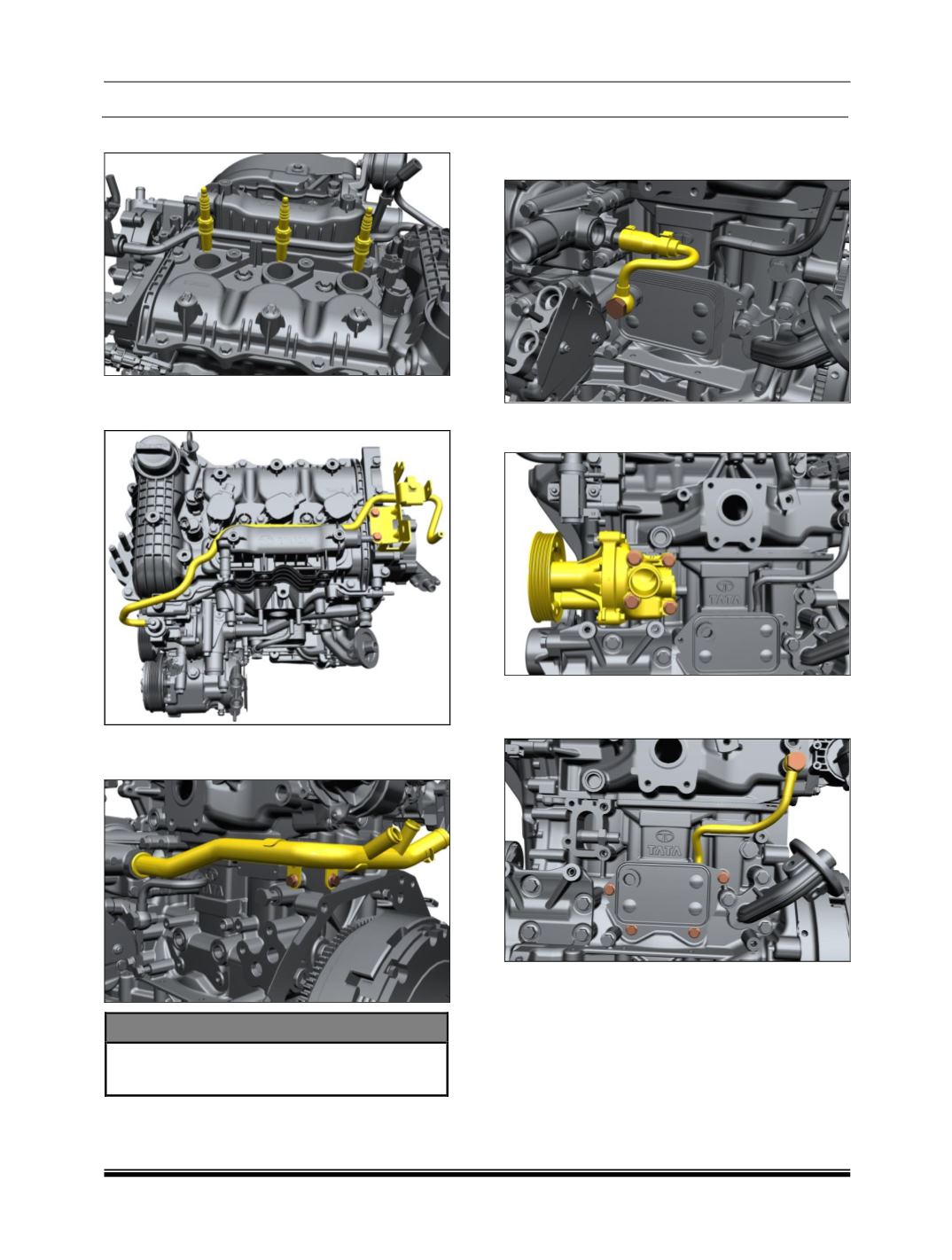

5. Remove the spark plugs.
6. Remove the EVRV hose and its support
bracket mounted on the head cover.
7. Remove the water bypass tube by removing 2
bolts and pulling out by special tool.
SPECIAL TOOL
Tool-Water pipe installation
–
5424 5890 20 02
8. Disconnect and remove the hose connecting
oil cooler inlet and water pump.
9. Remove the water pump by removing the four
fasteners.
10. Disconnect the oil cooler outlet hose and
remove the two mounting bolts to take out the
oil cooler assembly.
