BODY

19

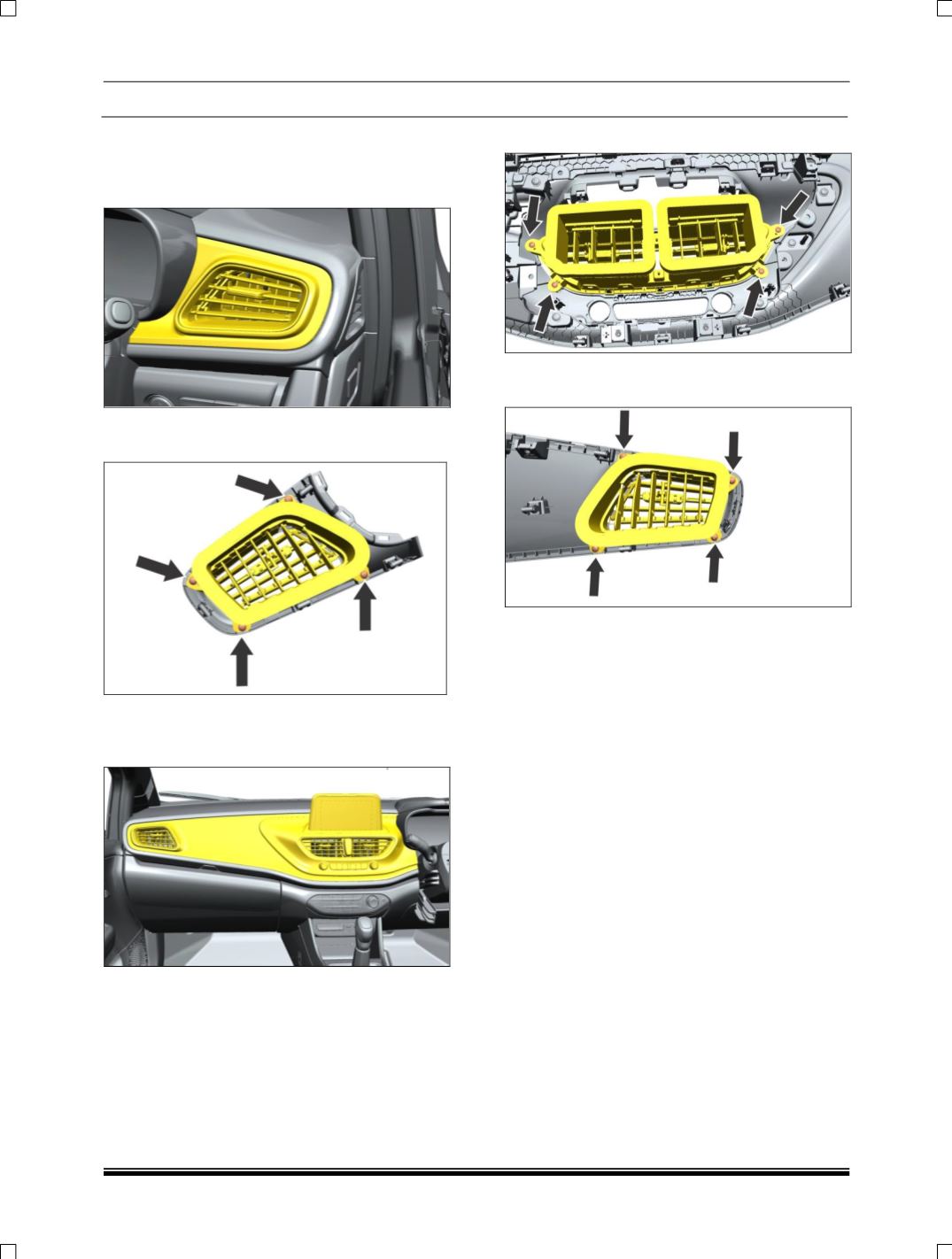

2.7 SIDE AIR VENTS

REMOVAL

1. Pull out LH side Air vent.

2. Remove mounting screws & Pull out the air

vent.

3. Remove dashboard mid panel trim. (For

procedure refer dashboard trim removal

process.)

4. Remove the mounting screw of air vent.

5. Remove mounting screws & Pull out the air

vent.

FITMENT

For fitment follow the reverse procedure of

removal.
