TRANSAXLE - TA65 Star
46
28. Stake the collar of both lock nuts on lay haft
and input shaft.
29. Check the correct positioning of shifter shaft by
moving gear shifter shaft assembly in neutral.
Assemble the speedo sensor back on the rear
housing.

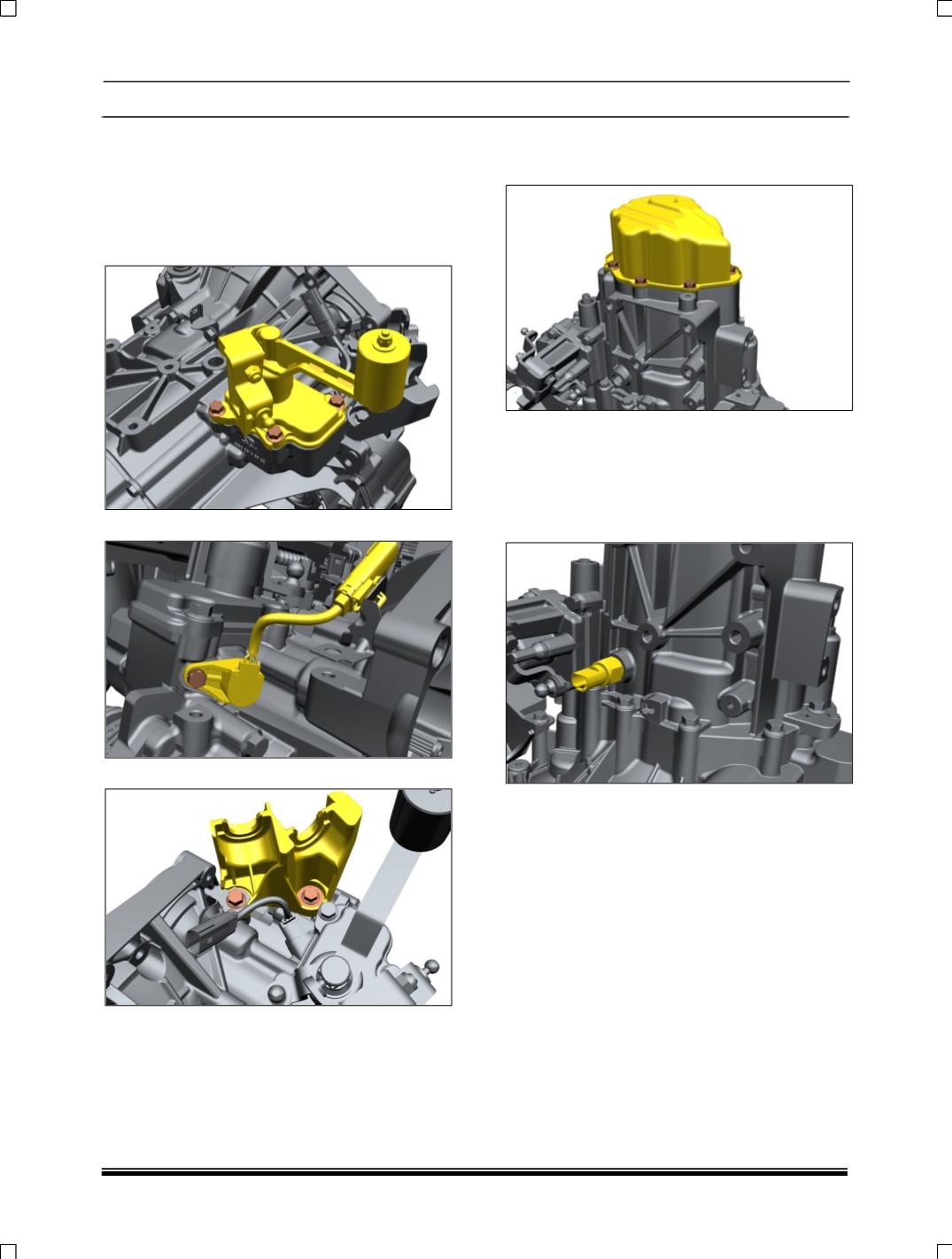

30. Fix Top Cover Asembly.
31. Fix Neutral Speed Sensor.
32. Fix Cable Anchor Bracket.
33. Place assembly rear cover with liquid gasket
on housing (rear half) and fix it by assembly
hex screws (3Nos.).
NOTE:
Clean the front half and rear half interfaces/ so
that no cured and dried liquid gasket remained are
left on the machined surfaces.
34. Unlock the input shaft from below.
35. Fix reverse light switch on housing (rear half),
36. Fix magnetic drain and filter plugs with new
washers.
37. Fix the C-mount bracket on the gear box front
housing.
38. Fix the B-mount bracket in the correct
orientation.
39. Unscrew 3 mounting bolts (M8) and dismount
the transaxle assembly from adaptor plate on
work sand.
