TRANSAXLE - TA65 Star
44

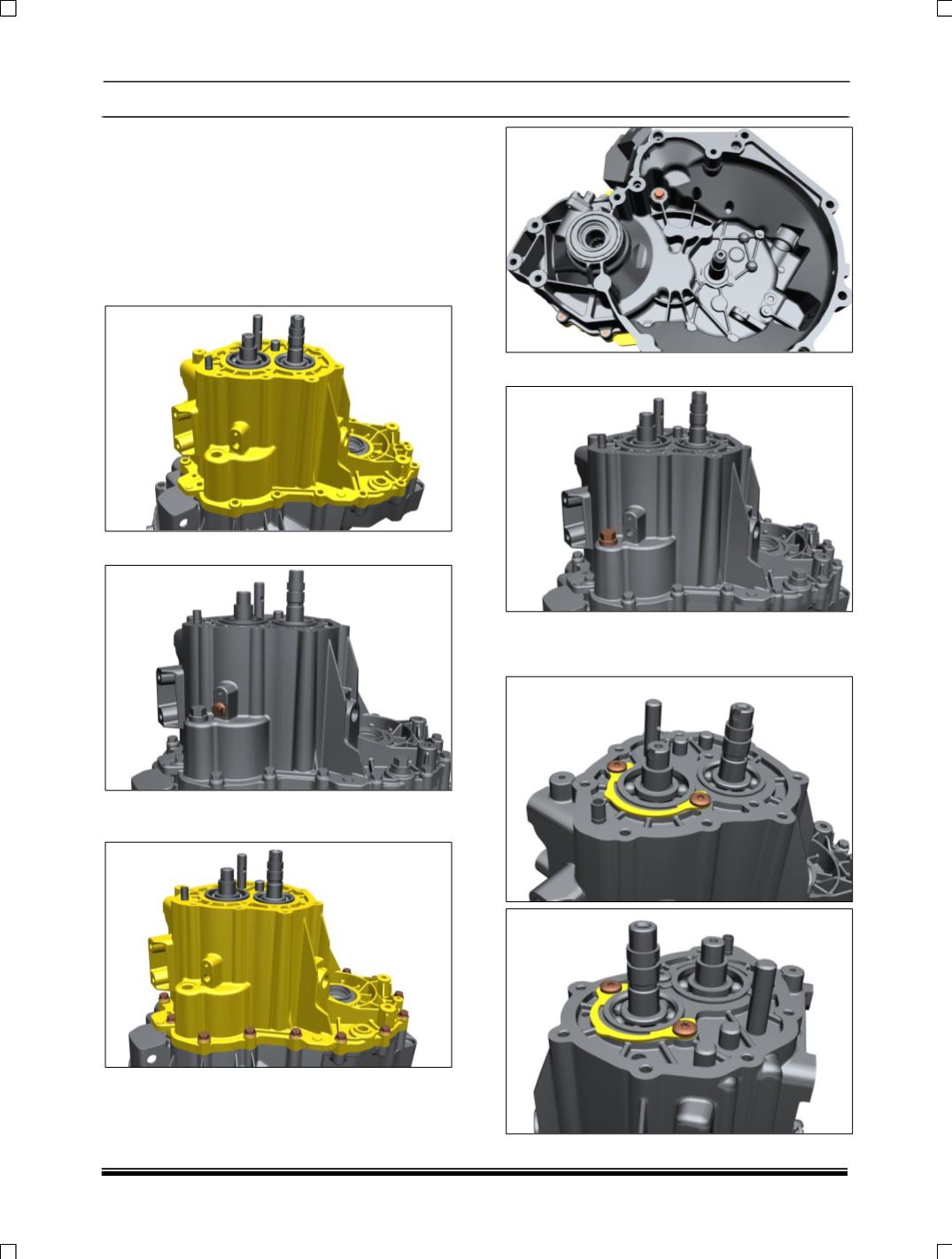

12. Ensure that all the spiral pins are pressed
properly.
13. Apply liquid gasket (Anabond 90 or 3 bond
12S00) with proper bead size on front half /
interface.
14. Assemble the housing (rear half) on lay shaft
input shaft and shifter shaft and tap it gently
and uniformly so that it gets located on lay
shaft and input shaft bearing.
15. Fix Reverse Idler shaft mounting.
16. Fix the housing (rear half) and tighten the
flanged mounting bolts to specified torque.
17. Tighten Filler Plug.
18. Place lock plates of lay shaft bearing and input
shaft bearing and fix them by allen screws. Tap
the shaft in either direction if required.
19. Place spacer on lay shaft.
