TRANSAXLE - TA65 Star
50
24. INSTRUCTION FOR ASSEMBLY /
DISASSEMBLY OF CABLE AT GEAR
BOX:

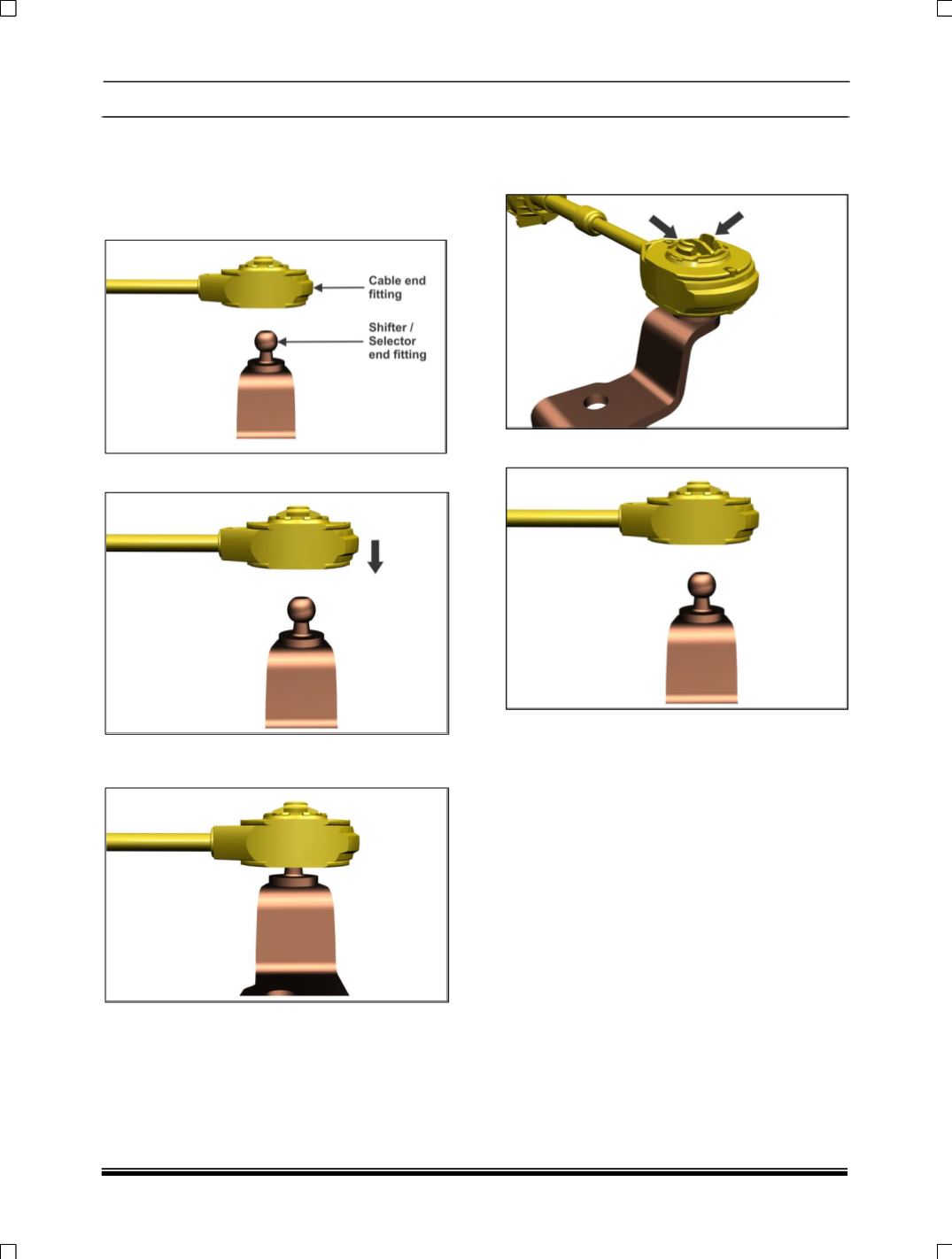

A. ASSEMBLY INSTRUCTIONS:
1.
Ready to Assemble.
2.
Push the end fitting as shown.
3.
Final assembled condition of cable end and
selector/shifter end.
B. DISASSEMBLY INSTRUCTIONS:
1. To disassemble, push/press the cable end
fittings with finger.
2. Final disassembled condition.
WARNING:
Pulling the cable end fitting without unlocking the
locking bush would bend the rod and damage the
cable assembly.
