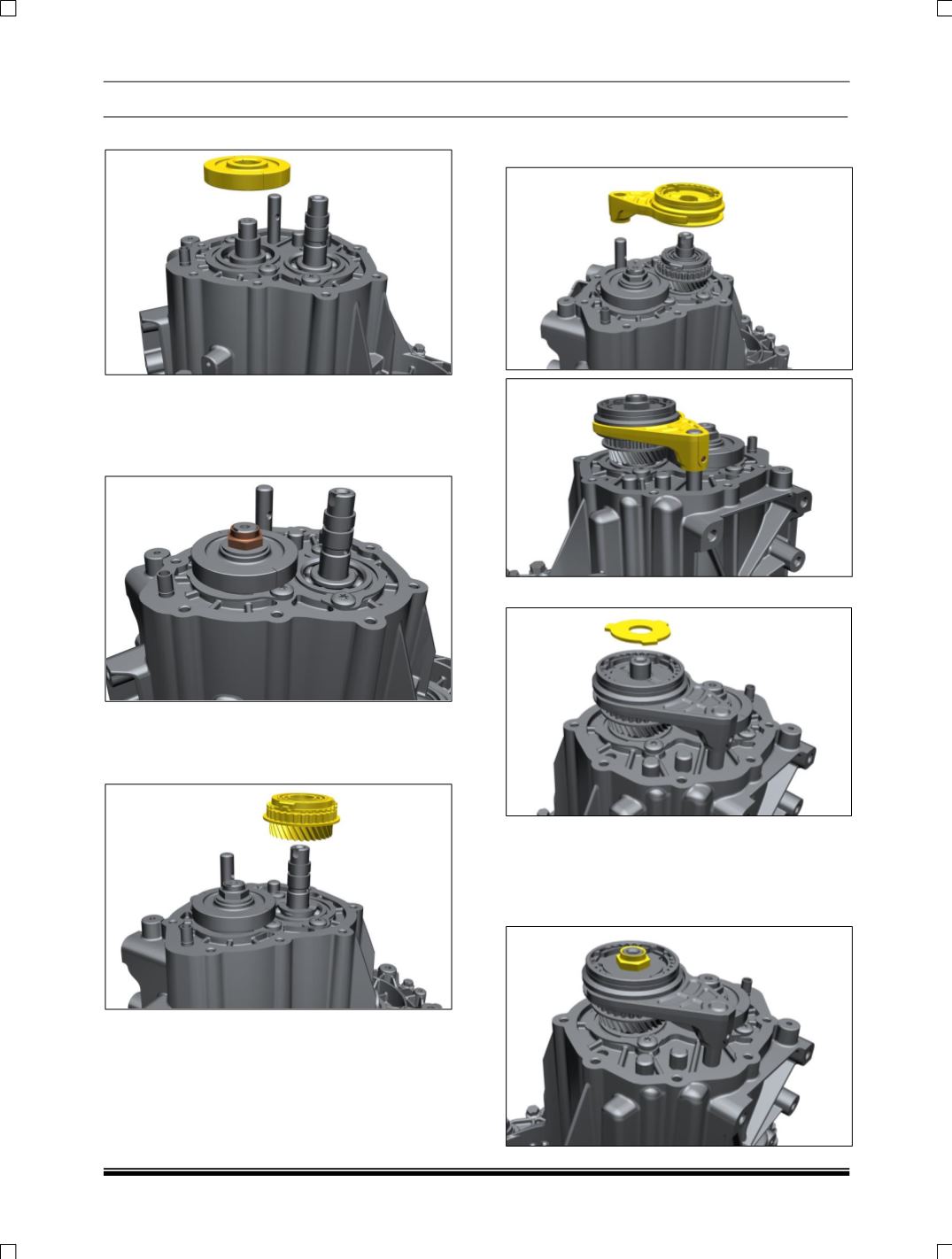

20. Put input shaft 5th gear on input shaft.
NOTE:
Ensure ground face (5th gear I/S) towards the
bearing face.
21. Put conical washer and lock nut on input shaft.
22. Place 5th gear assembly (lay shaft) with bush
and needle cage and synchro pack (5/R) along
with shifter fork (5th gear) on shifter sleeve.
Locate shaft hole on shifter fork to shifter shaft.
23. Lock the shifter fork on shifter shaft by spiral
pin.
24. Place lock plate on lay shaft 5th gear assembly
25. Fix lock nut on lay shaft.
26. Lock the input shaft from below. Engage any
one of the gears.
27. Tighten the lock nuts on both lay shaft and
input shaft by giving torque of 12.3-16.7 mkg.
