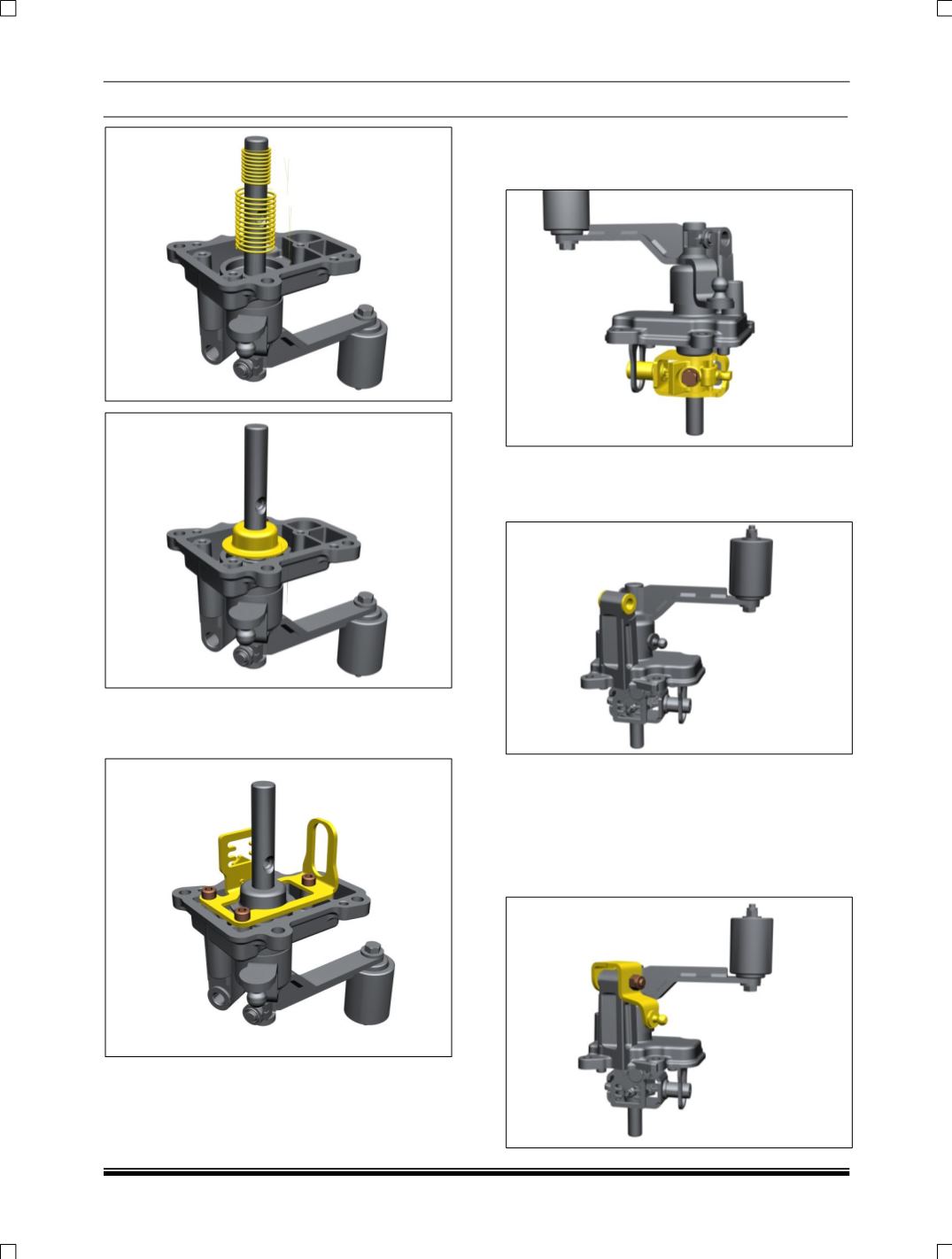

3. Compress both the springs and put the cup
above it and tighten with M8 bolts with cup
holding plate.
4. Apply Anabond 112 TS: 25408 on threads of
all fasteners for top cover assembly.
5. Move the interlock piece along with barrel,
spring and central detent and finger (selection
and shifting).
6. Lock the assembly by tightening the cross pin
(shifter/ Selector finger).
7. Insert the Bush into the top cover assembly.
8. Place the bellow over the selector shifter shaft
and insert the bell crank lever over the shaft
notch in such a way that it exactly sits over the
bush.
9. Insert the M12 bolt and tighten the bell crank
lever over top cover assembly to a specified
torque.
