TRANSAXLE - TA65 Star
43

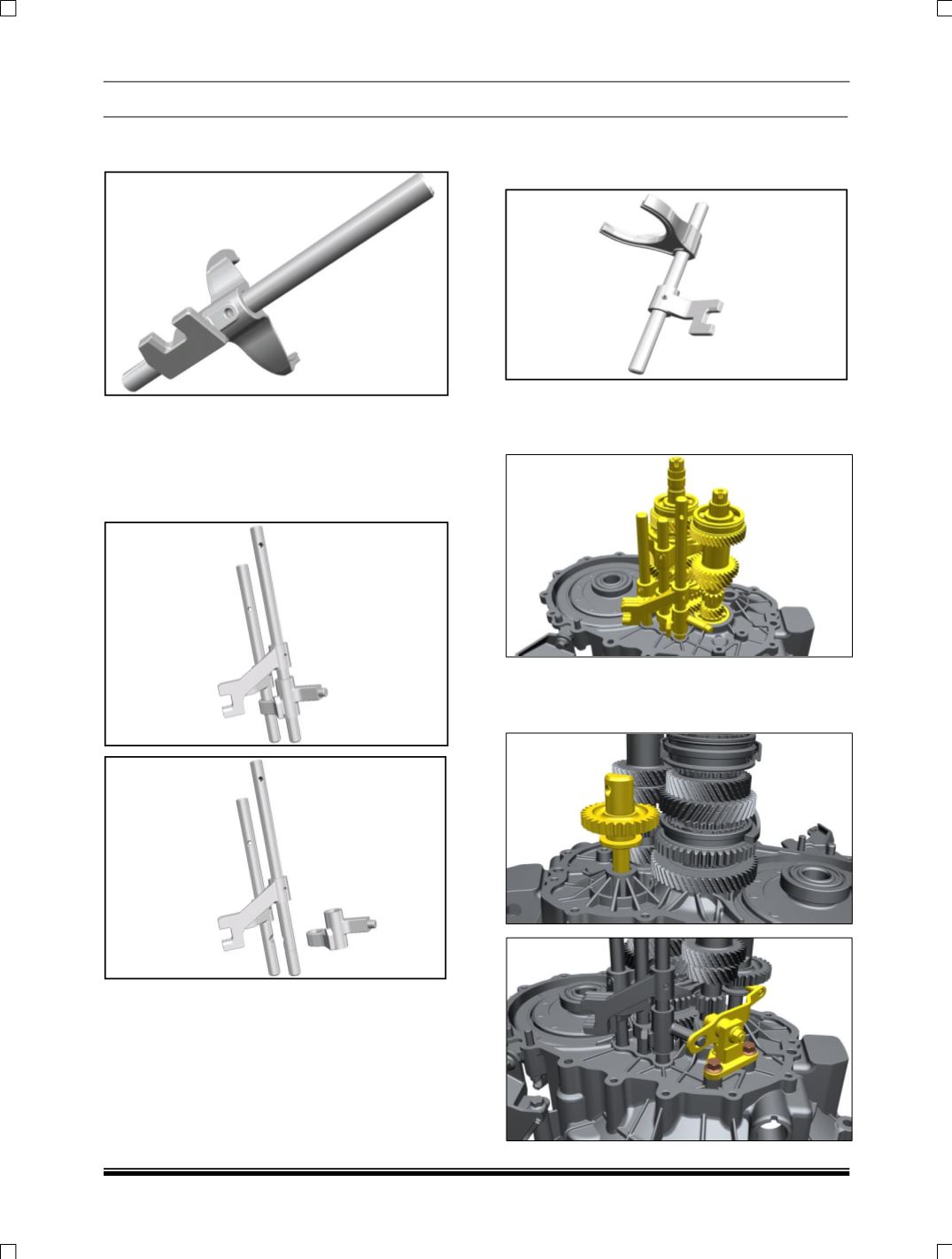

6. Fix the shifter shaft to the shifter fork of first
and Second gear and lock it by dowel pin.
7. Insert the third and fourth, fifth and reverse
shifter Shaft after locking by interlock balls and
with Shifter dogs fitted.
8. Insert the third and fourth, fifth and reverse
shifter Shaft after locking by interlock balls and
with Shifter dogs fitted.
9. Place the 3/4 shifter fork on the 3/4 shifter
Shaft in such a way that it sits properly on the
3/4 shifter dog and lock it by dowel pin.
10. Place the lay shaft assembly and input shaft
assembly together along with shifter rail
assembly.
11. Fix the reverse gear assembly on the rear
housing half into the seat of reverse idler gear.
Also fix the reverse lever bracket.
