1.5L REVOTORQ ENGINE
90
7.
ENGINE
ON
VEHICLE
SERVICE
PROCEDURE

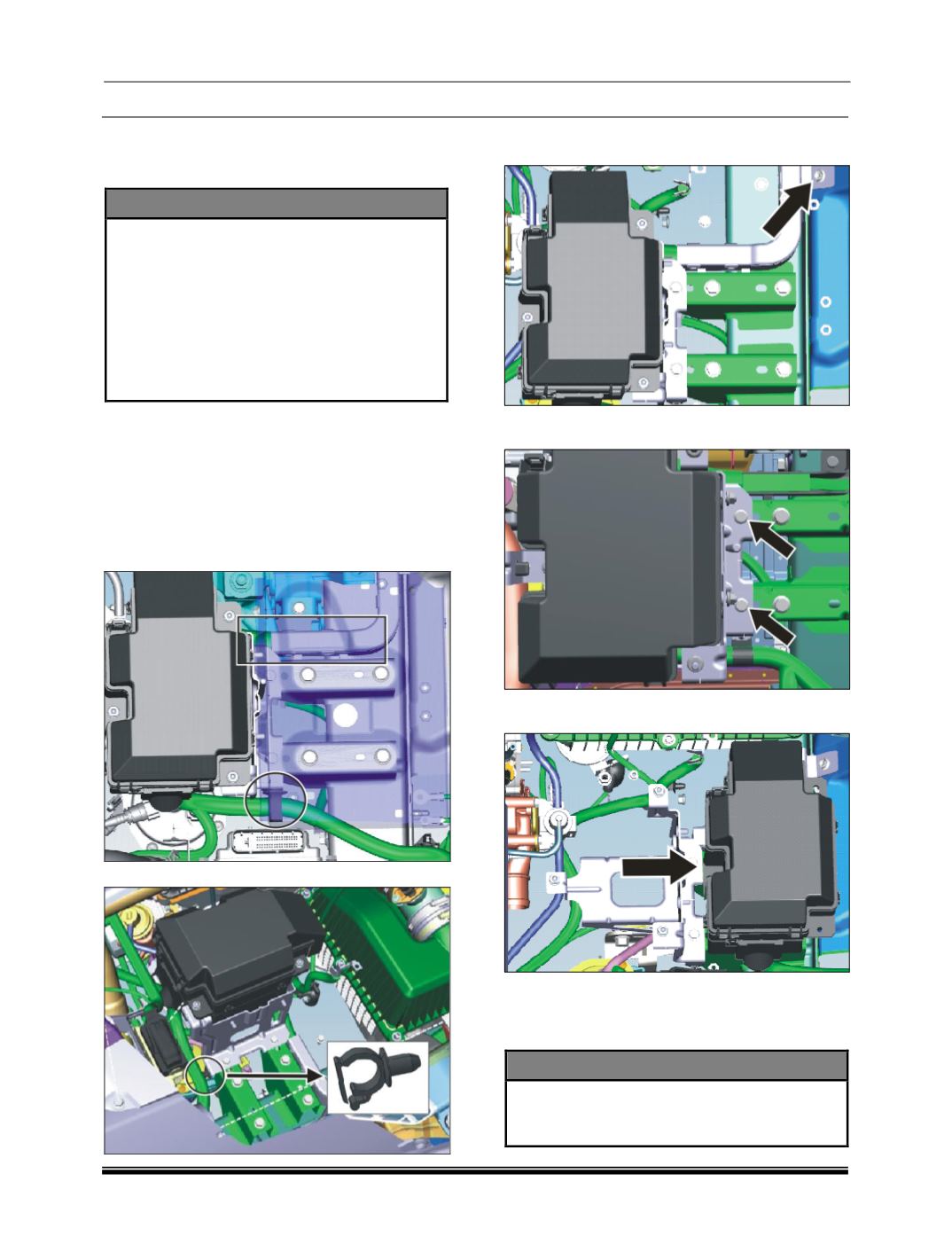

A. FUSE BOX SHIFTING PROCEDURE:
NOTE
Fuse box shifting is necessary while doing
following work on vehicle
Coolant temperature sensor
Thermostat
EVRV
Vacuum pump
Replacement of Bare engine / Half block/
Cylinder head / Engine Overhauling
.
1. Open the hood (bonnet) of the vehicle.
2. Disconnect the negative (-) cable and then
the positive (+) cable from the engine.
3. Remove battery & battery tray (refer battery
& battery tray removal procedure from
electrical chapter).
4. Loosen the fuse box entry & exist wiring
harness before Fuse box removal.
5. Remove wiring harness from clip.
6. Remove plastic Channel bolt & slide channel
towards rear for removal.
7. Remove fuse box mounting bracket
fasteners.
8. Lift the Fuse Box Assembly and place at
Battery tray location.
FITMENT
For fitment follow the removal procedure in
reverse.
NOTE
After service wiring harness fitment to be
done as per production layout. Clips &
channels to be fitted properly.
