581 / 1265
TRANSAXLE TA6300
26

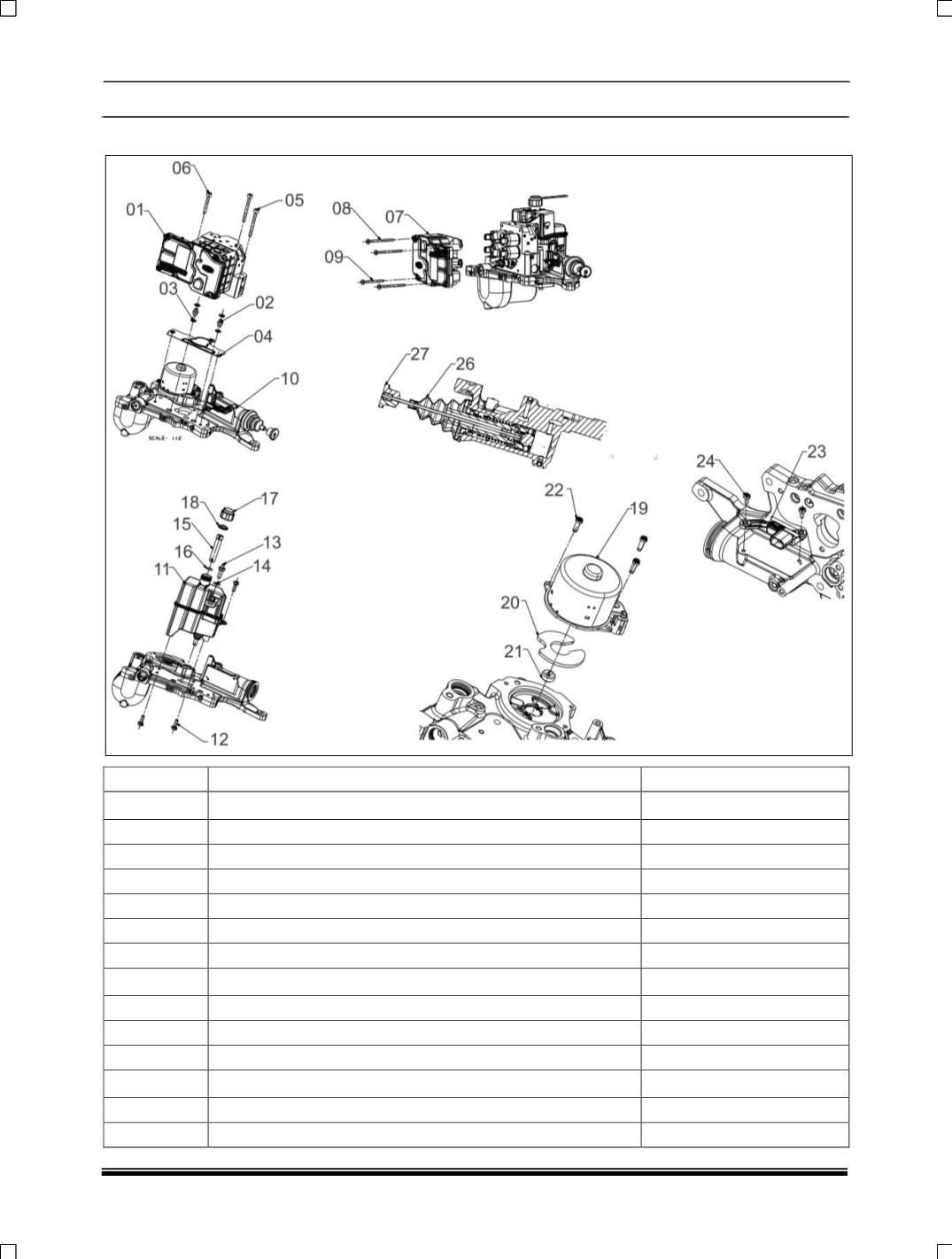

EXPLODED VIEW OF LAY SHAFT AND INPUT SHAFT:
SR. NO.
DESCRIPTION
TORQUE (Kg-m)
KIT-01
GEAR ACTUACTOR UNIT GEAR ACTUATOR
01
MECHATRONIC GEAR ACTUATOR
02
CONNECTOR
03
GASKET O-RING
04
GASKET FLAT PROFILE
05
SCREW M6X63 FOR MGA/PWU
10 ± 1
06
SCREW M6X45,5 FOR MGA/PWU
10 ± 1
KIT-02
CONTROL BOX ASSY CONTROL UNIT
07
TRANSMISSION CONTROL UNIT
08
SCREW M5X68 FOR TCU
6 ± 1.2
09
SCREW M5X55 FOR TCU
6 ± 1.2
KIT-03
BASE PLATE ASSY
02
CONNECTOR
03
GASKET O-RING
