TOD

24

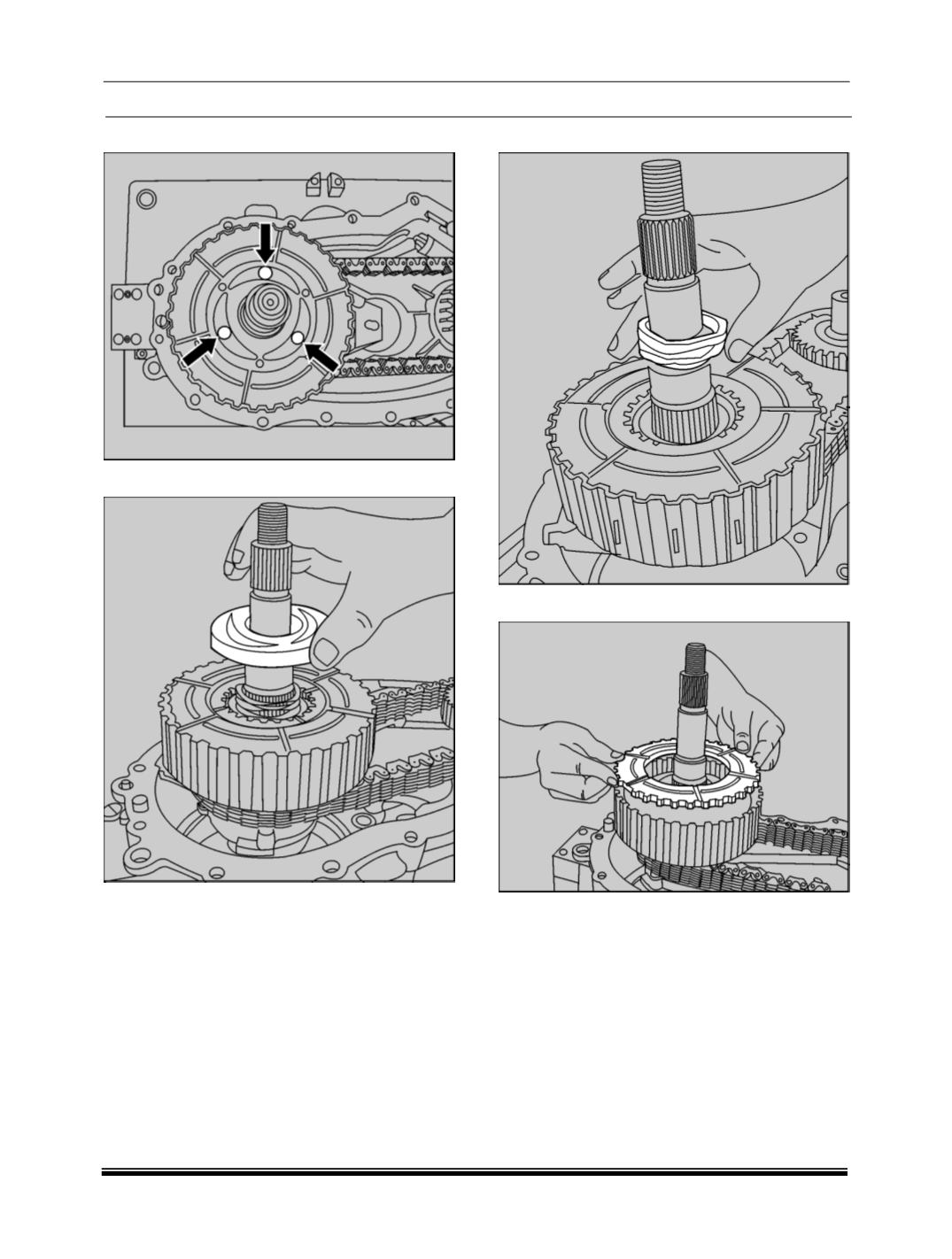

3. Remove three balls from the ramp plate

(cam)

.

4. Remove ramp plate

(Cam)

.

5. Remove wave spring.

6. Remove armature plate.
