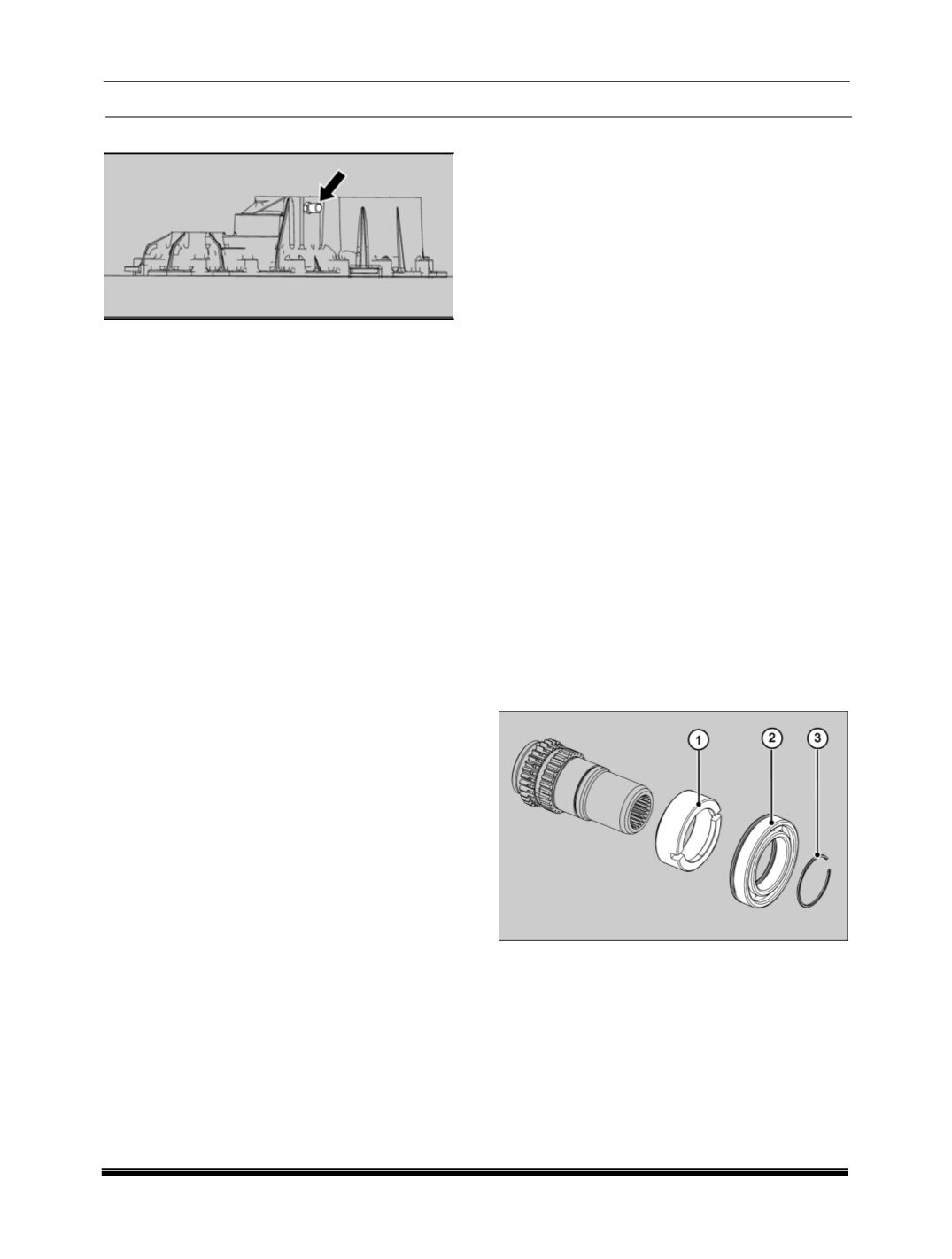

7. Remove the breather from the case.

8.10 INSPECTION AND CLEANING

INSPECTION

1. Visually check all the parts for damage.

2. Referring to normal gear tooth face, specifically

inspect the uneven wear and chips of gear

tooth. Replace if necessary.

NOTE

Always replace the hose coupling and oil seals

with new parts.

CLEANING

NOTE

Before cleaning, check the magnet for the

presence of metal particles which indicate internal

chipping of the transfer case.

1. Using a cleaning solvent, clean the old oil and

dirt deposits

2. After cleaning dry the parts with low pressure

(20 PSI maximum)

compressed air.

3. Lubricate the ball bearings and needle bearing

with specified oil. Protect lubricated bearings

from dust.

8.10 ASSEMBLY

A. ADAPTER AND INPUT SHAFT

1. Insert spacer onto the input shaft

(1)

and press

the bearing

(2)

, install the snap ring

(3)
