TOD

23

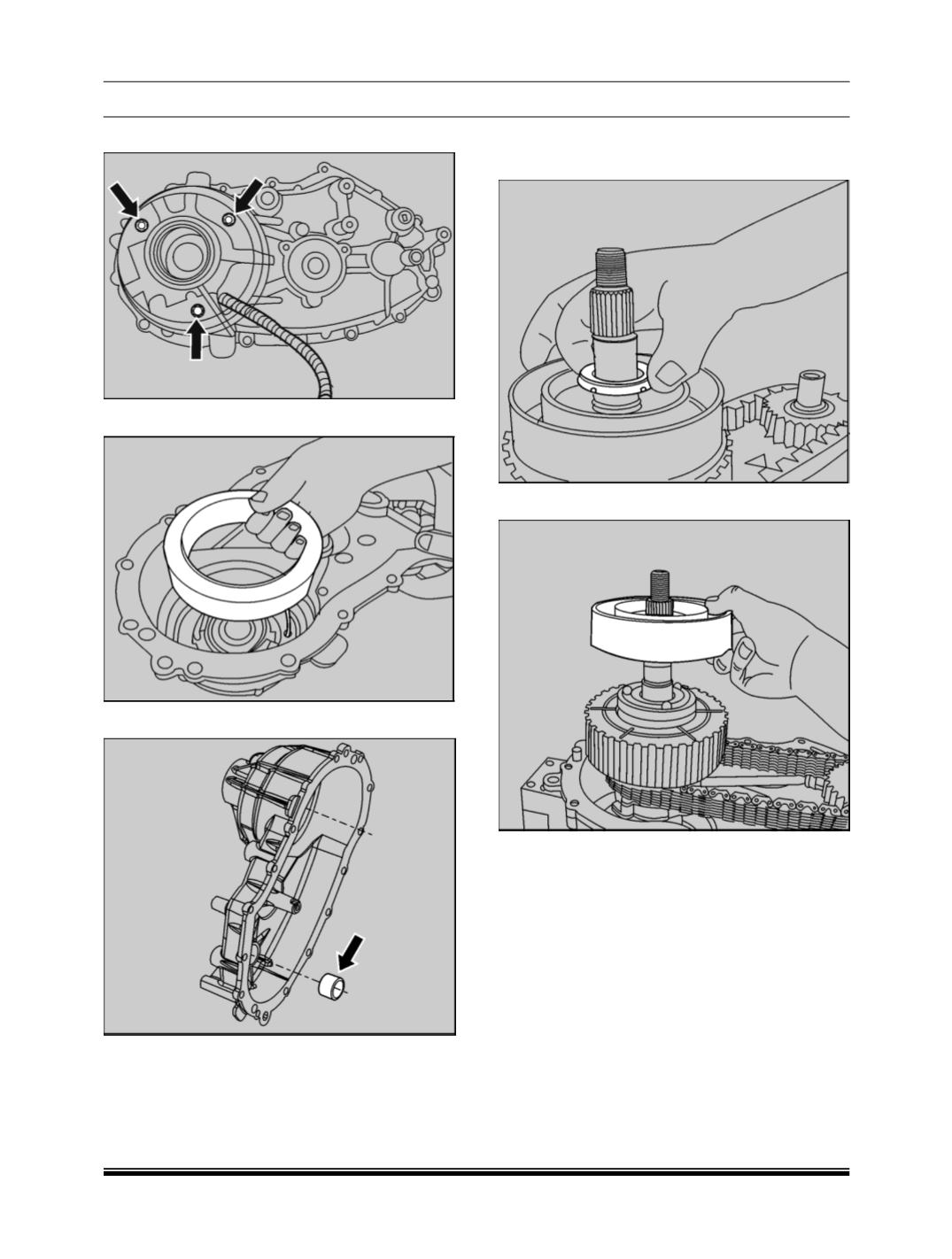

8. Loosen and remove three nuts.

9. Remove clutch coil from the cover.

10.Pull out the needle bearing from the cover.

11.Scrape clean and remove the sealant of the

cover and case. Be careful not to damage the

metal surface.

C. CLUTCH PACK ASSEMBLY

1. Remove thrust bearing.

2. Remove clutch housing from output shaft.
