HEXA

TRANSMISSION

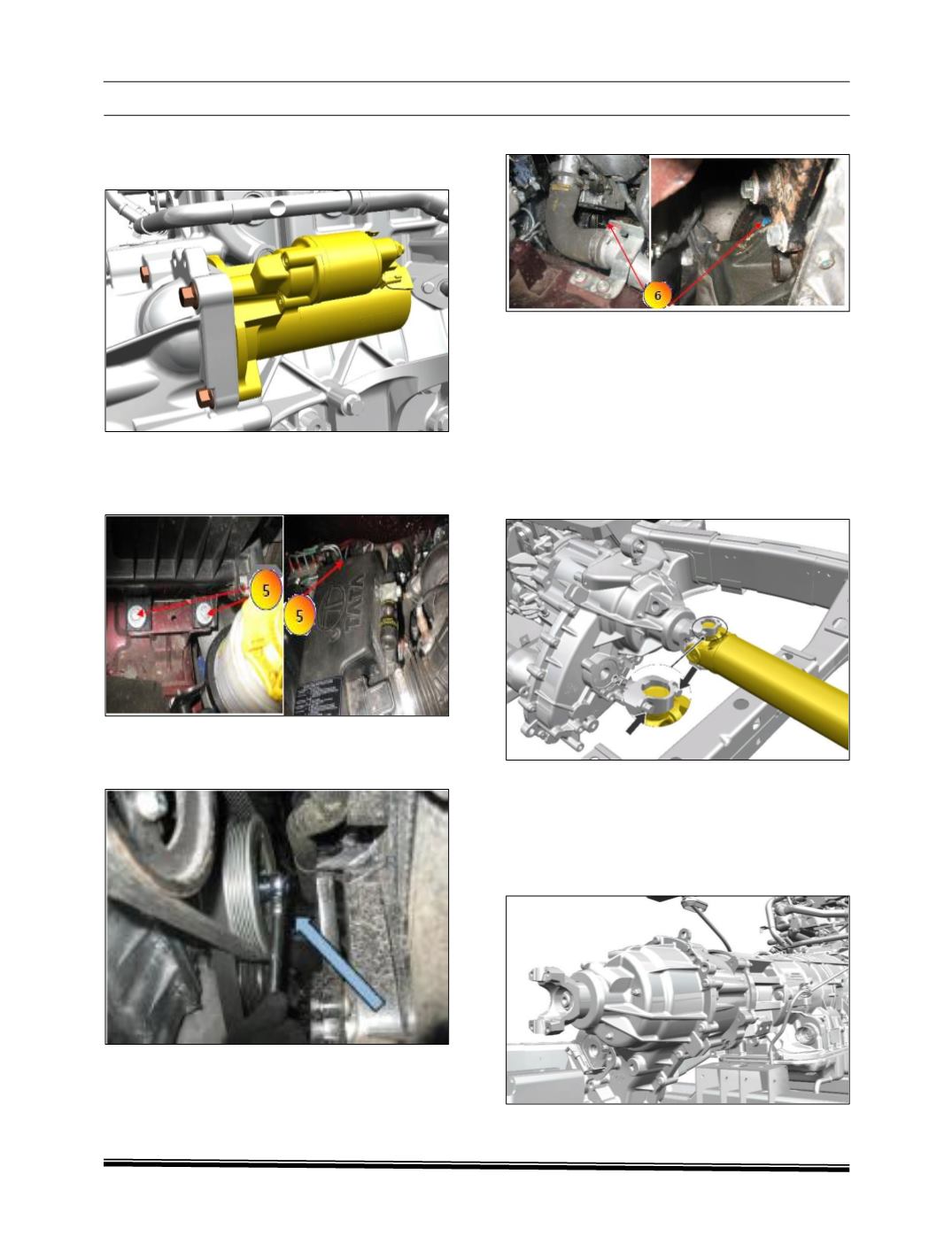

11. Loosen the 3 starter motor screws by using

an H14 wrench and remove the starter motor

with its cover.

12. Let the vehicle down to access to the air filter.

13. Loosen the screws (5) and remove the air

filter assembly.

14. Turn the crank pulley using a H19 wrench

CLOCKWISE ONLY until the first screw is

visible in starter hole.

15. Loosen the screw (6) by using a H14 wrench.

16. Repeat the operation for each of the 6 screws

and discard the screws.

17. Before moving last bolt, push it slightly to

loose converter from flex plate and move

converter backward in transmission.

18. Lift the vehicle to access to the transmission.

19. Loosen the screws by usingH8 wrench and

remove the front propeller shaft from transfer

box.

20. Loosen the screws by using H8 wrench and

remove the rear propeller shaft from transfer

box.

21. Using a H9 wrench, turn the selector shaft out

of park to allow propeller shaft turning and

access to the other propeller shaft screws.
