C. COMPRESSOR

REMOVAL

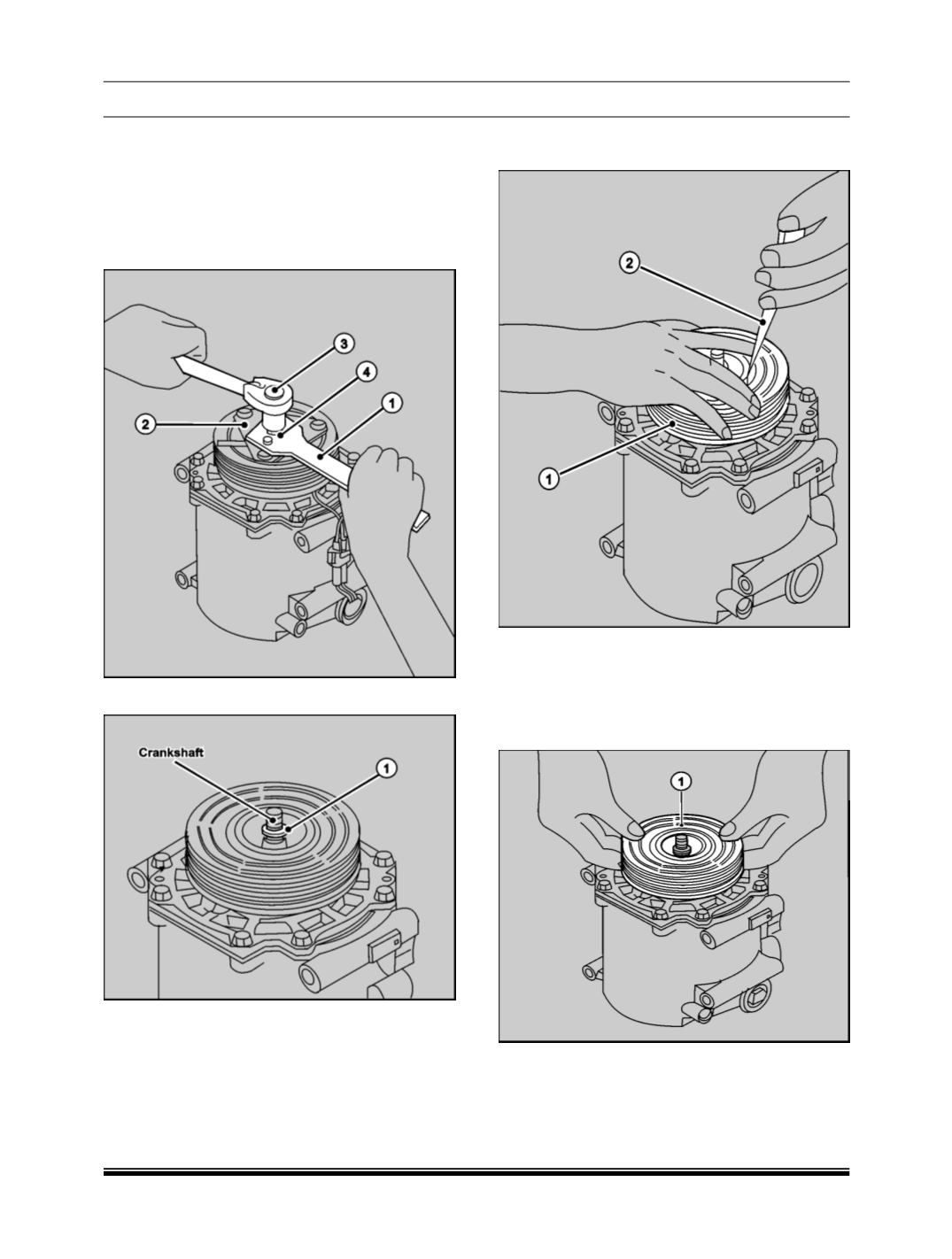

1. Install the armature plate fixing tool

(1)

to the ar-

mature plate

(2),

set the socket

(3) (14mm)

to the

self-lock nut

(4),

and remove the self-lock nut and

then remove the armature plate.

Remove the shim

(1).

3. Remove the snap ring on the front housing side

of the rotor

(1)

using the snap ring pliers

(2).

WARNING

Care should be taken while removing the shim by

preventing it from jumping out; otherwise it may

cause serious injuries.

4. Remove the rotor

(1).
