413 / 1236
TRANSFER CASE
25
TANSFER CASE

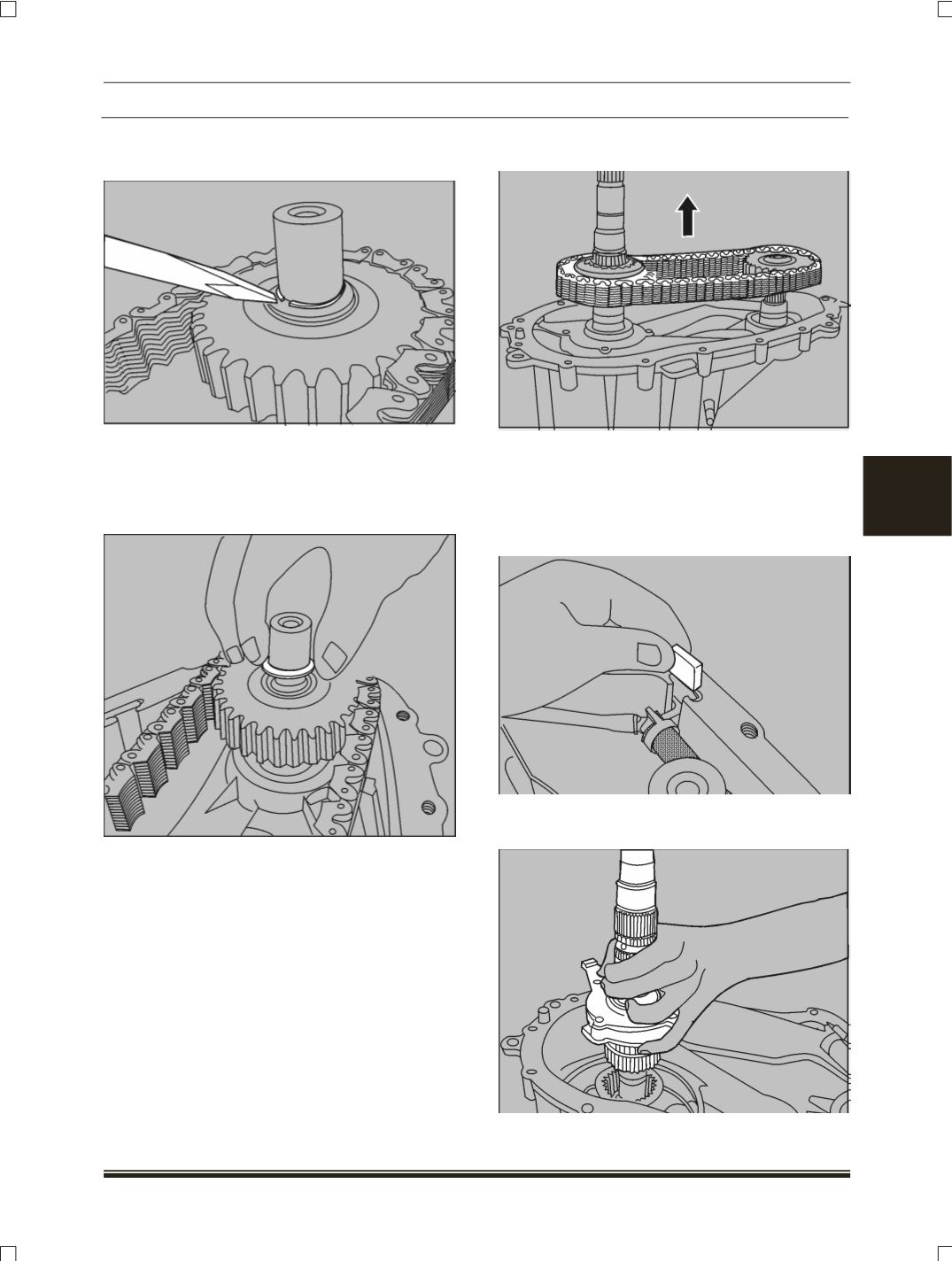

D. CHAIN DRIVE
1. Remove snap ring from the output shaft.
NOTE
After removal discard the snap ring and use new at
the time of assembly.
2. Remove spacer from the output shaft.
3. Remove drive chain, along with drive and
driven sprocket from the output shaft.
4. Separate the chain and sprocket when
removing the assembly.
E. GEROTOR PUMP
1. Remove the magnet from the slot in the case
and take out the oil strainer from the case.
2. Remove assembly output shaft along with
Gerotor pump.
